The Forkardt KCH series of power chucks are a high precision, wedge-hook design that is ideal for finishing and tight tolerance processes. The completely sealed chuck assures long life with minimal maintenance and lasting accuracy when used in hard turning and grinding applications. Several standard variations are available with features that include:

• TIR repeatability in the 2 micron range

• Front actuated models for grinding machines

• High Speed model with aluminum body (KCHS) for hard turning

• Internal and external clamping

• Integrated ball positioning system — quick change without adjustment

• Specialized compensating and pull-back models

ITW Workholding offers an extensive line of Sheffer performance I.D. and O.D. Collet Chucks. These Sheffer engineered chucks can be designed to fit nearly any application — from roughing

to grinding to stationary machine center work. Features include:

• Quick Change

• High Accuracy

• Interchangeability

• High Speed

• Master Inserts

• High Travel

• Self Contained Actuation

• Standard and Custom Designs

ITW Workholding's Soft-Touch Chucking system is designed as a Workholding solution for fragile and delicate parts. This chuck's unique design enables distortion-free Workholding

while increasing part rigidity during operation.

• Stationary and Rotary Applications

• Lightweight Design •Adjustable Clamping Pressure

• Conforms to Part's Natural Contour

• Hydraulically Actuated

• Ideal for use in the Aerospace Industry

Forkardt offers a complete line of indexing chucks aimed at reducing your multi-axis part turning to a single operation. Created for parts such as universal joints, fittings and valves, the index chuck reduces both the number of operations and amount of invested capital. Hydraulic control packages and machine integration is also available.

• HSR - Standard two jaw console chuck

Index positions of 4 x 90°, 8 x 45°, 3 x 120°, 2 x 180° (

• HSFJ - same as HSR with force compensation and position control

• HSK - Two jaw indexing chuck with auxiliary index position

• ZHSR - Self-centering two-jaw indexing chuck

Indexes of 4 x 90° and 2 x 180° for parts requiring equal wall thickness

• ZS - Self-centering six-jaw indexing chuck

Index position of 2 x 180° ideal for pipe couplings

• HSS - Two jaw console chuck 0 1,000mm - 2,000mm

6 x 60°, pre-selected index positions (worm gear drive) Valve bodies, pump housings, power station valves

• HC Semi-automatic two jaw console chuck (manual clamping)

Indexes of 4 x 90° and 2 x 180° for low volume parts

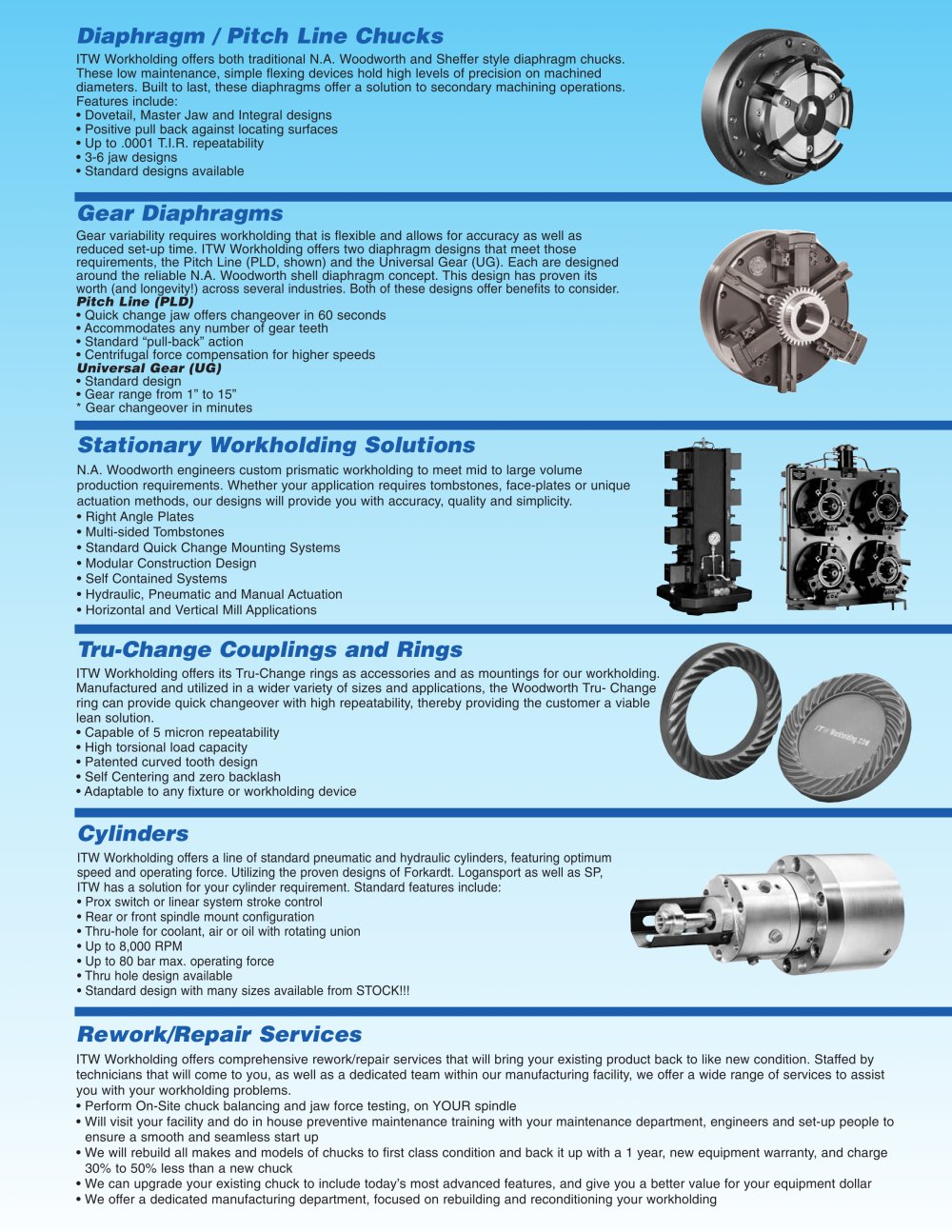

N.A. Woodworth engineers custom prismatic workholding to meet mid to large volume

production requirements. Whether your application requires tombstones, face-plates or unique actuation methods, our designs will provide you with accuracy, quality and simplicity.

• Right Angle Plates

• Multi-sided Tombstones

• Standard Quick Change Mounting Systems

• Modular Construction Design

• Self Contained Systems

• Hydraulic, Pneumatic and Manual Actuation

• Horizontal and Vertical Mill Applications

ITW offers a line of standard hydraulic cylinders, featuring optimum speed and operating force. Standard features include:

• Through-hole for coolant, oil or air with rotating union

• Rear or front side spindle mount configuration

• Prox switch or linear system stroke control

Technical features:

• Up to 8,000 RPM

• Up to 80 Bar Max Operating Force
