N.A. Woodworth Gear Chucks (Quick Change)
2Pages

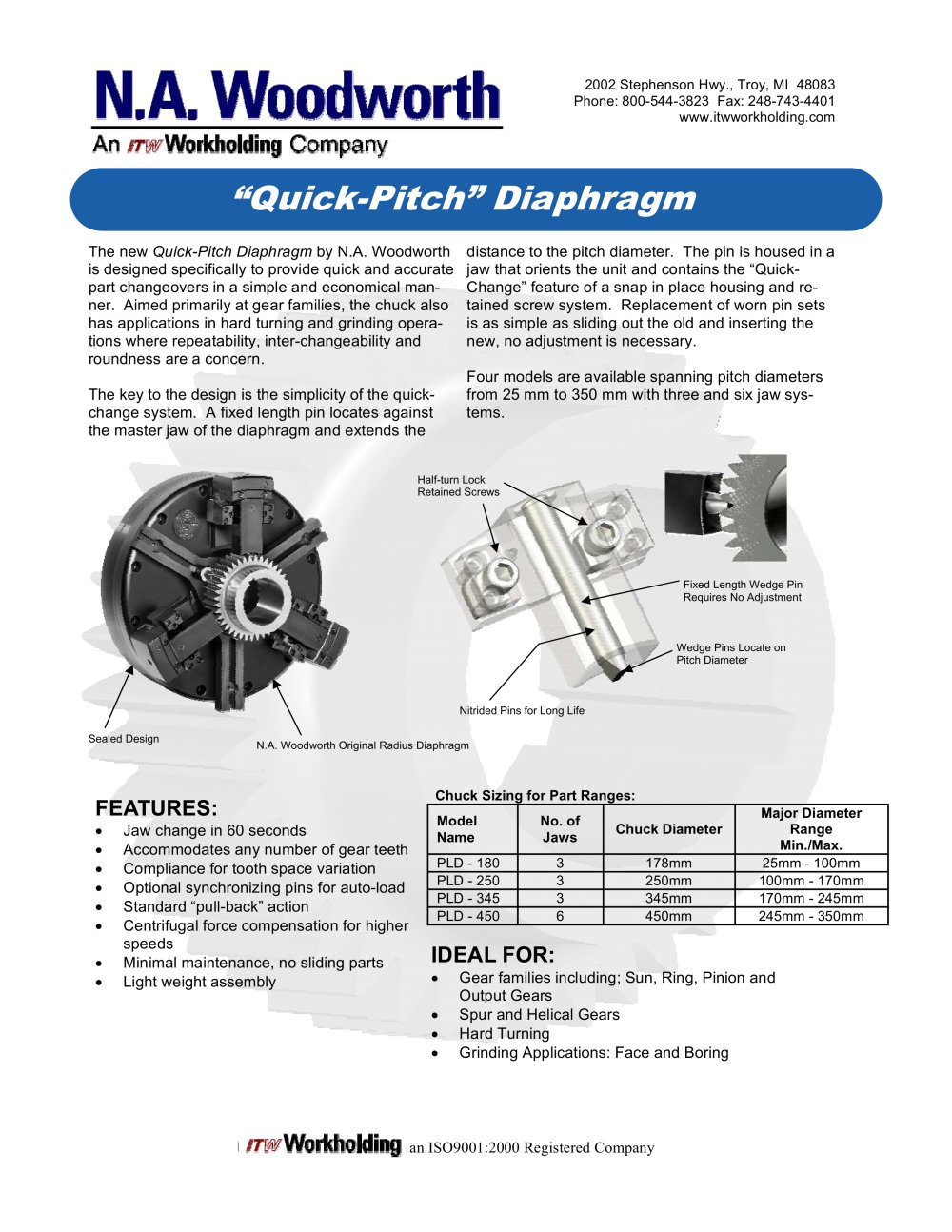

2002 Stephenson Hwy., Troy, MI 48083 Phone: 800-544-3823 Fax: 248-743-4401 www.itwworkholding.com “Quick-Pitch” Diaphragm The new Quick-Pitch Diaphragm by N.A. Woodworth is designed specifically to provide quick and accurate part changeovers in a simple and economical manner. Aimed primarily at gear families, the chuck also has applications in hard turning and grinding operations where repeatability, inter-changeability and roundness are a concern. The key to the design is the simplicity of the quickchange system. A fixed length pin locates against the master jaw of the diaphragm and extends the distance to the pitch diameter. The pin is housed in a jaw that orients the unit and contains the “Quick- Change” feature of a snap in place housing and retained screw system. Replacement of worn pin sets is as simple as sliding out the old and inserting the new, no adjustment is necessary. Four models are available spanning pitch diameters from 25 mm to 350 mm with three and six jaw systems. FEATURES: • Jaw change in 60 seconds • Accommodates any number of gear teeth • Compliance for tooth space variation • Optional synchronizing pins for auto-load • Standard “pull-back” action • Centrifugal force compensation for higher speeds • Minimal maintenance, no sliding parts • Light weight assembly IDEAL FOR: • Gear families including; Sun, Ring, Pinion and Output Gears • Spur and Helical Gears • Hard Turning • Grinding Applications: Face and Boring Half-turn Lock Retained Screws Fixed Length Wedge Pin Requires No Adjustment Chuck Sizing for Part Ranges: Model Name No. of Jaws Chuck Diameter Major Diameter Range Min./Max. PLD - 180 3 178mm 25mm - 100mm PLD - 250 3 250mm 100mm - 170mm PLD - 345 3 345mm 170mm - 245mm PLD - 450 6 450mm 245mm - 350mm Nitrided Pins for Long Life Wedge Pins Locate on Pitch Diameter N.A. Woodworth Original Radius Diaphragm an ISO9001:2000 Registered Company Sealed Design

© 2006 ITW Workholding, errors and omissions excepted. ITW Workholding Group is a division of Illinois Tool Works Inc. W O R K H O L D I N G W O R L D W I D E L O C A T I O N S
