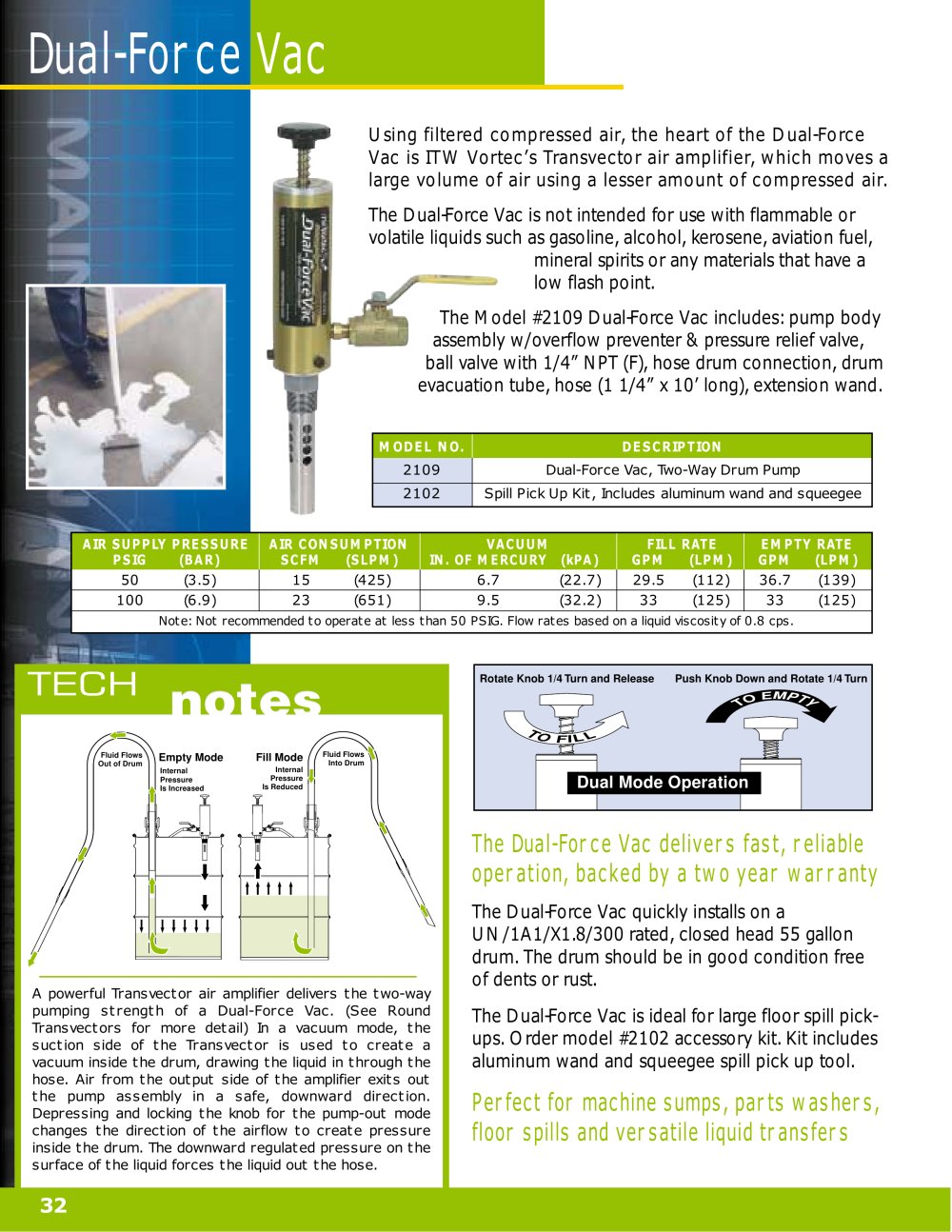

| Dual-Force | ||||||||||||||||||||||||||||||||||
| Using filtered compressed air, the heart of the Dual-Force Vac is ITW Vortec's Transvector air amplifier, which moves a large volume of air using a lesser amount of compressed air. The Dual-Force Vac is not intended for use with flammable or volatile liquids such as gasoline, alcohol, kerosene, aviation fuel, mineral spirits or any materials that have a low flash point. The Model #2109 Dual-Force Vac includes: pump body assembly w/overflow preventer & pressure relief valve, ball valve with 1/4" NPT (F), hose drum connection, drum evacuation tube, hose (1 1/4" x 10' long), extension wand. | ||||||||||||||||||||||||||||||||||
| DESCRIPTION Dual-Force Vac, Two-Way Drum Pump | ||||||||||||||||||||||||||||||||||
| Spill Pick Up Kit, Includes aluminum wand and squeegee | ||||||||||||||||||||||||||||||||||
| FILL RATE | ||||||||||||||||||||||||||||||||||
| 29.5 (112) | 3p.7 (139) | |||||||||||||||||||||||||||||||||
| (1 25) | ||||||||||||||||||||||||||||||||||
| 33 | (125) | 33 | ||||||||||||||||||||||||||||||||
| Not e: Not recommended t o ope rat e at les s than 5 0 PS IG. Flow rat es bas ed on a liquid vis cos it y of 0.8 cps . | ||||||||||||||||||||||||||||||||||
| Rotate Knob 1/4 Turn and Release Push Knob Down and Rotate 1/4 Turn | ||||||||||||||||||||||||||||||||||
| r ~l | ||||||||||||||||||||||||||||||||||
| Dual Mode Operation | ||||||||||||||||||||||||||||||||||
| The Dual-Force Vac delivers fast, reliable operation, backed by a two year warranty The Dual-Force Vac quickly installs on a UN/1A1/X1.8/300 rated, closed head 55 gallon drum. The drum should be in good condition free of dents or rust. The Dual-Force Vac is ideal for large floor spill pickups. Order model #2102 accessory kit. Kit includes aluminum wand and squeegee spill pick up tool. Perfect for machine sumps, parts washers, floor spills and versatile liquid transfers | ||||||||||||||||||||||||||||||||||
| A powerful Trans vector air amplifier delivers the two-way pumping strength of a Dual-Force Vac. (See Round Trans vectors for more detail) In a vacuum mode, the suction side of the Transvector is used to create a vacuum inside the drum, drawing the liquid in through the hose. Air from the output side of the amplifier exits out the pump as s embly in a s afe, downward direction. Depressing and locking the knob for the pump-out mode changes the direction of the airflow to create pressure inside the drum. The downward regulated pressure on the surface of the liquid forces the liquid out the hose. | ||||||||||||||||||||||||||||||||||
