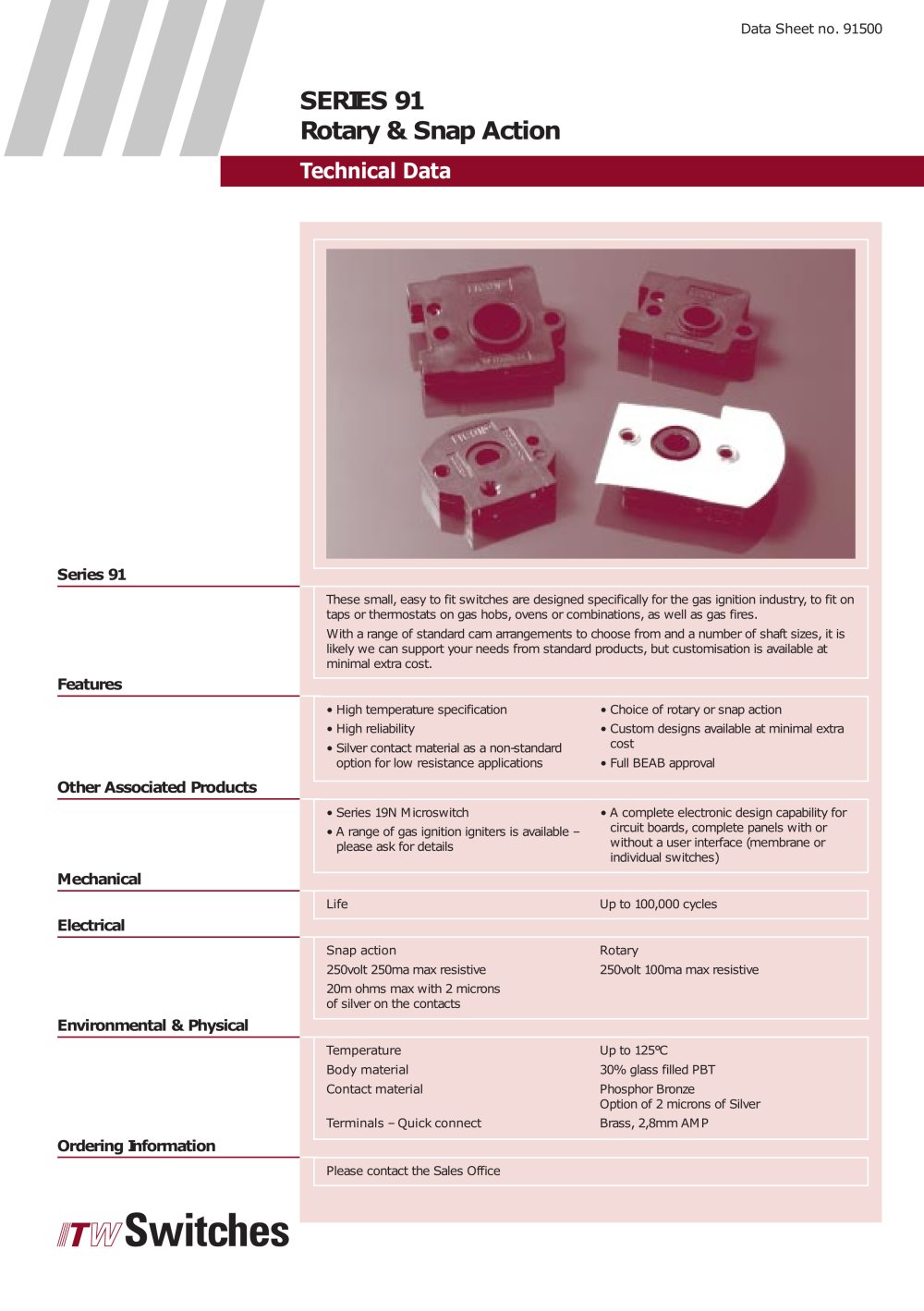

Data Sheet no. 91500

Rotary and snap Action Gas ignition series 91 - 15835 SERIES 91Rotary & Snap Action

Technical Data

Series 91

These small, easy to fit switches are designed specifically for the gas ignition industry, to fit on taps or thermostats on gas hobs, ovens or combinations, as well as gas fires.With a range of standard cam arrangements to choose from and a number of shaft sizes, it islikely we can support your needs from standard products, but customisation is available at minimal extra cost.

Features

? High temperature specification? High reliability? Silver contact material as a non-standardoption for low resistance applications? Choice of rotary or snap action? Custom designs available at minimal extracost? Full BEAB approval

Other Associated Products

? Series 19N Microswitch? A range of gas ignition igniters is available –please ask for details? A complete electronic design capability forcircuit boards, complete panels with or without a user interface (membrane or individual switches)

Mechanical

Life Up to 100,000 cycles

Electrical

Snap actionRotary 250volt 250ma max resistive250volt 100ma max resistive20m ohms max with 2 micronsof silver on the contacts

Environmental & Physical

Temperature Up to 125°C Body material 30% glass filled PBT Contact material Phosphor BronzeOption of 2 microns of Silver Terminals – Quick connect Brass, 2,8mm AMP

Ordering Information

Please contact the Sales Office
