NTRODUCTION

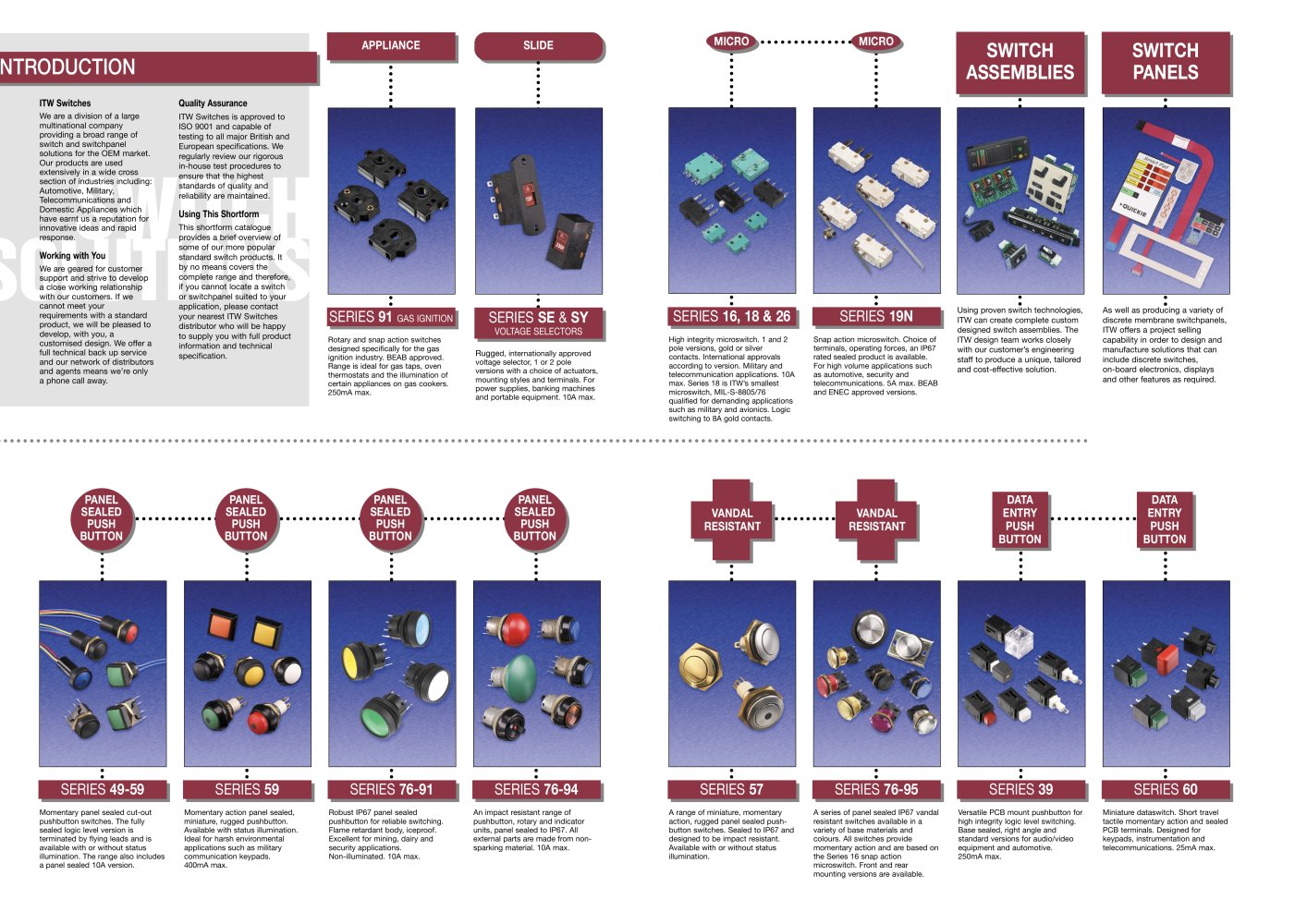

ITW Switches Quality Assurance We are a division of a largemultinational company providing a broad range ofswitch and switchpanelsolutions for the OEM market. Our products are used extensively in a wide crosssection of industries including:Automotive, Military, Telecommunications and Domestic Appliances whichhave earnt us a reputation forinnovative ideas and rapid response. ITW Switches is approved toISO 9001 and capable of testing to all major British and European specifications. We regularly review our rigorous in-house test procedures to ensure that the highest standards of quality and reliability are maintained. Using This Shortform This shortform catalogue provides a brief overview of some of our more popular standard switch products. It by no means covers the complete range and therefore, if you cannot locate a switch or switchpanel suited to your application, please contact your nearest ITW Switches distributor who will be happy to supply you with full product information and technical specification Working with You We are geared for customer support and strive to developa close working relationshipwith our customers. If we cannot meet your requirements with a standardproduct, we will be pleased todevelop, with you, a customised design. We offer a full technical back up serviceand our network of distributorsand agents means we’re only a phone call away.

SWITCH S OLUTIONS

SERIES 91
Using proven switch technologies,ITW can create complete custom designed switch assemblies. The ITW design team works closely with our customer’s engineering staff to produce a unique, tailored and cost-effective solution. GAS IGNITION SERIES SE & SY SERIES 16, 18 & 26 SERIES 19N
As well as producing a variety ofdiscrete membrane switchpanels, ITW offers a project selling capability in order to design and manufacture solutions that can include discrete switches, on-board electronics, displays and other features as required. VOLTAGE SELECTORS Rotary and snap action switchesdesigned specifically for the gasignition industry. BEAB approved. Range is ideal for gas taps, oventhermostats and the illumination ofcertain appliances on gas cookers. 250mA max. High integrity microswitch. 1 and 2pole versions, gold or silver contacts. International approvalsaccording to version. Military andtelecommunication applications. 10A max. Series 18 is ITW’s smallest microswitch, MIL-S-8805/76qualified for demanding applicationssuch as military and avionics. Logic switching to 8A gold contacts. Snap action microswitch. Choice ofterminals, operating forces, an IP67 rated sealed product is available.For high volume applications suchas automotive, security and telecommunications. 5A max. BEAB and ENEC approved versions. . Rugge d, internationally approvedvoltage selector, 1 or 2 poleversions with a choice of actuators, mounting styles and terminals. Forpower supplies, banking machinesand portable equipment. 10A max. PANELSEALEDPUSHBUTTON PANELSEALEDPUSHBUTTON PANELSEALEDPUSHBUTTON PANELSEALEDPUSHBUTTON DATAENTRYPUSHBUTTON DATAENTRYPUSHBUTTON VANDALRESISTANT VANDALRESISTANT SERIES 49-59 SERIES 59 SERIES 76-91 SERIES 76-94 SERIES 57 SERIES 76-95 SERIES 39 SERIES 60
Momentary panel sealed cut-outpushbutton switches. The fully sealed logic level version is terminated by flying leads and is available with or without status illumination. The range also includes a panel sealed 10A version. Momentary action panel sealed,miniature, rugged pushbutton. Available with status illumination. Ideal for harsh environmental applications such as military communication keypads. 400mA max. Robust IP67 panel sealedpushbutton for reliable switching. Flame retardant body, iceproof. Excellent for mining, dairy and security applications. Non-illuminated. 10A max. An impact resistant range ofpushbutton, rotary and indicator units, panel sealed to IP67. All external parts are made from non- sparking material. 10A max. A range of miniature, momentaryaction, rugged panel sealed push button switches manufacturer. Sealed to IP67 and designed to be impact resistant. Available with or without status illumination. A series of panel sealed IP67 vandalresistant switches available in a variety of base materials and colours. All switches provide momentary action and are based on the Series 16 snap action microswitch. Front and rear mounting versions are available. Versatile PCB mount pushbutton forhigh integrity logic level switching. Base sealed, right angle and standard versions for audio/video equipment and automotive. 250mA max. Miniature dataswitch. Short traveltactile momentary action and sealed PCB terminals. Designed for keypads, instrumentation and telecommunications. 25mA max.
