The Next Level of Technology

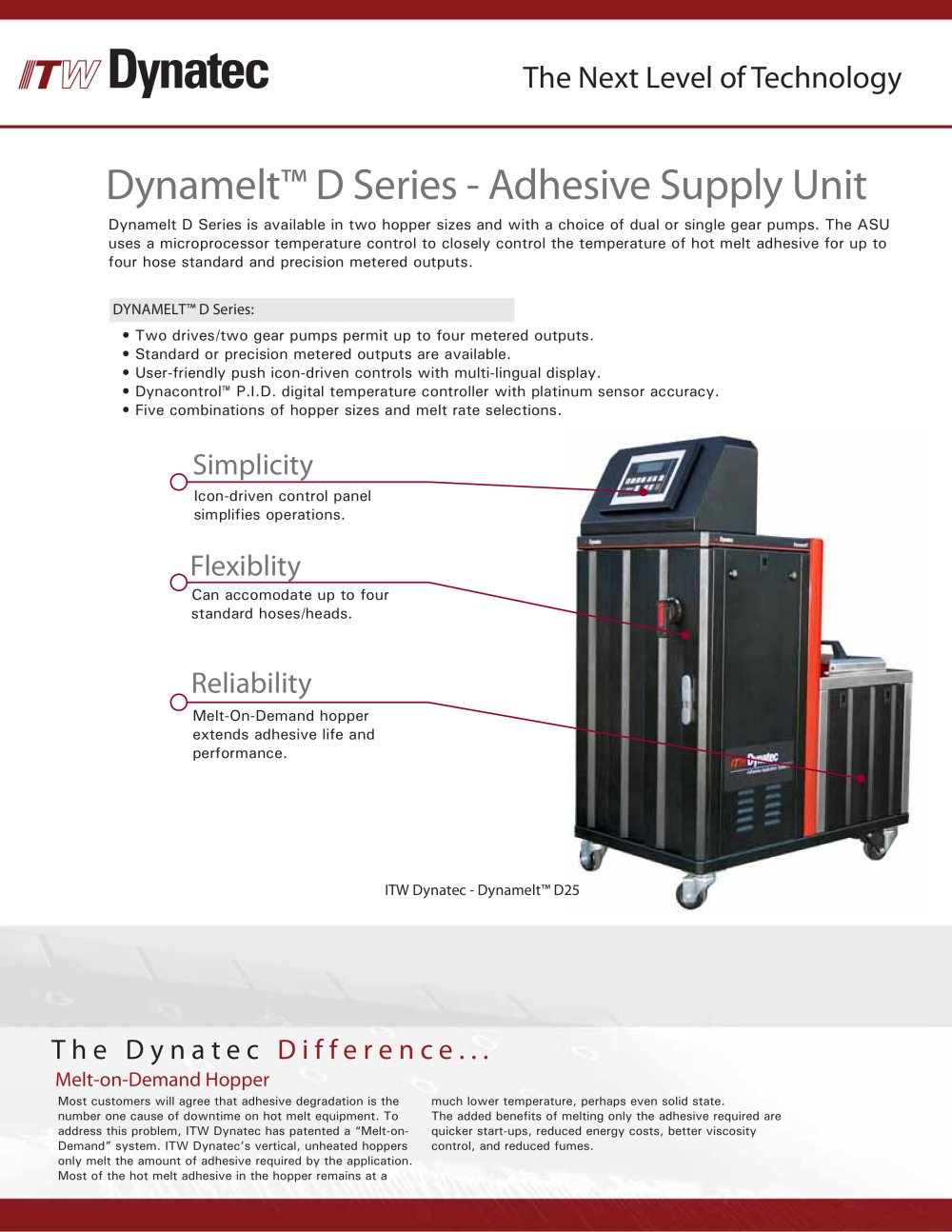

ITW Dynatec Dynamelt D25/45 Hot Melt Adhesive Supply Units - 15012 Dynamelt™ D Series - Adhesive Supply Unit

Dynamelt D Series is available in two hopper sizes and with a choice of dual or single gear pumps. The ASU uses a microprocessor temperature control to closely control the temperature of hot melt adhesive for up to four hose standard and precision metered outputs.
DYNAMELT™ D Series: • Two drives/two gear pumps permit up to four metered outputs.• Standard or precision metered outputs are available. • User-friendly push icon-driven controls with multi-lingual display. • Dynacontrol™ P.I.D. digital temperature controller with platinum sensor accuracy. • Five combinations of hopper sizes and melt rate selections.

Simplicity

Icon-driven control panel simplifies operations.

Flexiblity

Can accomodate up to four standard hoses/heads.

Reliability

Melt-On-Demand hopper extends adhesive life and performance.
ITW Dynatec - Dynamelt™ D25

The Dynatec Difference...

Melt-on-Demand Hopper

Most customers will agree that adhesive degradation is the number one cause of downtime on hot melt equipment. To address this problem, ITW Dynatec has patented a “Melt-on- Demand” system. ITW Dynatec’s vertical, unheated hoppers only melt the amount of adhesive required by the application. Most of the hot melt adhesive in the hopper remains at a much lower temperature, perhaps even solid state. The added benefits of melting only the adhesive required are quicker start-ups, reduced energy costs, better viscosity control, and reduced fumes.
