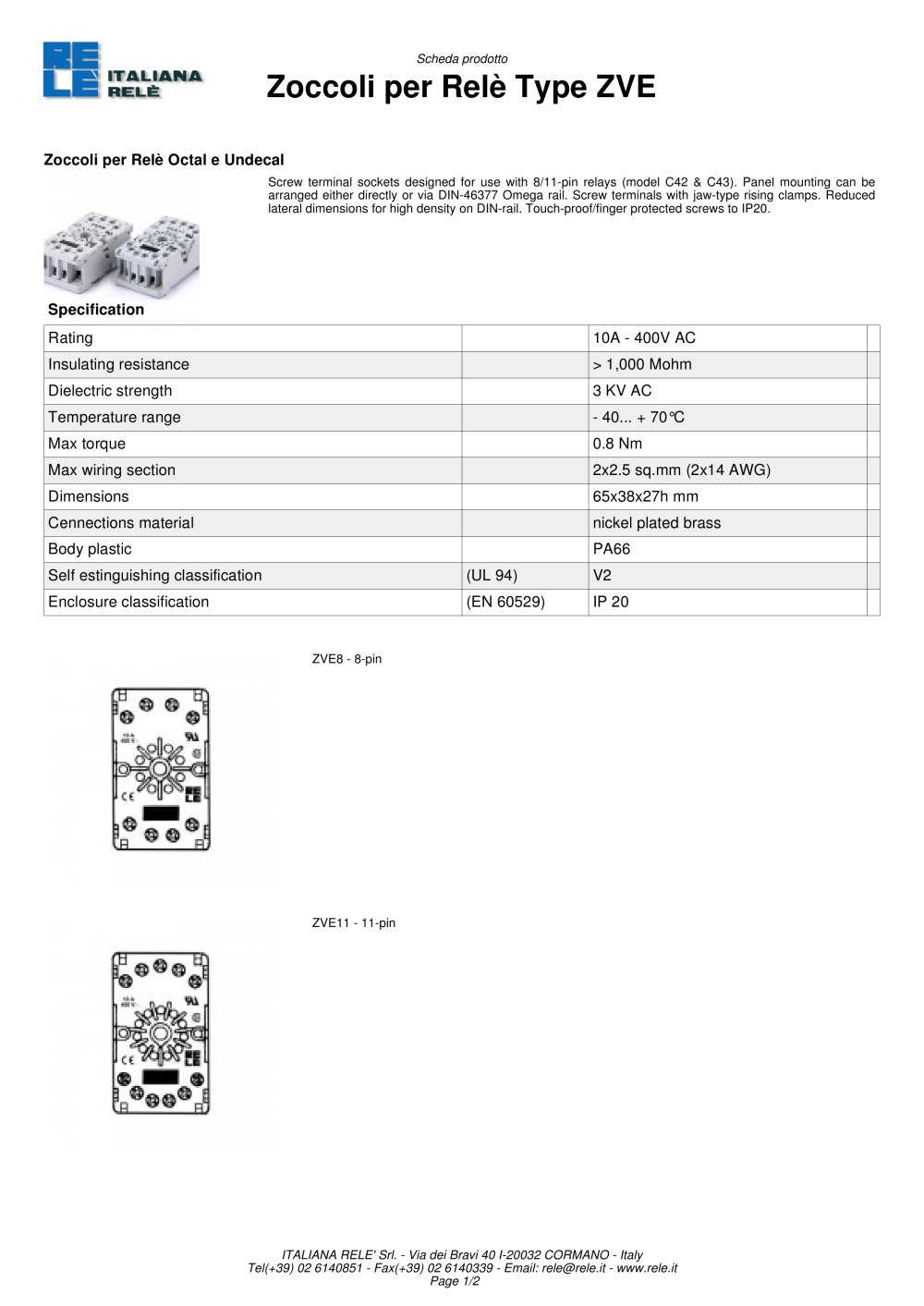

Scheda prodotto
Screw terminal sockets designed for use with 8/11-pin relays (model C42 & C43). Panel mounting can bearranged either directly or via DIN-46377 Omega rail. Screw terminals with jaw-type rising clamps. Reducedlateral dimensions for high density on DIN-rail. Touch-proof/finger protected screws to IP20. Specification Rating 10A - 400V AC Insulating resistance > 1,000 Mohm Dielectric strength 3 KV AC Temperature range - 40... + 70°C Max torque 0.8 Nm Max wiring section 2x2.5 sq.mm (2x14 AWG) Dimensions 65x38x27h mm Cennections material nickel plated brass Body plastic PA66 Self estinguishing classification (UL 94) V2 Enclosure classification (EN 60529) IP 20
ZVE8 - 8-pin ZVE11 - 11-pin ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - ItalyTel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: rele@rele.it - www.rele.itPage 1/2
Zoccoli per Relè 8 /11-pin > Type ZVE - 23084 Zoccoli per Relè Type ZVE
Zoccoli per Relè Octal e UndecalScrew terminal sockets designed for use with 8/11-pin relays (model C42 & C43). Panel mounting can bearranged either directly or via DIN-46377 Omega rail. Screw terminals with jaw-type rising clamps. Reducedlateral dimensions for high density on DIN-rail. Touch-proof/finger protected screws to IP20. Specification Rating 10A - 400V AC Insulating resistance > 1,000 Mohm Dielectric strength 3 KV AC Temperature range - 40... + 70°C Max torque 0.8 Nm Max wiring section 2x2.5 sq.mm (2x14 AWG) Dimensions 65x38x27h mm Cennections material nickel plated brass Body plastic PA66 Self estinguishing classification (UL 94) V2 Enclosure classification (EN 60529) IP 20
ZVE8 - 8-pin ZVE11 - 11-pin ITALIANA RELE' Srl. - Via dei Bravi 40 I-20032 CORMANO - ItalyTel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: rele@rele.it - www.rele.itPage 1/2
