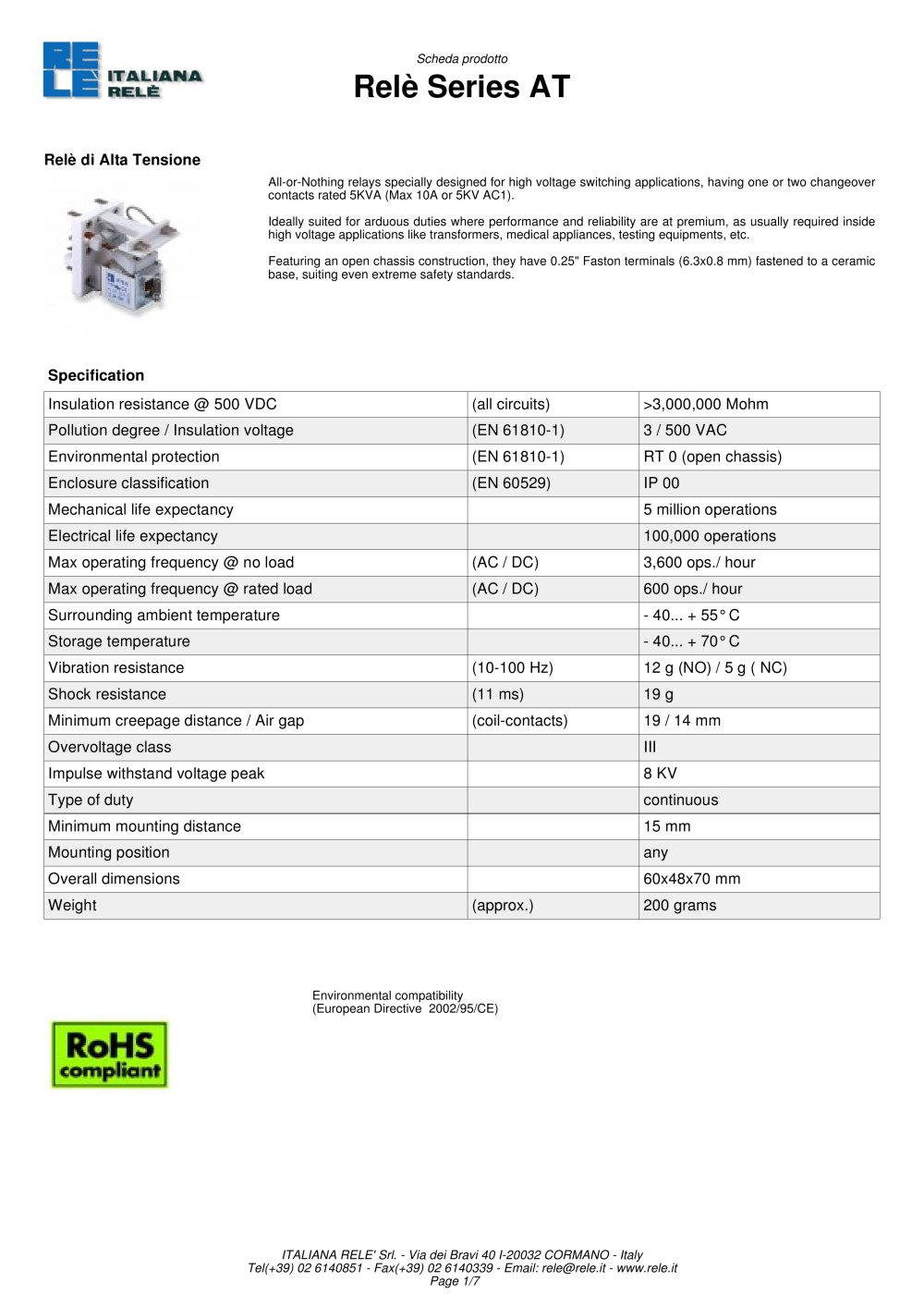

Re|è gerjes ^7 Relè di Alta Tensione All-or-Nothing
relays specially designed for high voltage switching applications, having one or two changeover contacts rated 5KVA (Max 10A or 5KV AC1). Ideally suited for arduous duties where performance and reliability are at premium, as usually required inside high voltage applications like transformers, medical appliances, testing equipments, etc. Featuring an open chassis construction, they have 0.25" Faston terminals (6.3x0.8 mm) fastened to a ceramic base, suiting even extreme safety standards.
Spécification Insulation resistance @ 500 VDC (all circuits) >3,000,000 Mohm Pollution degree / Insulation voltage (EN 61810-1) 3 / 500 VAC Environmental protection (EN 61810-1) RT 0 (open chassis) Enclosure classification (EN 60529) IP 00 Mechanical life expectancy 5 million operations Electrical life expectancy 100,000 operations Max operating frequency @ no load (AC / DC) 3,600 ops./ hour Max operating frequency @ rated load (AC / DC) 600 ops./ hour Surrounding ambient temperature - 40... + 55° C Storage temperature - 40... + 70° C Vibration resistance (10-100 Hz) 12 g (NO) / 5 g ( NC) Shock resistance (11 ms) 19 g Minimum creepage distance / Air gap (coil-contacts) 19 / 14 mm Overvoltage class III Impulse withstand voltage peak 8 KV Type of duty continuous Minimum mounting distance 15 mm Mounting position any Overall dimensions 60x48x70 mm Weight (approx.) 200 grams Environmental compatibility (European Directive 2002/95/CE)
RoHS compila rit ITALIANA RELE' Sri. - Via dei Bravi 40 I-20032 CORMANO - Italy Tel(+39) 02 6140851 - Fax(+39) 02 6140339 - Email: rele@rele.it - www.rele.it Page 1/7
