Moulded case circuit breakers - Iskra MIS - #9

Text version of the page

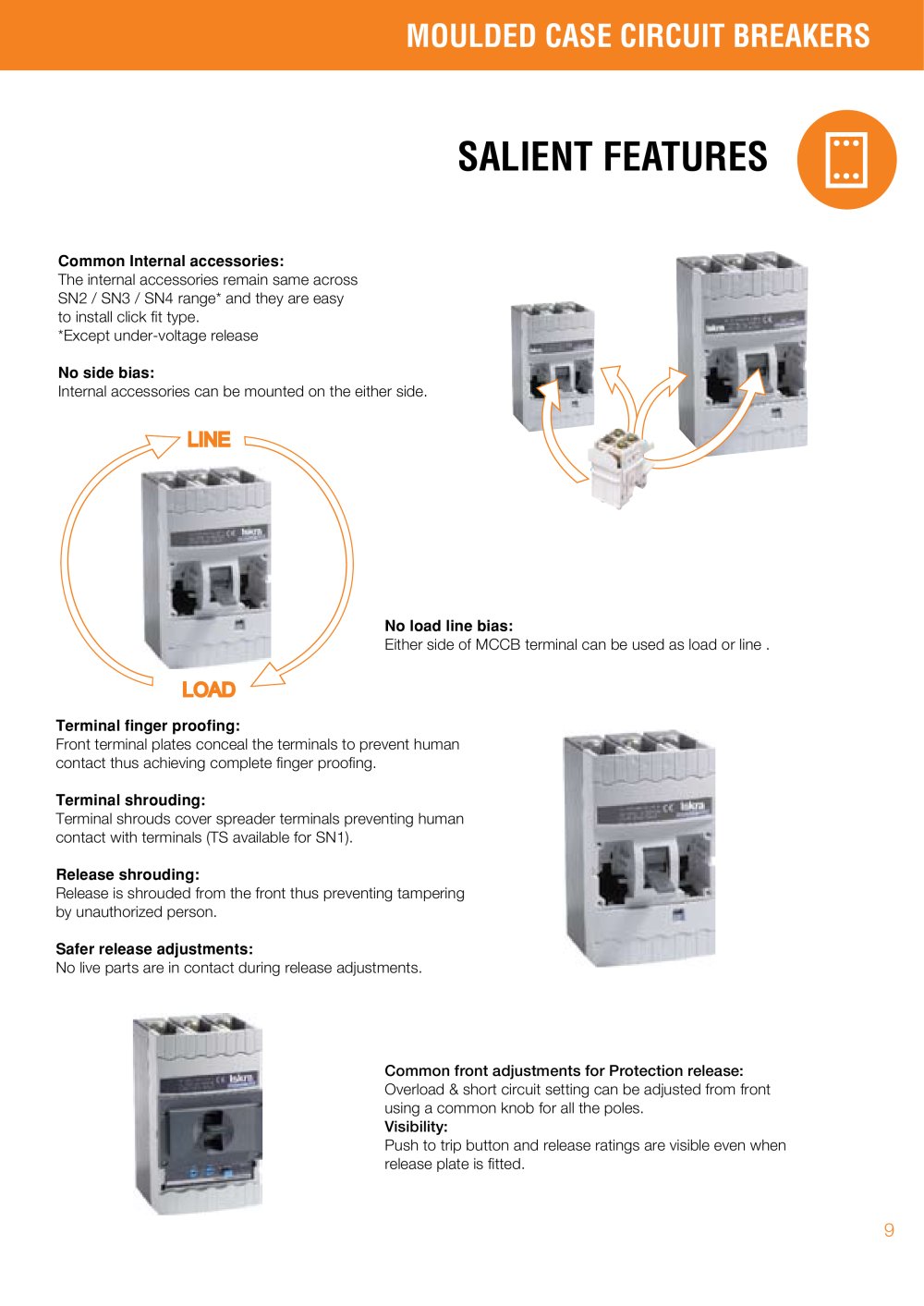

MOULDED CASE CIRCUIT BReAKERS 9 SALIENT FEATURES Common Internal accessories: The internal accessories remain same across SN2 / SN3 / SN4 range* and they are easy to install click fit type. *Except under-voltage release No side bias: Internal accessories can be mounted on the either side. Terminal finger proofing: Front terminal plates conceal the terminals to prevent human contact thus achieving complete finger proofing. Terminal shrouding: Terminal shrouds cover spreader terminals preventing human contact with terminals (TS available for SN1). Release shrouding: Release is shrouded from the front thus preventing tampering by unauthorized person. Safer release adjustments: No live parts are in contact during release adjustments. No load line bias: Either side of MCCB terminal can be used as load or line . Common front adjustments for Protection release: Overload & short circuit setting can be adjusted from front using a common knob for all the poles. Visibility: Push to trip button and release ratings are visible even when release plate is fitted. LINE LOAD
