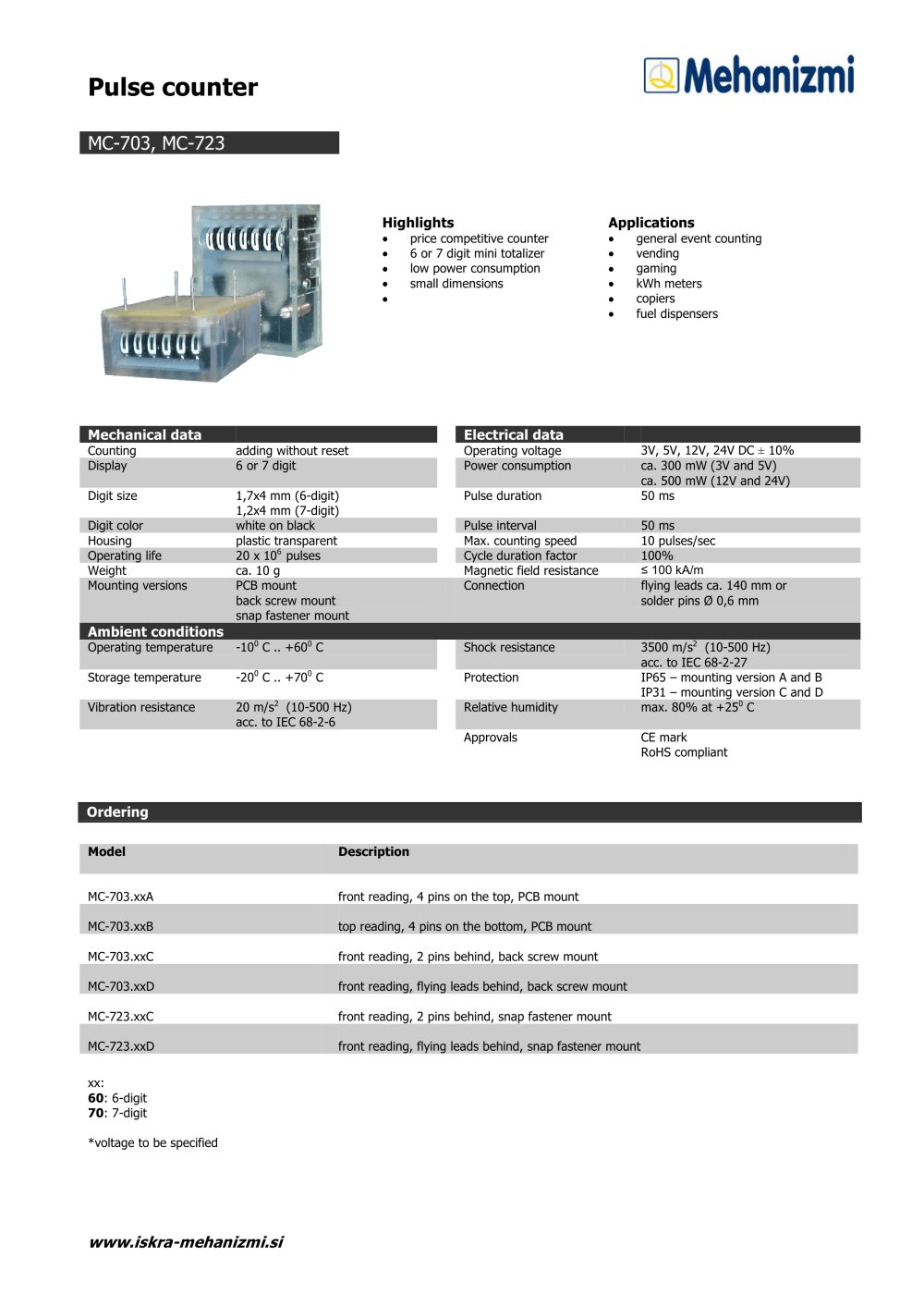

Puise counter

Mehanizmi

Iskra Mehanizmi, d.d,, Lipnica

MC-703, MC-723

Highiights

• price compétitive counter

• 6 or 7 digit mini totalizer

• low power consumption

• small dimensions

Applications

• general event counting

• vending

• gaming

• kWh meters

• copiers

• fuel dispensers


Mechanical data		Electrical data
Counting	adding without reset	Operating voltage	3V, 5V, 12V, 24V DC ± 10%
Display	6 or7 digit	Power consumption	ca. 300 mW (3V and 5V) ca. 500 mW (12V and 24V)
Digit size	1,7x4 mm (6-digit) 1,2x4 mm (7-digit)	Pulse duration	50 ms
Digit color	white on black	Pulse interval	50 ms
Housing	plastic transparent	Max. counting speed	10 pulses/sec
Operating life	20 x 10⁶ pulses	Cycle duration factor	100%
Weight	ca. 10 g	Magnetic field resistance	< 100 kA/m
Mounting versions	PCB mount back screw mount snap fastener mount	Connection	flying leads ca. 140 mm or solder pins 0 0,6 mm
Ambient conditions
Operating temperature	-10⁰C.. +60° C	Shock resistance	3500 m/s² (10-500 Hz) acc. to IEC 68-2-27
Storage temperature	-20⁰ C.. +70⁰ C	Protection	IP65 - mounting version A and B IP31 - mounting version C and D
Vibration resistance	20 m/s² (10-500 Hz) acc. to IEC 68-2-6	Relative humidity	max. 80% at +25⁰ C
		Approvals	CE mark

RoHS compliant



	Model	Description
	MC-703.xxA	front reading, 4 pins on the top, PCB mount
	MC-703.xxB	top reading, 4 pins on the bottom, PCB mount
	MC-703.xxC	front reading, 2 pins behind, back screw mount
	MC-703.xxD	front reading, flying leads behind, back screw mount
	MC-723.xxC	front reading, 2 pins behind, snap fastener mount
	MC-723.xxD	front reading, flying leads behind, snap fastener mount

xx:

60: 6-digit 70: 7-digit

*voltage to be specified
