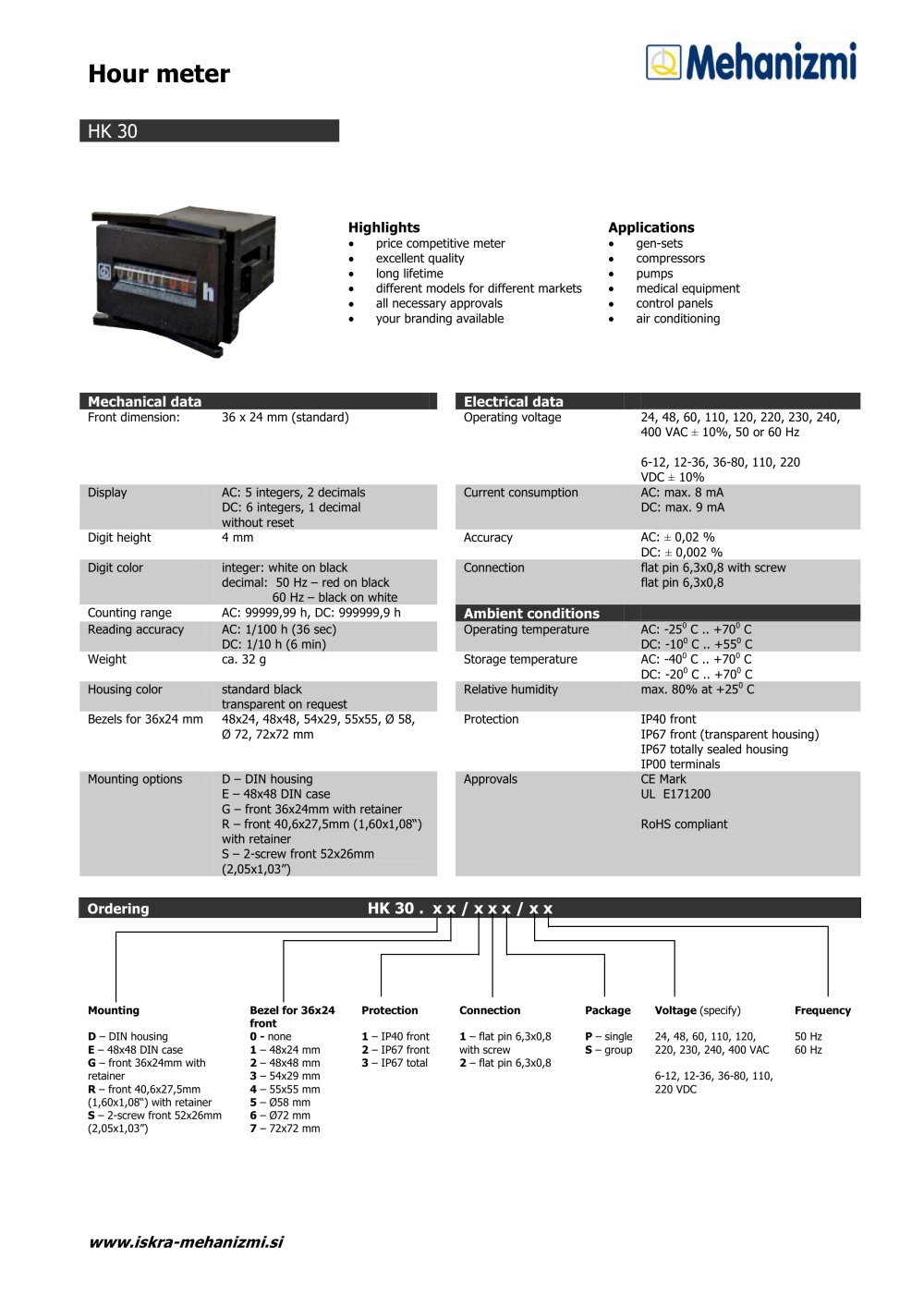

HOIIT ITI6t6r IskraMehanizmi, d.d„ Lipnica

HK30

Highlights

• price compétitive meter

• excellent quality

• long lifetime

• different models for different markets

• all necessary approvals

• your branding available

Applications

• gen-sets

• compressors

• pumps

• medical equipment

• control panels

• air conditioning


	Electrical data
	Operating voltage	24, 48, 60, 110, 120, 220, 230, 240, 400 VAC ± 10%, 50 or 60 Hz 6-12, 12-36, 36-80, 110, 220 VDC ± 10%
	Current consumption	AC: max. 8 mA DC: max. 9 mA
	Accuracy	AC: ± 0,02 % DC: ± 0,002 %
	Connection	flat pin 6,3x0,8 with screw flat pin 6,3x0,8
	Ambient conditions
	Operating temperature	AC: -25⁰ C.. +70° C DC: -10⁰C.. +55⁰ C
	Storage temperature	AC: -40⁰ C.. +70⁰ C DC: -20⁰ C.. +70⁰ C
	Relative humidity	max. 80% at +25⁰ C
	Protection	IP40 front IP67 front (transparent housing) IP67 totally sealed housing IP00 terminals
	Approvals	CE Mark UL E171200 RoHS compliant

Mechanical data


	Front dimension:	36 x 24 mm (standard)
	Display	AC: 5 integers, 2 decimals DC: 6 integers, 1 decimal without reset
	Digit height	4 mm
	Digit color	integer: white on black decimal: 50 Hz - red on black 60 Hz - black on white
	Counting range	AC: 99999,99 h, DC: 999999,9 h
	Reading accuracy	AC: 1/100 h (36 sec) DC: 1/10 h (6 min)
	Weight	ca. 32 g
	Housing color	standard black transparent on request
	Bezels for 36x24 mm	48x24, 48x48, 54x29, 55x55, 0 58, 0 72, 72x72 mm
	Mounting options	D - DIN housing E - 48x48 DIN case G - front 36x24mm with retainer R - front 40,6x27,5mm (1,60x1,08") with retainer S - 2-screw front 52x26mm (2,05x1,03")

Mounting

D - DIN housing E - 48x48 DIN case G - front 36x24mm with retainer

R - front 40,6x27,5mm (1,60x1,08") with retainer S - 2-screw front 52x26mm (2,05x1,03")

Bezel for 36x24 front

0 - none

1 - 48x24 mm

2 - 48x48 mm

3 - 54x29 mm

4 - 55x55 mm

5 - 058 mm

6 - 072 mm

7 - 72x72 mm

Protection

1 - IP40 front

2 - IP67 front

3 - IP67 total

Connection

1 - flat pin 6,3x0,8 with screw

2 - flat pin 6,3x0,8

Package Voltage (specify) Frequency

P - single 24, 48, 60, 110, 120, 50 Hz

S - group 220, 230, 240, 400 VAC 60 Hz

6-12, 12-36, 36-80, 110, 220 VDC

www. iskra-mehanizmi.si
