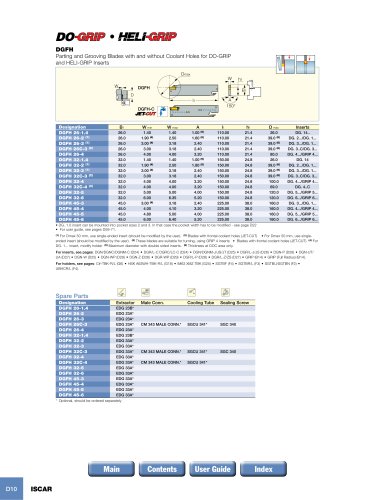

GrooveTurn - 184 / 372 Pages

l

DGFH

Parting and Grooving Blades with and without Coolant Holes for DO-GRIP
and HELI-GRIP Inserts
Dmax
W

W

DGFH

B1

D

A
150°

l1
DGFH-C

Designation
DGFH 26-1.4
DGFH 26-2 (1)
DGFH 26-3 (1)
DGFH 26C-3 (2)
DGFH 26-4
DGFH 32-1.4
DGFH 32-2 (1)
DGFH 32-3 (1)
DGFH 32C-3 (2)
DGFH 32-4
DGFH 32C-4 (3)
DGFH 32-5
DGFH 32-6
DGFH 45-3
DGFH 45-4
DGFH 45-5
DGFH 45-6

h1

B1

W min

W max

A

l1

h1

D max

Inserts

26.0
26.0
26.0
26.0
26.0
32.0
32.0
32.0
32.0
32.0
32.0
32.0
32.0
45.0
45.0
45.0
45.0

1.40
1.90 (4)
3.00 (4)
3.00
4.00
1.40
1.90 (4)
3.00 (4)
3.00
4.00
4.00
5.00
6.00
3.00 (4)
4.00
4.80
6.00

1.40
2.50
3.18
3.18
4.00
1.40
2.50
3.18
3.18
4.00
4.00
5.00
6.35
3.18
4.10
5.00
6.40

1.00 (5)
1.60 (5)
2.40
2.40
3.20
1.00 (5)
1.80 (5)
2.40
2.40
3.20
3.20
4.00
5.20
2.40
3.20
4.00
5.20

110.00
110.00
110.00
110.00
110.00
150.00
150.00
150.00
150.00
150.00
150.00
150.00
150.00
225.00
225.00
225.00
225.00

21.4
21.4
21.4
21.4
21.4
24.8
24.8
24.8
24.8
24.8
24.8
24.8
24.8
38.0
38.0
38.0
38.0

26.0
39.0 (6)
39.0 (6)
39.0 (6)
80.0
26.0
39.0 (6)
39.0 (6)
39.0 (6)
100.0
69.0
120.0
120.0
160.0
160.0
160.0
160.0

DG. 14..
DG. 2.../DG. 1...
DG. 3.../DG. 1...
DG. 3..C/DG. 3...
DG. 4.../GRIP 4...
DG. 14
DG. 2.../DG. 1...
DG. 3.../DG. 1...
DG. 3..C/DG. 3...
DG. 4.../GRIP 4...
DG. 4..C
DG. 5.../GRIP 5...
DG. 6.../GRIP 6...
DG. 3.../DG. 1...
DG. 4.../GRIP 4...
DG. 5.../GRIP 5...
DG. 6.../GRIP 6...

• DG..1.0 insert can be mounted into pocket sizes 2 and 3. In that case the pocket width has to be modified - see page D22
• For user guide, see pages D59-71.
(1) For Dmax 50 mm, use single-ended insert (should be modified by the user). (2) Blades with frontal coolant holes (JET-CUT) • For Dmax 50 mm, use singleended insert (should be modified by the user). (3) These blades are suitable for turning, using GRIP 4 inserts • Blades with frontal coolant holes (JET-CUT) (4) For
DG. 1... insert, modify holder (5) Maximum diameter with double sided inserts. (6) Thickness at DOC area only.

For inserts, see pages: DGN/DGNC/DGNM-C (D24) • DGR/L-C DGRC/LC-C (D24) • DGN/DGNM-J/JS/JT (D25) • DGR/L-J/JS (D26) • DGN-P (D28) • DGN-UT/
UA (D27) • DGN-W (D25) • DGN-WP (D29) • DGN-Z (D26) • DGR-WP (D29) • DGR/L-P (D28) • DGR/L-Z/ZS (D27) • GRIP (B14) • GRIP (Full Radius) (B14).
For holders, see pages: C#-TBK-R/L (G6) • HSK A63WH-TBK-R/L (G18) • IM63 XMZ TBK (G25) • SGTBF (F4) • SGTBR/L (F3) • SGTBU/SGTBN (F2) •
UBHCR/L (F4).
