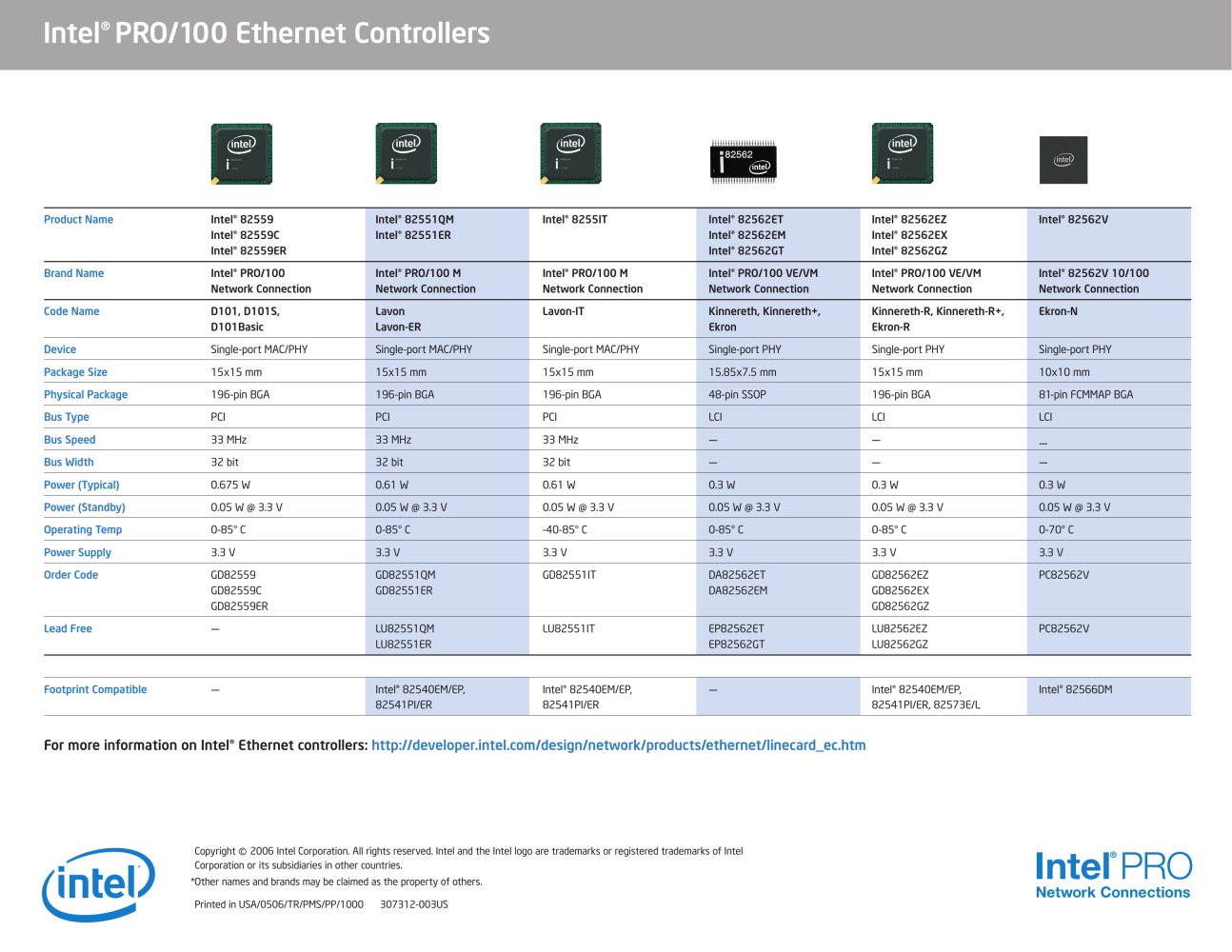

Inter PRO/100 Ethernet Controllers

H B B m B D


Product Name	*Intel 82559 Intel* 82559C Intel* 82559ER**	*Intel 82551QM Intel* 82551 ER**	*Intel 8255IT**	*Intel 82562ET Intel* 82562EM Intel* 82562GT**	*Intel 82562EZ Intel* 82562EX Intel* 82562GZ**	*Intel 82562V**
Brand Name	*Intel PRO/100 Network Connection**	*Intel PRO/100 M Network Connection**	*Intel PRO/100 M Network Connection**	*Intel PRO/100 VE/VM Network Connection**	*Intel PRO/100 VE/VM Network Connection**	*Intel 82562V 10/100 Network Connection**
Code Name	D101.D101S, D101 Basic	Lavon Lavon-ER	Lavon-IT	Kinnereth, Kinnereth+, Ekron	Kinnereth-R, Kinnereth-R+, Ekron-R	Ekron-N
Device	Single-port MAC/PHY	Single-port MAC/PHY	Single-port MAC/PHY	Single-port PHY	Single-port PHY	Single-port PHY
Package Size	15x15 mm	1 5x15 mm	15x15 mm	15.85x7.5 mm	15x15 mm	10x10 mm
Physical Package	196-pin BGA	196-pin BGA	196-pin BGA	48-pin SSOP	196-pin BGA	81-pin FCMMAP BGA
Bus Type	PCI	PCI	PCI	LCI	LCI	LCI
Bus Speed	33 MHz	33 MHz	33 MHz	-	-	_
Bus Width	32 bit	32 bit	32 bit	-	-	-
Power (Typical)	0.675 W	0.61 W	0.61 W	0.3 w	0.3 w	0.3 w
Power (Standby)	0.05 W @ 3.3 V	0.05 W @ 3.3 V	0.05 W @ 3.3 V	0.05 W @ 3.3 V	0.05 W @ 3.3 V	0.05 W @ 3.3 V
Operating Temp	0-85° C	0-85° C	-40-85° C	0-85° C	0-85° C	0-70° C
Power Supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Order Code	CD82559 CD82559C CD82559ER	GD82551QM GD82551ER	GD82551IT	DA82562ET DA82562EM	GD82562EZ GD82562EX GD82562GZ	PC82562V
Lead Free	-	LU82551QM LU82551ER	LU82551IT	EP82562ET EP82562GT	LU82562EZ LU82562GZ	PC82562V

Footprint Compatible	-	Intel* 82540EM/EP, 82541PI/ER	Intel* 82540EM/EP, 82541 PI/ER	-	Intel* 82540EM/EP, 82541 PI/ER, 82573E/L	Intel* 82566DM

For more information on Intel* Ethernet controllers: http://developer.intel.com/design/network/products/ethernet/linecard_ec.htm

Copyright © 2006 Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks or registered trademarks of Intel Corporation or Its subsidiaries In other countries. *0ther names and brands may be claimed as the property of others.

Printed In USA/0506/TR/PMS/PP/1000 307312-003US
