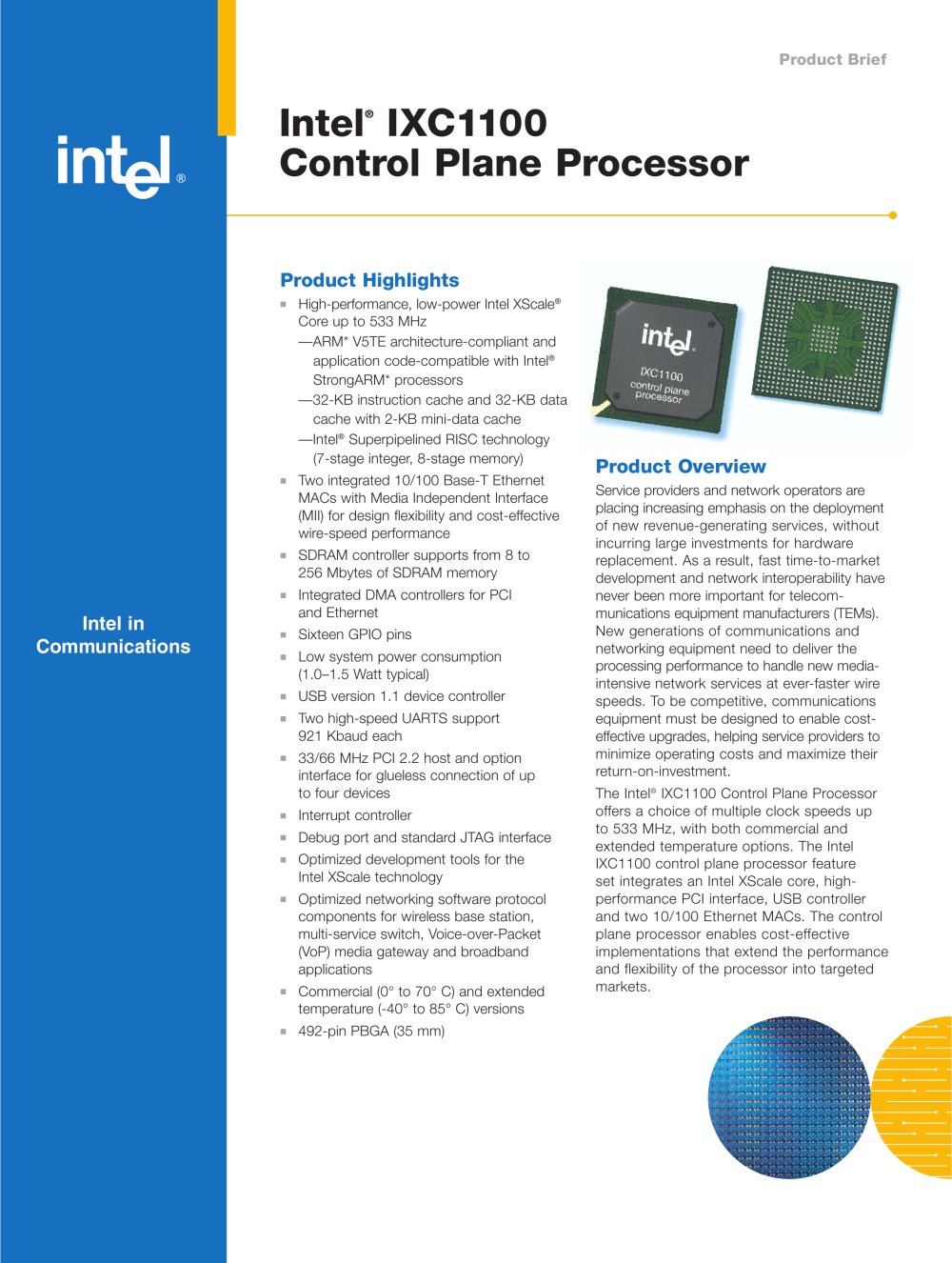

Product Brief

Intel® IXC1100 Control Plane Processor - 33710 Intel

®

IXC1100Control Plane Processor

Product Highlights

â–  High-performance, low-power Intel XScale
® Core up to 533 MHz —ARM* V5TE architecture-compliant andapplication code-compatible with Intel
® StrongARM* processors—32-KB instruction cache and 32-KB data cache with 2-KB mini-data cache —Intel
® Superpipelined RISC technology(7-stage integer, 8-stage memory)
â–  Two integrated 10/100 Base-T Ethernet MACs with Media Independent Interface (MII) for design flexibility and cost-effective wire-speed performance

Product Overview

Service providers and network operators are placing increasing emphasis on the deployment of new revenue-generating services, without incurring large investments for hardwarereplacement. As a result, fast time-to-marketdevelopment and network interoperability have never been more important for telecom- municationsequipment manufacturers (TEMs).New generations of communications andnetworking equipment need to deliver theprocessing performance to handle new media- intensive network services at ever-faster wire speeds. To be competitive, communications equipment must be designed to enable cost- effective upgrades, helping service providers to minimize operating costs and maximize their return-on-investment.The Intel
â–  SDRAM controller supports from 8 to 256 Mbytes of SDRAM memory
â–  Integrated DMA controllers for PCI and Ethernet

Intel inCommunications

â–  Sixteen GPIO pins
â–  Low system power consumption (1.0–1.5 Watt typical)
â–  USB version 1.1 device controller
â–  Two high-speed UARTS support 921 Kbaud each
â–  33/66 MHz PCI 2.2 host and option interface for glueless connection of up to four devices
® IXC1100 Control Plane Processoroffers a choice of multiple clock speeds up to 533 MHz, with both commercial andextended temperature options. The Intel IXC1100 control plane processor feature set integrates an Intel XScale core, high- performance PCI interface, USB controllerand two 10/100 Ethernet MACs. The controlplane processor enables cost-effective implementations that extend the performance and flexibility of the processor into targeted markets.
â–  Interrupt controller
â–  Debug port and standard JTAG interface
â–  Optimized development tools for the Intel XScale technology
â–  Optimized networking software protocol components for wireless base station, multi-service switch, Voice-over-Packet (VoP) media gateway and broadband applications
â–  Commercial (0°to 70°C) and extended temperature (-40°to 85°C) versions
â–  492-pin PBGA (35 mm)
