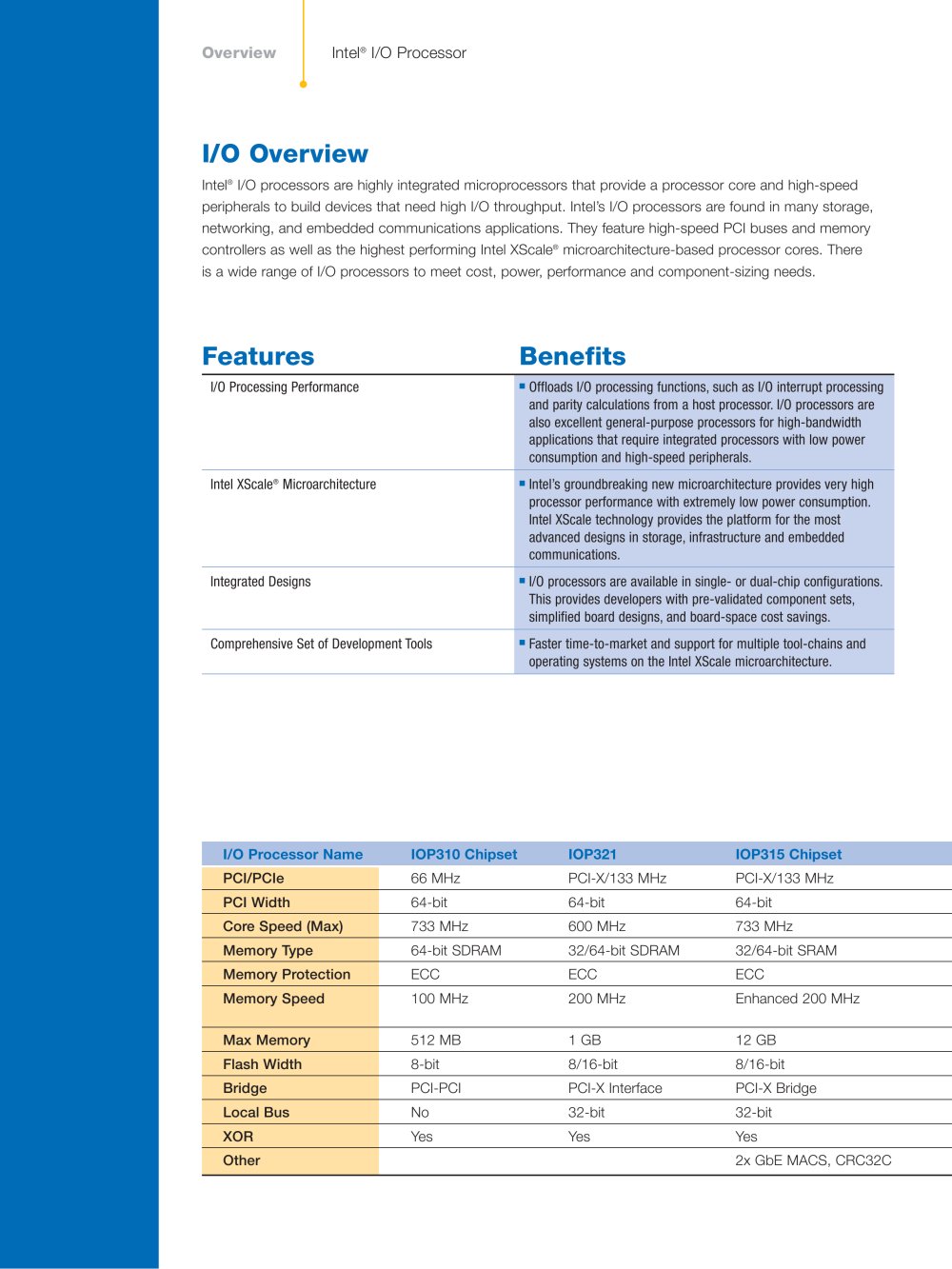

Overview Intel

®

I/O Processor

I/O Overview

Intel
® I/O processors are highly integrated microprocessors that provide a processor core and high-speedperipherals to build devices that need high I/O throughput. Intel’s I/O processors are found in many storage, networking, and embedded communications applications. They feature high-speed PCI buses and memory controllers as well as the highest performing Intel XScale
® microarchitecture-based processor cores. There is a wide range of I/O processors to meet cost, power, performance and component-sizing needs.

FeaturesBenefits

I/O Processing Performance
â–  Offloads I/O processing functions,such as I/O interrupt processing and parity calculations from a host processor.I/O processors are also excellent general-purpose processors for high-bandwidth applications that require integrated processors with low power consumption and high-speed peripherals.Intel XScale
® Microarchitecture
â–  Intel’s groundbreaking new microarchitecture provides very highprocessor performance with extremely low power consumption. Intel XScale technology provides the platform for the most advanced designs in storage,infrastructure and embedded communications.Integrated Designs
â–  I/O processors are available in single- or dual-chip configurations.This provides developers with pre-validated component sets, simplified board designs,and board-space cost savings.Comprehensive Set of Development Tools
â–  Faster time-to-market and support for multiple tool-chains and operating systems on the Intel XScale microarchitecture. I/O Processor NameIOP310 ChipsetIOP321IOP315 Chipset PCI/PCIe 66 MHzPCI-X/133 MHzPCI-X/133 MHz PCI Width 64-bit64-bit64-bit Core Speed (Max) 733 MHz600 MHz733 MHz Memory Type 64-bit SDRAM32/64-bit SDRAM32/64-bit SRAM Memory Protection ECCECCECC Memory Speed 100 MHz200 MHzEnhanced 200 MHz Max Memory 512 MB1 GB12 GB Flash Width 8-bit8/16-bit8/16-bit Bridge PCI-PCIPCI-X InterfacePCI-X Bridge Local Bus No32-bit32-bit XOR YesYesYes Other 2x GbE MACS, CRC32C
