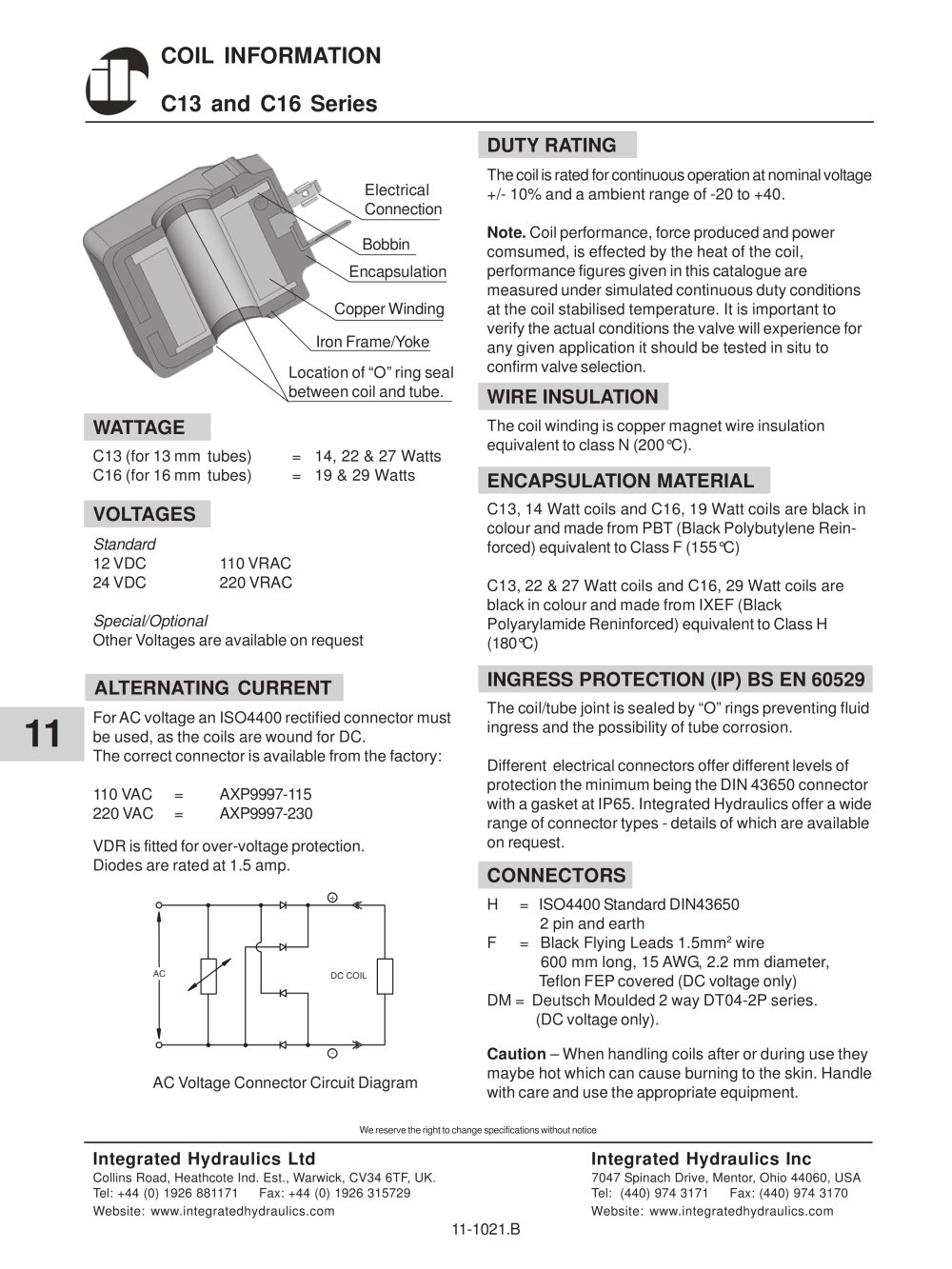

| COIL INFORMATION C13 and C16 Series | ||||||||||||||||||||||||||||||||||||||||||||||
| DUTY RATING | ||||||||||||||||||||||||||||||||||||||||||||||
| The coil is rated for continuous operation at nominal voltage +/- 10% and a ambient range of -20 to +40. Note. Coil performance, force produced and power comsumed, is effected by the heat of the coil, performance figures given in this catalogue are measured under simulated continuous duty conditions at the coil stabilised temperature. It is important to verify the actual conditions the valve will experience for any given application it should be tested in situ to confirm valve selection. WIRE INSULATION The coil winding is copper magnet wire insulation equivalent to class N (200°C). ENCAPSULATION MATERIAL C13, 14 Watt coils and C16, 19 Watt coils are black in colour and made from PBT (Black Polybutylene Reinforced) equivalent to Class F (155°C) C13, 22 & 27 Watt coils and C16, 29 Watt coils are black in colour and made from IXEF (Black Polyarylamide Reninforced) equivalent to Class H (180°C) INGRESS PROTECTION (IP) BS EN 60529 The coil/tube joint is sealed by "O" rings preventing fluid ingress and the possibility of tube corrosion. Different electrical connectors offer different levels of protection the minimum being the DIN 43650 connector with a gasket at IP65. Integrated Hydraulics offer a wide range of connector types - details of which are available on request. CONNECTORS H = ISO4400 Standard DIN43650 2 pin and earth F = Black Flying Leads 1.5mm2 wire 600 mm long, 15 AWG, 2.2 mm diameter, Teflon FEP covered (DC voltage only) DM = Deutsch Moulded 2 way DT04-2P series. (DC voltage only). Caution - When handling coils after or during use they maybe hot which can cause burning to the skin. Handle with care and use the appropriate equipment. | ||||||||||||||||||||||||||||||||||||||||||||||
| Electrical Connection | ||||||||||||||||||||||||||||||||||||||||||||||
| Encapsulation | ||||||||||||||||||||||||||||||||||||||||||||||
| Copper Winding | ||||||||||||||||||||||||||||||||||||||||||||||
| Location of "O" ring seal between coil and tube. | ||||||||||||||||||||||||||||||||||||||||||||||
| WATTAGE C13 (for 13 mm tubes) C16 (for 16 mm tubes) VOLTAGES | ||||||||||||||||||||||||||||||||||||||||||||||
| 14, 22 & 27 Watts 19 & 29 Watts | ||||||||||||||||||||||||||||||||||||||||||||||
| Standard 12 VDC 24 VDC | ||||||||||||||||||||||||||||||||||||||||||||||
| 110 VRAC 220 VRAC | ||||||||||||||||||||||||||||||||||||||||||||||
| Special/Optional Other Voltages are available on request ALTERNATING CURRENT For AC voltage an ISO4400 rectified connector must be used, as the coils are wound for DC. The correct connector is available from the factory: | ||||||||||||||||||||||||||||||||||||||||||||||
| 11 | ||||||||||||||||||||||||||||||||||||||||||||||
| 110 VAC 220 VAC | AXP9997-115 AXP9997-230 | |||||||||||||||||||||||||||||||||||||||||||||
| VDR is fitted for over-voltage protection. Diodes are rated at 1.5 amp. | ||||||||||||||||||||||||||||||||||||||||||||||
| 0 | ||||||||||||||||||||||||||||||||||||||||||||||
| AC | ||||||||||||||||||||||||||||||||||||||||||||||
| DC COIL | ||||||||||||||||||||||||||||||||||||||||||||||
| AC Voltage Connector Circuit Diagram | ||||||||||||||||||||||||||||||||||||||||||||||
