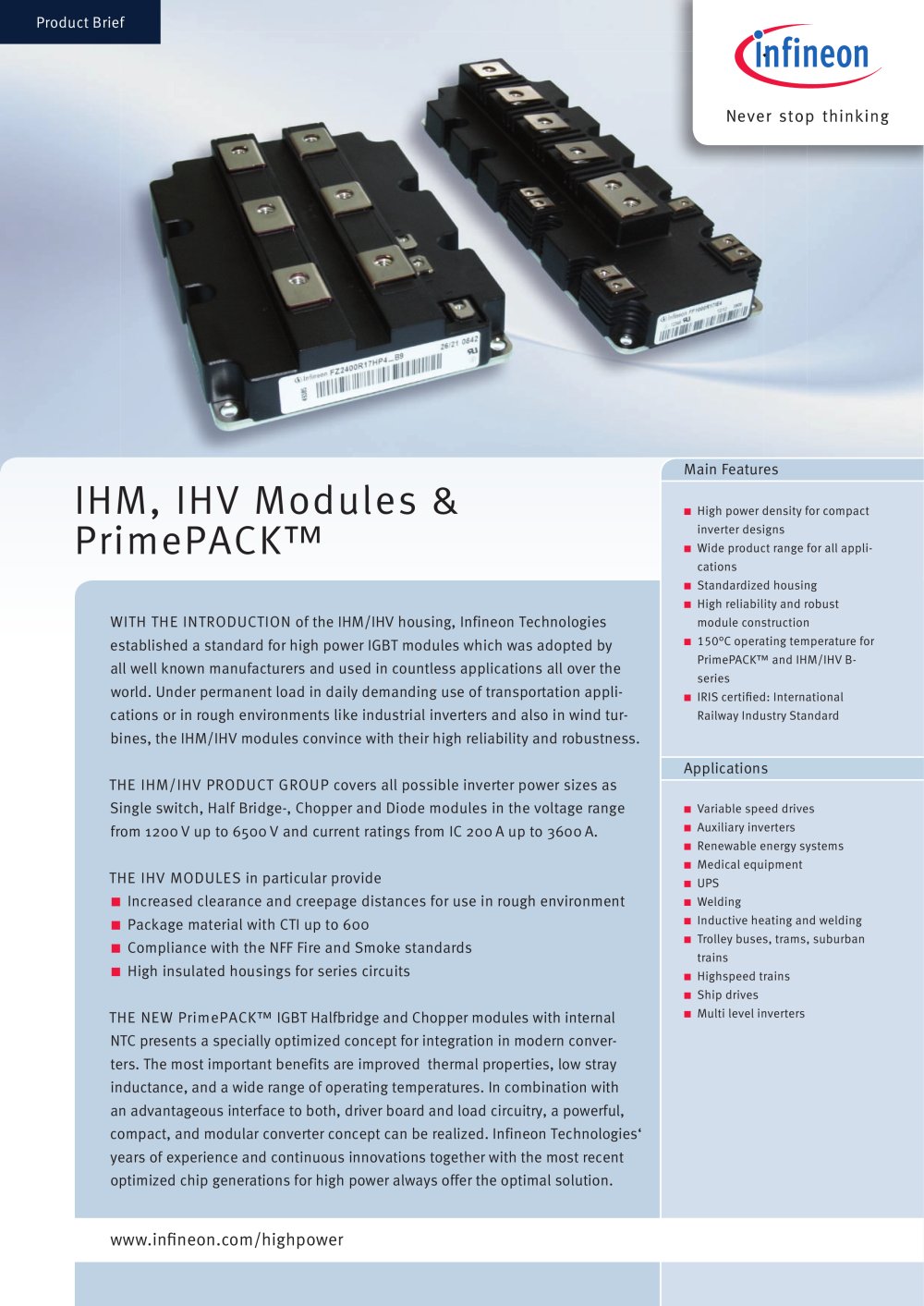

Product Brief Main Features

PrimePACK™ IGBT Modules - 17914 IHM, IHV Modules &PrimePACK™

N High power density for compact inverter designs
N Wide product range for all appli-cations
N Standardized housing
N High reliability and robust module construction

WITH THE INTRODUCTION of the IHM/IHV housing, Infineon Technologies established a standard for high power IGBT modules which was adopted by all well known manufacturers and used in countless applications all over the world. Under permanent load in daily demanding use of transportation appli-cations or in rough environments like industrial inverters and also in wind tur-bines, the IHM/IHV modules convince with their high reliability and robustness.THE IHM/IHV PRODUCT GROUP covers all possible inverter power sizes as Single switch, Half Bridge-, Chopper and Diode modules in the voltage range from 1200 V up to 6500 V and current ratings from IC 200 A up to 3600 A.THE IHV MODULES in particular provide

N °C operating temperature for PrimePACK™ and IHM/IHV B- series
N IRIS certifi ed: International Railway Industry Standard

Applications

N Variable speed drives
N Auxiliary inverters
N Renewable energy systems
N Medical equipment
N UPS N

Increased clearance and creepage distances for use in rough environment

N Welding N

Package material with CTI up to 600

N Inductive heating and welding

Compliance with the NFF Fire and Smoke standards

N Trolley buses, trams, suburban trains N N

High insulated housings for series circuitsTHE NEW PrimePACK™ IGBT Halfbridge and Chopper modules with internal NTC presents a specially optimized concept for integration in modern conver-ters. The most important benefits are improved thermal properties, low stray inductance, and a wide range of operating temperatures. In combination with an advantageous interface to both, driver board and load circuitry, a powerful, compact, and modular converter concept can be realized. Infineon Technologies‘ years of experience and continuous innovations together with the most recent optimized chip generations for high power always offer the optimal solution.

N Highspeed trains
N Ship drives
N Multi level inverters
