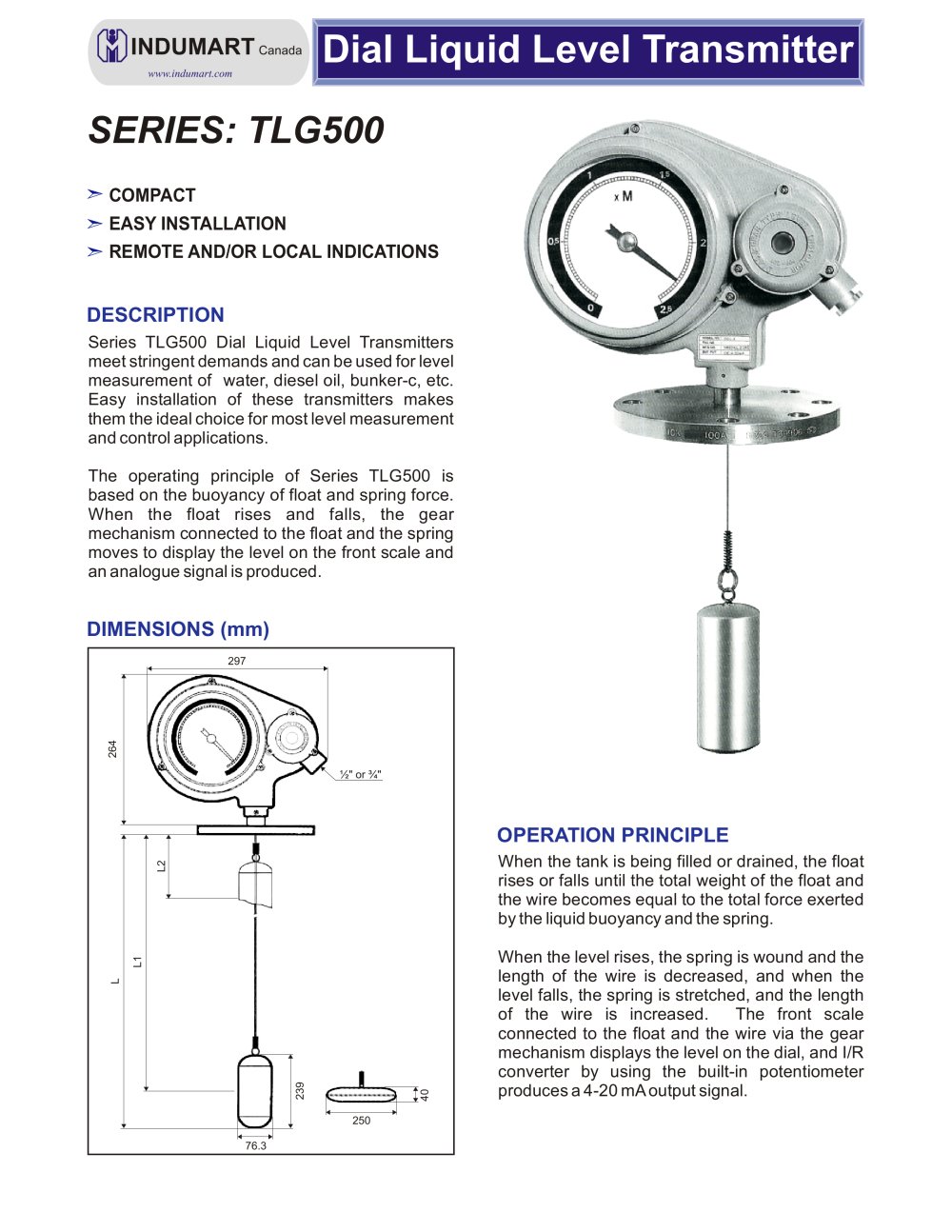

Dial Liquid Level Transmitter - 18985 Dial Liquid Level Transmitter

SERIES: TLG500

&&& COMPACTEASY INSTALLATIONREMOTE AND/OR LOCAL INDICATIONS

DESCRIPTION

Series TLG500 Dial Liquid Level Transmitters meet stringent demands and can be used for level measurement of water, diesel oil, bunker-c, etc. Easy installation of these transmitters makes them the ideal choice for most level measurement and control applications.The operating principle of Series TLG500 is based on the buoyancy of float and spring force. When the float rises and falls, the gear mechanism connected to the float and the spring moves to display the level on the front scale and an analogue signal is produced.

DIMENSIONS (mm)

297 264LL2L1 ½" or ¾"

OPERATION PRINCIPLE

When the tank is being filled or drained, the float rises or falls until the total weight of the float and the wire becomes equal to the total force exerted by the liquid buoyancy and the spring.When the level rises, the spring is wound and the length of the wire is decreased, and when the level falls, the spring is stretched, and the length of the wire is increased. The front scale connected to the float and the wire via the gear mechanism displays the level on the dial, and I/R converter by using the built-in potentiometer produces a 4-20
239 40 mA output signal.
250 76.3
