IROSS™ Line Frequency System for OCTG - Inductoheat - #2

Text version of the page

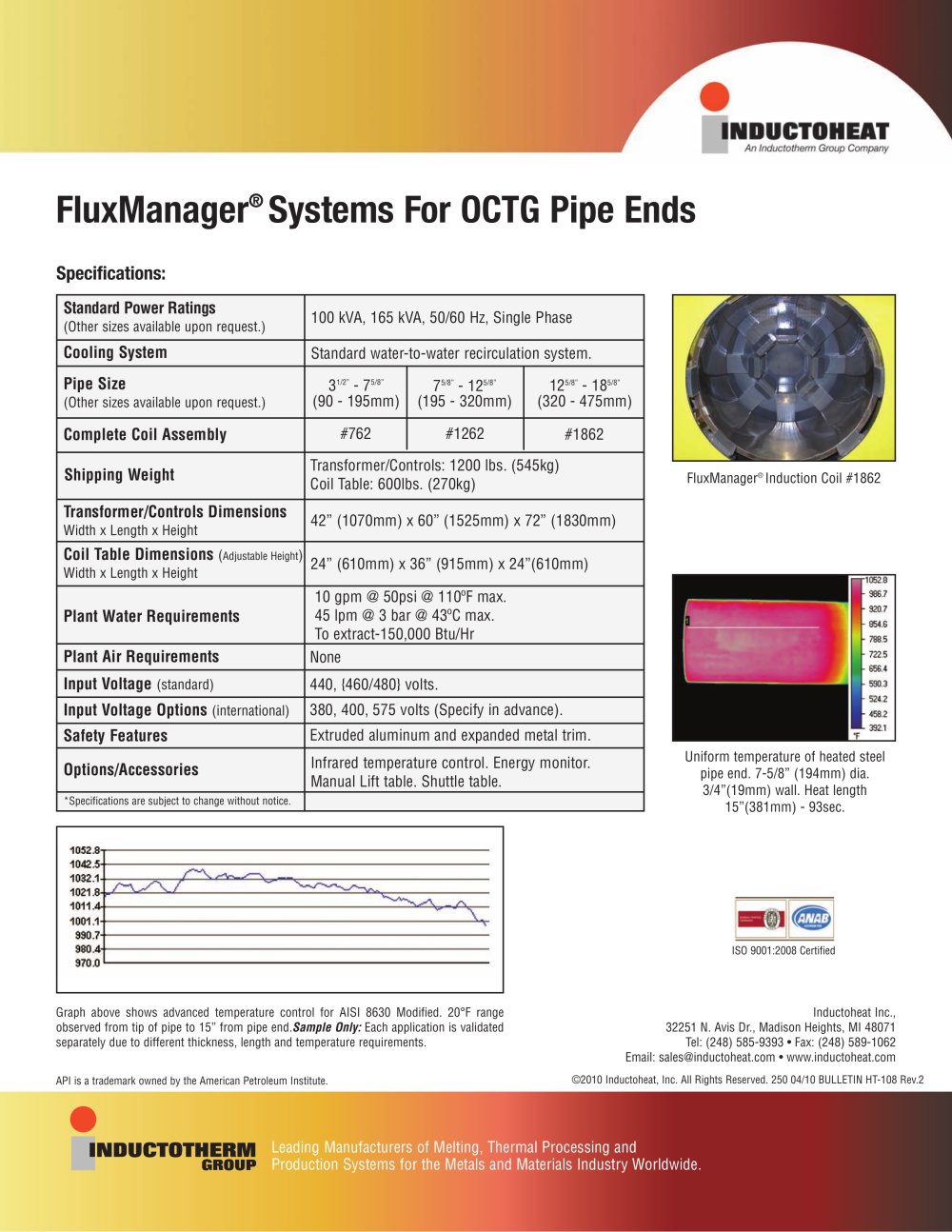

Inductoheat Inc., 32251 N. Avis Dr., Madison Heights, MI 48071 Tel: (248) 585-9393 • Fax: (248) 589-1062 Email: sales@inductoheat.com • www.inductoheat.com ©2010 Inductoheat, Inc. All Rights Reserved. 250 04/10 BULLETIN HT-108 Rev.2 Specifications: 100 kVA, 165 kVA, 50/60 Hz, Single Phase Standard water-to-water recirculation system. 10 gpm @ 50psi @ 110ºF max. 45 lpm @ 3 bar @ 43ºC max. To extract-150,000 Btu/Hr Extruded aluminum and expanded metal trim. 440, {460/480} volts. 380, 400, 575 volts (Specify in advance). Options/Accessories *Specifications are subject to change without notice. Graph above shows advanced temperature control for AISI 8630 Modified. 20°F range observed from tip of pipe to 15” from pipe end.Sample Only: Each application is validated separately due to different thickness, length and temperature requirements. FluxManager® Induction Coil #1862 Uniform temperature of heated steel pipe end. 7-5/8” (194mm) dia. 3/4”(19mm) wall. Heat length 15”(381mm) - 93sec. None Standard Power Ratings (Other sizes available upon request.) Cooling System Pipe Size (Other sizes available upon request.) Complete Coil Assembly Shipping Weight Transformer/Controls: 1200 lbs. (545kg) Coil Table: 600lbs. (270kg) 42” (1070mm) x 60” (1525mm) x 72” (1830mm) 24” (610mm) x 36” (915mm) x 24”(610mm) Transformer/Controls Dimensions Width x Length x Height Coil Table Dimensions (Adjustable Height) Width x Length x Height Plant Water Requirements Plant Air Requirements Safety Features Input Voltage (standard) Input Voltage Options (international) 31/2” - 75/8” (90 - 195mm) #762 #1262 #1862 75/8” - 125/8” (195 - 320mm) 125/8” - 185/8” (320 - 475mm) FluxManager® Systems For OCTG Pipe Ends Infrared temperature control. Energy monitor. Manual Lift table. Shuttle table. Leading Manufacturers of Melting, Thermal Processing and Production Systems for the Metals and Materials Industry Worldwide. ISO 9001:2008 Certified API is a trademark owned by the American Petroleum Institute.
