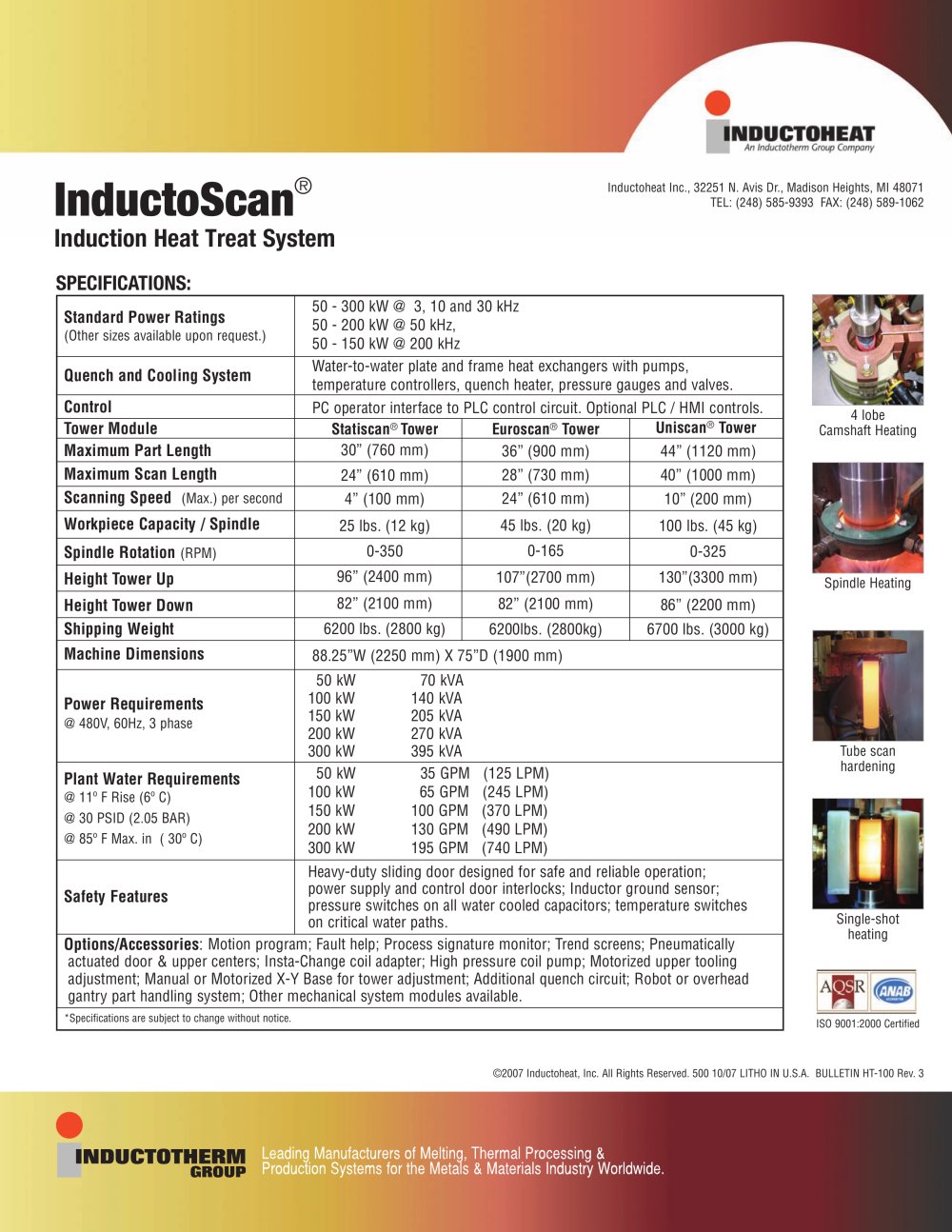

Inductoheat Inc., 32251 N. Avis Dr., Madison Heights, MI 48071 TEL: (248) 585-9393 FAX: (248) 589- SPECIFICATIONS: ISO 9001:2000 Certified InductoScan® Induction Heat Treat System ©2007 Inductoheat, Inc. All Rights Reserved. 500 10/07 LITHO IN U.S.A. BULLETIN HT-100 Standard Power Ratings (Other sizes available upon request.) Quench and Cooling System Control Tower Module Maximum Part Length Maximum Scan Length Scanning Speed (Max.) per second Workpiece Capacity / Spindle Spindle Rotation (RPM) Height Tower Up Height Tower Down Shipping Weight Machine Dimensions Power Requirements @ 480V, 60Hz, 3 phase Plant Water Requirements @ 11º F Rise (6º C) @ 30 PSID (2.05 BAR) @ 85º F Max. in ( 30º C) Safety Features 50 - 300 kW @ 3, 10 and 30 kHz 50 - 200 kW @ 50 kHz, 50 - 150 kW @ 200 kHz Water-to-water plate and frame heat exchangers with pumps, temperature controllers, quench heater, pressure gauges and valves. PC operator interface to PLC control circuit. Optional PLC / HMI controls. Statiscan® Tower 30” (760 mm) 24” (610 mm) 4” (100 mm) 25 lbs. (12 kg) 0-350 96” (2400 mm) 82” (2100 mm) 6200 lbs. (2800 kg) Euroscan® Tower 36” (900 mm) 28” (730 mm) 24” (610 mm) 45 lbs. (20 kg) 0-165 107”(2700 mm) 82” (2100 mm) 6200lbs. (2800kg) Uniscan® Tower 44” (1120 mm) 40” (1000 mm) 10” (200 mm) 100 lbs. (45 kg) 0-325 130”(3300 mm) 86” (2200 mm) 6700 lbs. (3000 kg) 88.25”W (2250 mm) X 75”D (1900 mm) 50 kW 70 kVA 100 kW 140 kVA 150 kW 205 kVA 200 kW 270 kVA 300 kW 395 kVA 50 kW 35 GPM (125 LPM) 100 kW 65 GPM (245 LPM) 150 kW 100 GPM (370 LPM) 200 kW 130 GPM (490 LPM) 300 kW 195 GPM (740 LPM) Heavy-duty sliding door designed for safe and reliable operation; power supply and control door interlocks; Inductor ground sensor; pressure switches on all water cooled capacitors; temperature switches on critical water paths. Options/Accessories: Motion program; Fault help; Process signature monitor; Trend screens; Pneumatically actuated door & upper centers; Insta-Change coil adapter; High pressure coil pump; Motorized upper tooling adjustment; Manual or Motorized X-Y Base for tower adjustment; Additional quench circuit; Robot or overhead gantry part handling system; Other mechanical system modules available. *Specifications are subject to change without notice. 4 lobe Camshaft Heating Spindle Heating Tube scan hardening Single-shot heating
