• Annealing • Axles • Bells • Gears • Hardening • Hubs • Shafts • Tempering

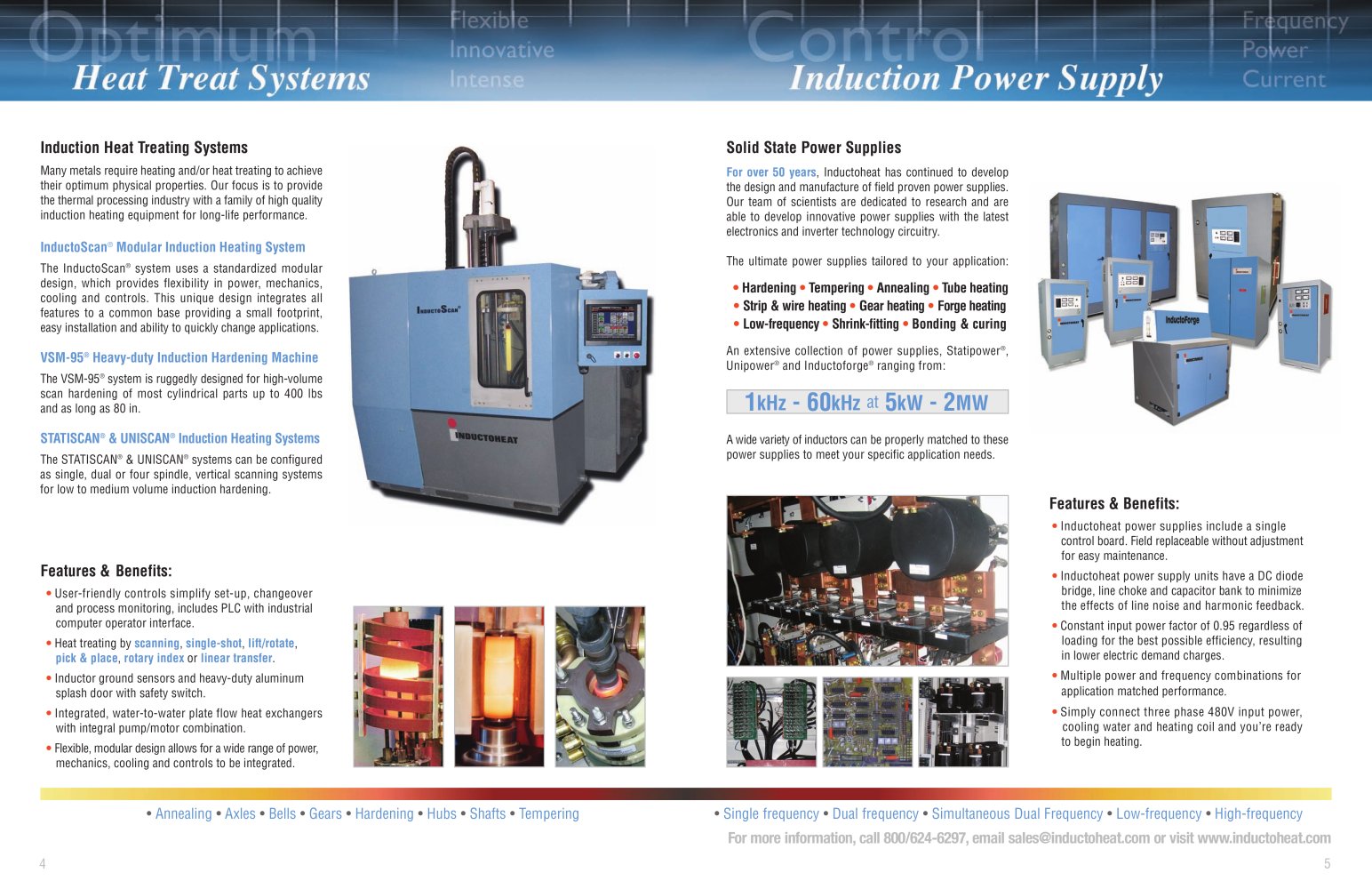

Induction Heat Treating Systems
Many metals require heating and/or heat treating to achieve
their optimum physical properties. Our focus is to provide
the thermal processing industry with a family of high quality
induction heating equipment for long-life performance.
InductoScan® Modular Induction Heating System
The InductoScan® system uses a standardized modular
design, which provides flexibility in power, mechanics,
cooling and controls. This unique design integrates all
features to a common base providing a small footprint,
easy installation and ability to quickly change applications.
VSM-95® Heavy-duty Induction Hardening Machine
The VSM-95® system is ruggedly designed for high-volume
scan hardening of most cylindrical parts up to 400 lbs
and as long as 80 in.
STATISCAN® & UNISCAN® Induction Heating Systems
The STATISCAN® & UNISCAN® systems can be configured
as single, dual or four spindle, vertical scanning systems
for low to medium volume induction hardening.
Features & Benefits:
• User-friendly controls simplify set-up, changeover
and process monitoring, includes PLC with industrial
computer operator interface.
• Heat treating by scanning, single-shot, lift/rotate,
pick & place, rotary index or linear transfer.
• Inductor ground sensors and heavy-duty aluminum
splash door with safety switch.
• Integrated, water-to-water plate flow heat exchangers
with integral pump/motor combination.
• Flexible, modular design allows for a wide range of power,
mechanics, cooling and controls to be integrated.
4
Solid State Power Supplies
For over 50 years, Inductoheat has continued to develop
the design and manufacture of field proven
power supplies.
Our team of scientists are dedicated to research and are
able to develop innovative
power supplies with the latest
electronics and inverter technology circuitry.
The ultimate
power supplies tailored to your application:
• Hardening • Tempering • Annealing • Tube heating
• Strip & wire heating • Gear heating • Forge heating
• Low-frequency • Shrink-fitting • Bonding & curing
An extensive collection of
power supplies, Statipower®,
Unipower® and Inductoforge® ranging from:
1kHz - 60kHz at 5kW - 2MW
A wide variety of inductors can be properly matched to these
power supplies to meet your specific application needs.
For more information, call 800/624-6297, email sales@inductoheat.com or visit www.inductoheat.com
• Single frequency • Dual frequency • Simultaneous Dual Frequency • Low-frequency • High-frequency
Features & Benefits:
• Inductoheat
power supplies include a single
control board. Field replaceable without adjustment
for easy maintenance.
• Inductoheat
power supply units have a DC diode
bridge, line choke and capacitor bank to minimize
the effects of line noise and harmonic feedback.
• Constant input power factor of 0.95 regardless of
loading for the best possible efficiency, resulting
in lower electric demand charges.
• Multiple power and frequency combinations for
application matched performance.
• Simply connect three phase 480V input power,
cooling water and heating coil and you’re ready
to begin heating.
5
