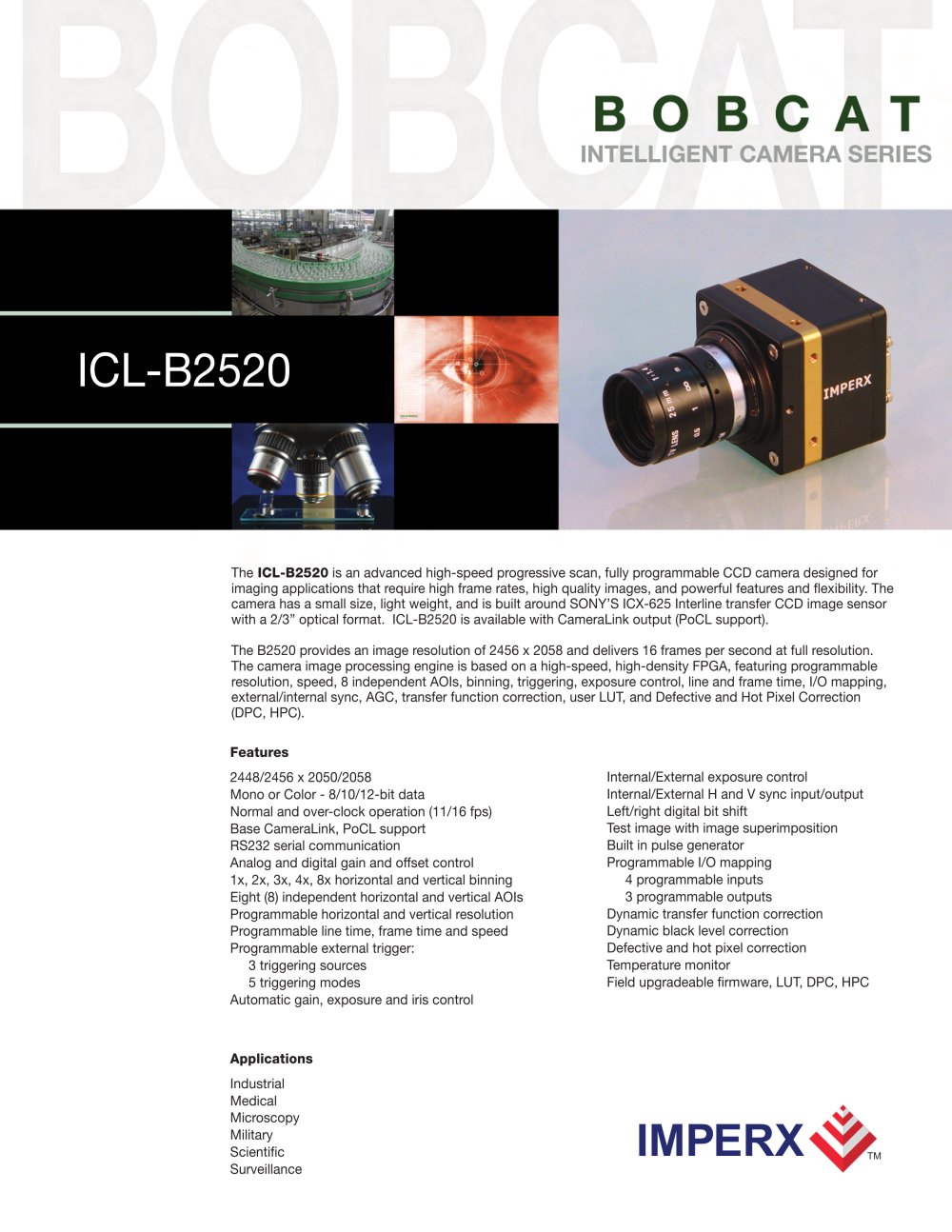

IMPERX TM Features 2448/2456 x 2050/2058 Mono or Color - 8/10/12-bit data Normal and over-clock operation (11/16 fps) Base CameraLink, PoCL support RS232 serial communication Analog and digital gain and offset control 1x, 2x, 3x, 4x, 8x horizontal and vertical binning Eight (8) independent horizontal and vertical AOIs Programmable horizontal and vertical resolution Programmable line time, frame time and speed Programmable external trigger: 3 triggering sources 5 triggering modes Automatic gain, exposure and iris control The ICL-B2520 is an advanced high-speed progressive scan, fully programmable CCD camera designed for imaging applications that require high frame rates, high quality images, and powerful features and flexibility. The camera has a small size, light weight, and is built around SONY’S ICX-625 Interline transfer CCD image sensor with a 2/3” optical format. ICL-B2520 is available with CameraLink output (PoCL support). The B2520 provides an image resolution of 2456 x 2058 and delivers 16 frames per second at full resolution. The camera image processing engine is based on a high-speed, high-density FPGA, featuring programmable resolution, speed, 8 independent AOIs, binning, triggering, exposure control, line and frame time, I/O mapping, external/internal sync, AGC, transfer function correction, user LUT, and Defective and Hot Pixel Correction (DPC, HPC). Internal/External exposure control Internal/External H and V sync input/output Left/right digital bit shift Test image with image superimposition Built in pulse generator Programmable I/O mapping 4 programmable inputs 3 programmable outputs Dynamic transfer function correction Dynamic black level correction Defective and hot pixel correction Temperature monitor Field upgradeable firmware, LUT, DPC, HPC ICL-B2520 Applications Industrial Medical Microscopy Military Scientific Surveillance
