Catalog excerpts

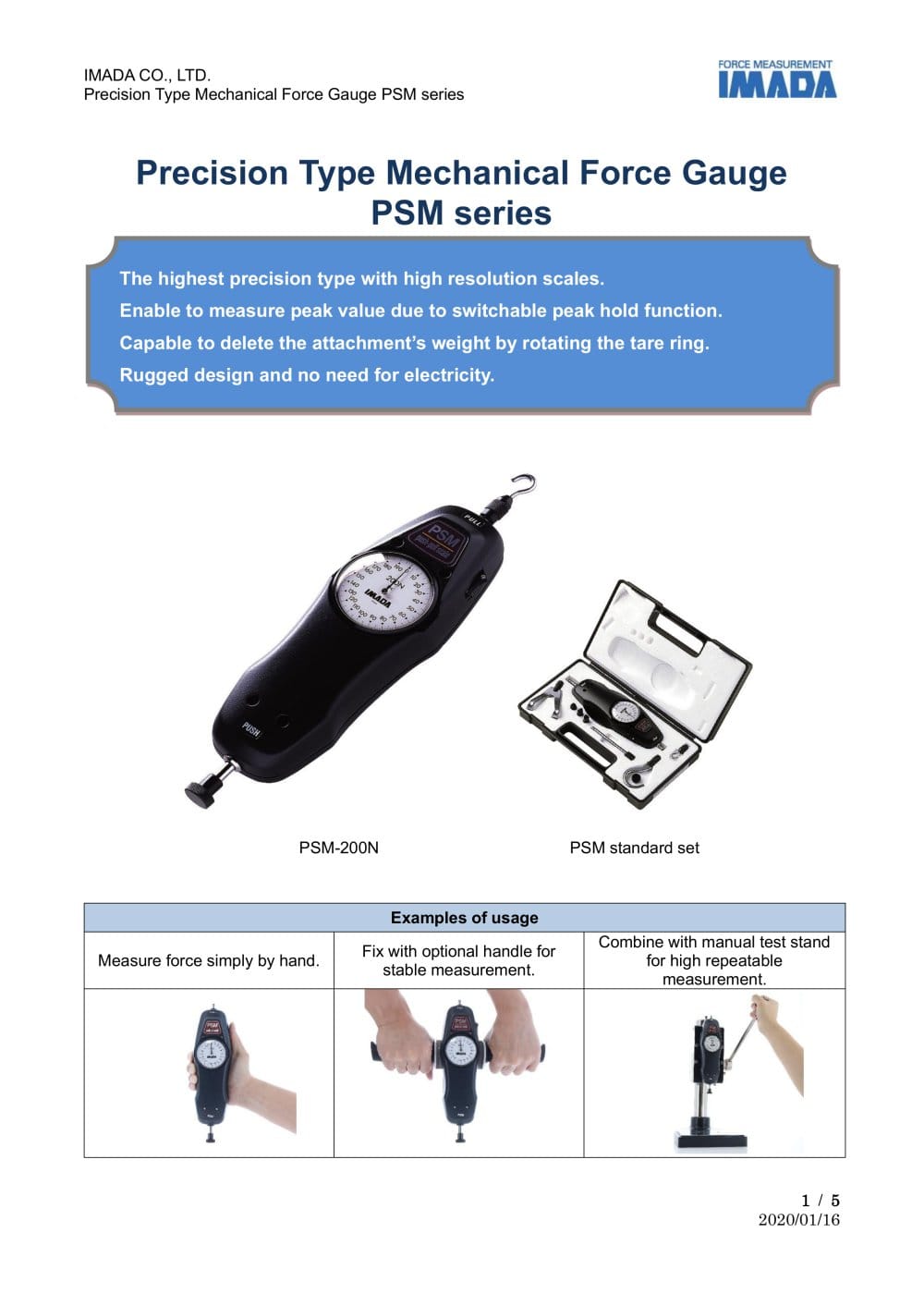

IMADA CO., LTD. Precision Type Mechanical Force Gauge PSM series Precision Type Mechanical Force Gauge PSM series The highest precision type with high resolution scales. Enable to measure peak value due to switchable peak hold function. Capable to delete the attachment’s weight by rotating the tare ring. Rugged design and no need for electricity. Examples of usage Measure force simply by hand. Fix with optional handle for stable measurement. Combine with manual test stand for high repeatable measurement.
Open the catalog to page 1IMADA CO., LTD. Precision Type Mechanical Force Gauge PSM series [Main Functions] * Tension measuring shaft Measure tension forces with the supplied attachments such as small hook, large hook and Y hook. * High resolution scales Accurate reading of measured value is possible due to the high resolution scales. * Compression measuring shaft Measure compress force with the supplied attachments such as flat tip, conical tip, chisel tip and notched tip. * Peak switch This switch activates or clears peak hold reading. * Tare ring Rotate the tare ring to delete the attachment weight or error cause...
Open the catalog to page 2FORCE MEASUREMENT FORCE MEASUREMENT IMADA CO., LTD. Precision Type Mechanical Force Gauge PSM series * International models are not able to sell in Japan due to the Measurement Act.
Open the catalog to page 3IMADA CO., LTD. Precision Type Mechanical Force Gauge PSM series Economical type Mechanical force gauge FB/FS series Standard type Mechanical force gauge PS/PSS series Hand grip belt HGB-1 Price saving push pull gauges with high accuracy. Available in capacity from 10N to 5QQN0_ Optional handle for a fire door closing measurement HDC-1 Standard model of push pull gauges with high accuracy and durability. Available in capacity from 5N to 500N. Simple Manual Test Stand SVL-1000N Combining a force gauge with this handle to apply force easily and more stably. Simple Manual Test Stand SVH-1000N...
Open the catalog to page 4IMADA CO., LTD. Precision Type Mechanical Force Gauge PSM series [Dimension] [Calibration certificate & ISO 17025 calibration services] - As an option, we offer calibration certificates and traceability charts with extra charges. Moreover, we can offer calibration services according to ISO/IEC17025: 2005. Contact us for details. [Cautions] - Information in this document is subject to change without prior notice. - This document is product descriptions and handling precautions, and do not guarantee various characteristics or safety. - This product is designed for force measurement purpose...
