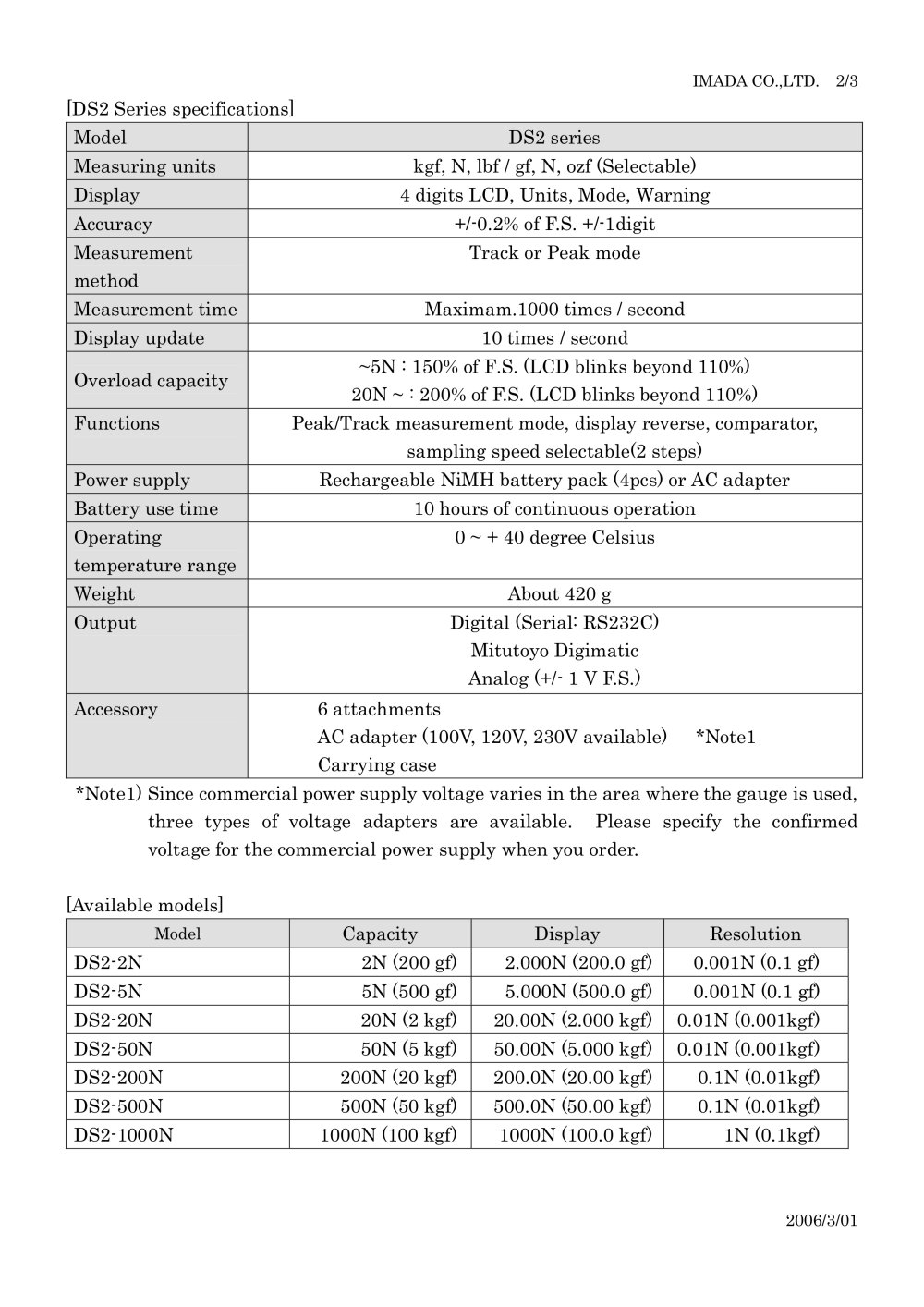

IMADA CO.,LTD. 2/3 [DS2 Series specifications] Model DS2 series Measuring units kgf, N, lbf / gf, N, ozf (Selectable) Display 4 digits LCD, Units, Mode, Warning Accuracy +/-0.2% of F.S. +/-1digit Measurement method Track or Peak mode Measurement time Maximam.1000 times / second Display update 10 times / second Overload capacity ~5N : 150% of F.S. (LCD blinks beyond 110%) 20N ~ : 200% of F.S. (LCD blinks beyond 110%) Functions Peak/Track measurement mode, display reverse, comparator, sampling speed selectable(2 steps) Power supply Rechargeable Nimh battery pack (4pcs) or AC adapter Battery use time 10 hours of continuous operation Operating temperature range 0 ~ + 40 degree Celsius Weight About 420 g Output Digital (Serial: RS232C) Mitutoyo Digimatic Analog (+/- 1 V F.S.) Accessory 6 attachments AC adapter (100V, 120V, 230V available) *Note1 Carrying case *Note1) Since commercial power supply voltage varies in the area where the gauge is used, three types of voltage adapters are available. Please specify the confirmed voltage for the commercial power supply when you order. [Available models]
Model Capacity Display Resolution DS2-2N 2N (200 gf) 2.000N (200.0 gf) 0.001N (0.1 gf) DS2-5N 5N (500 gf) 5.000N (500.0 gf) 0.001N (0.1 gf) DS2-20N 20N (2 kgf) 20.00N (2.000 kgf) 0.01N (0.001kgf) DS2-50N 50N (5 kgf) 50.00N (5.000 kgf) 0.01N (0.001kgf) DS2-200N 200N (20 kgf) 200.0N (20.00 kgf) 0.1N (0.01kgf) DS2-500N 500N (50 kgf) 500.0N (50.00 kgf) 0.1N (0.01kgf) DS2-1000N 1000N (100 kgf) 1000N (100.0 kgf) 1N (0.1kgf)
2006/3/01
