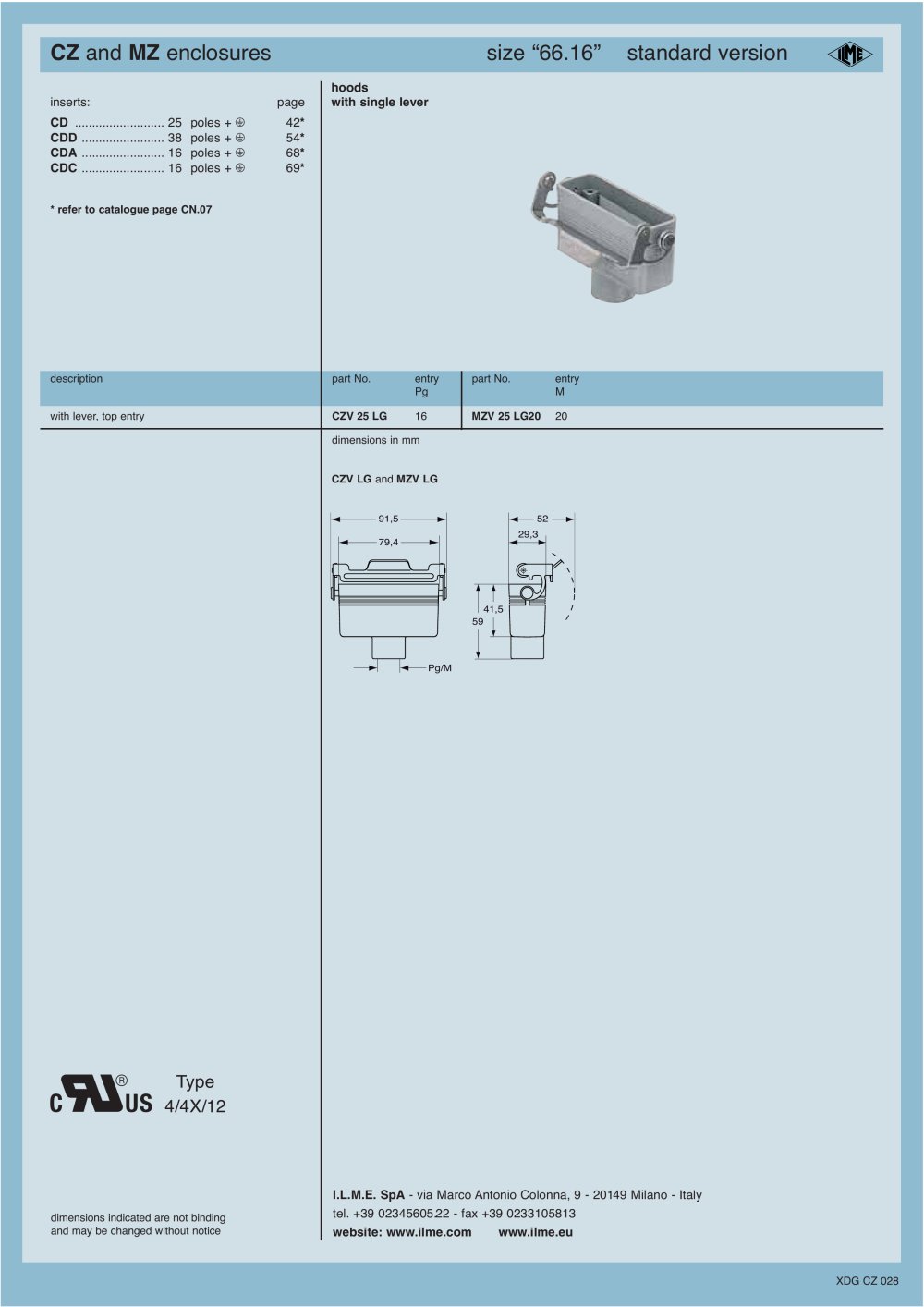

CZ and MZ enclosuressize “66.16” standard version

hoods with single lever inserts: page CD ..........................25poles + m 42 *CDD ........................38poles + m 54 *CDA ........................16poles + m 68 *CDC ........................16poles + m 69 *
* refer to catalogue page CN.07 descriptionpart No. entrypart No. entryPgM with lever, top entry CZV 25 LG 16 MZV 25 LG20 20 dimensions in mm CZV LG and MZV LG 91,5 5229,3 79,4 41,5 59 Pg/M

New 2008-2009 - 39355 E

Type 4/4X/12

I.L.M.E. SpA - via Marco Antonio Colonna, 9 - 20149 Milano - Italytel. +39 02345605.22 - fax +39 0233105813
dimensions indicated are not bindingand may be changed without notice website: www.ilme.com www.ilme.eu
XDG CZ 028
