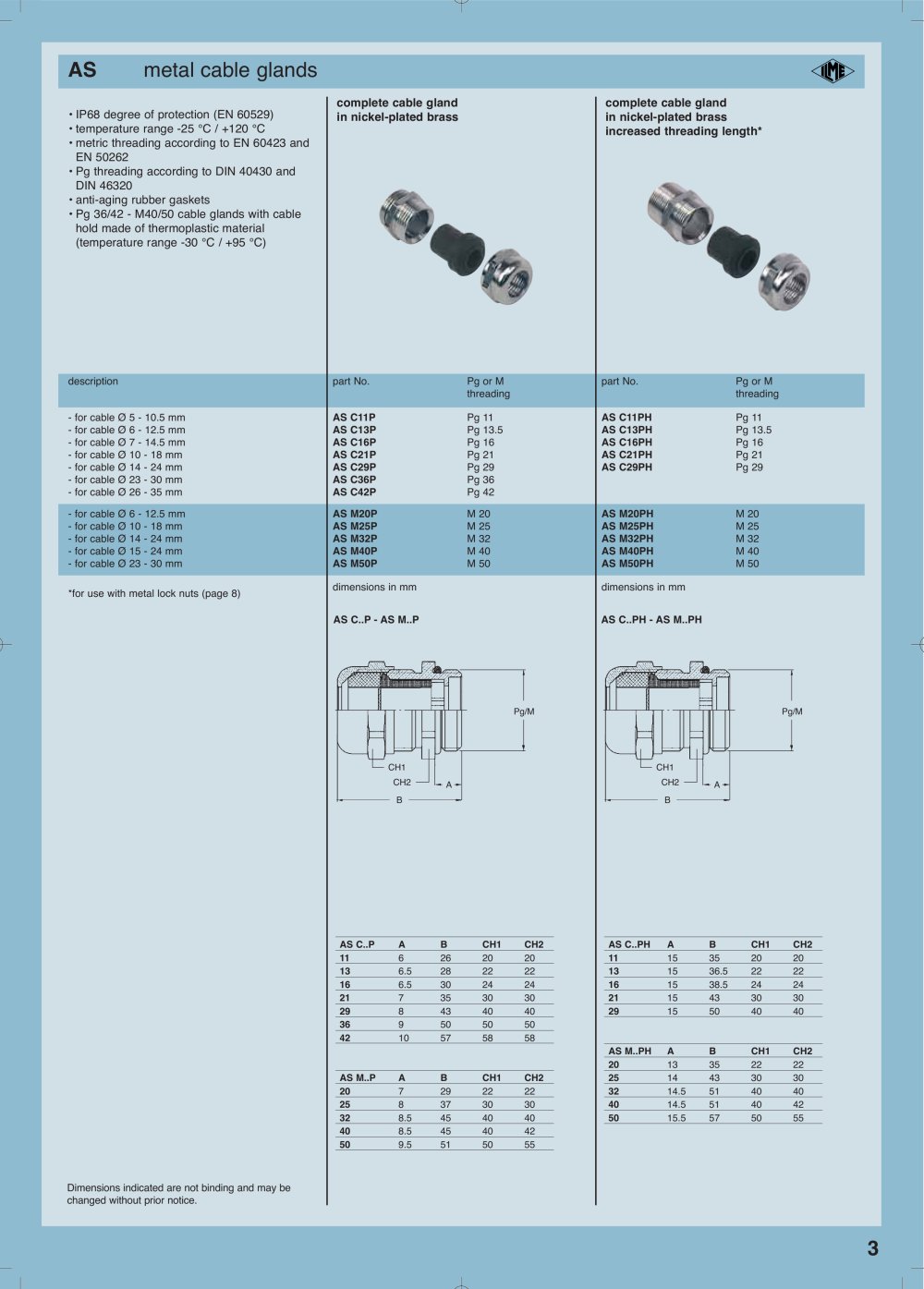

AS metal cable glands

complete cable glandin nickel-plated brass increased threading length*complete cable glandin nickel-plated brass • IP68 degree of protection (EN60529) • temperature range -25 °C / +120 °C • metric threading according to EN 60423 andEN 50262• Pg threading according to DIN 40430 andDIN 46320• anti-aging rubber gaskets • Pg 36/42 - M40/50 cable glands with cablehold made of thermoplastic material (temperature range -30 °C / +95 °C)

descriptionpart No.Pg or Mpart No.Pg or Mthreadingthreading - for cable Ø 5 - 10.5 mm AS C11P Pg 11 AS C11PH Pg 11- for cable Ø 6 - 12.5 mm AS C13P Pg 13.5 AS C13PH Pg 13.5- for cable Ø 7 - 14.5 mm AS C16P Pg 16 AS C16PH Pg 16- for cable Ø 10 - 18 mm AS C21P Pg 21 AS C21PH Pg 21- for cable Ø 14 - 24 mm AS C29P Pg 29 AS C29PH Pg 29- for cable Ø 23 - 30 mm AS C36P Pg 36- for cable Ø 26 - 35 mm AS C42P Pg 42 - for cable Ø 6 - 12.5 mm AS M20P M 20 AS M20PH M 20- for cable Ø 10 - 18 mm AS M25P M 25 AS M25PH M 25- for cable Ø 14 - 24 mm AS M32P M 32 AS M32PH M 32- for cable Ø 15 - 24 mm AS M40P M 40 AS M40PH M 40- for cable Ø 23 - 30 mm AS M50P M 50 AS M50PH M 50 *for use with metal lock nuts (page 8) dimensions in mmdimensions in mm AS C..P- AS M..PAS C..PH - AS M..PH
Pg/MCH1BCH2A Pg/MCH1BCH2A AS C..PABCH1CH2 AS C..PHABCH1CH2 11 6262020 11 15352020 13 6.5282222 13 1536.52222 16 6.5302424 16 1538.52424 21 7353030 21 15433030 29 8434040 29 15504040 36 9505050 42 10575858 AS M..PHABCH1CH2 20 13352222 AS M..PABCH1CH2 25 14433030 20 7292222 32 14.5514040 25 8373030 40 14.5514042 32 8.5454040 50 15.5575055 40 8.5454042 50 9.5515055 Dimensions indicated are not binding and may bechanged without prior notice.

3
