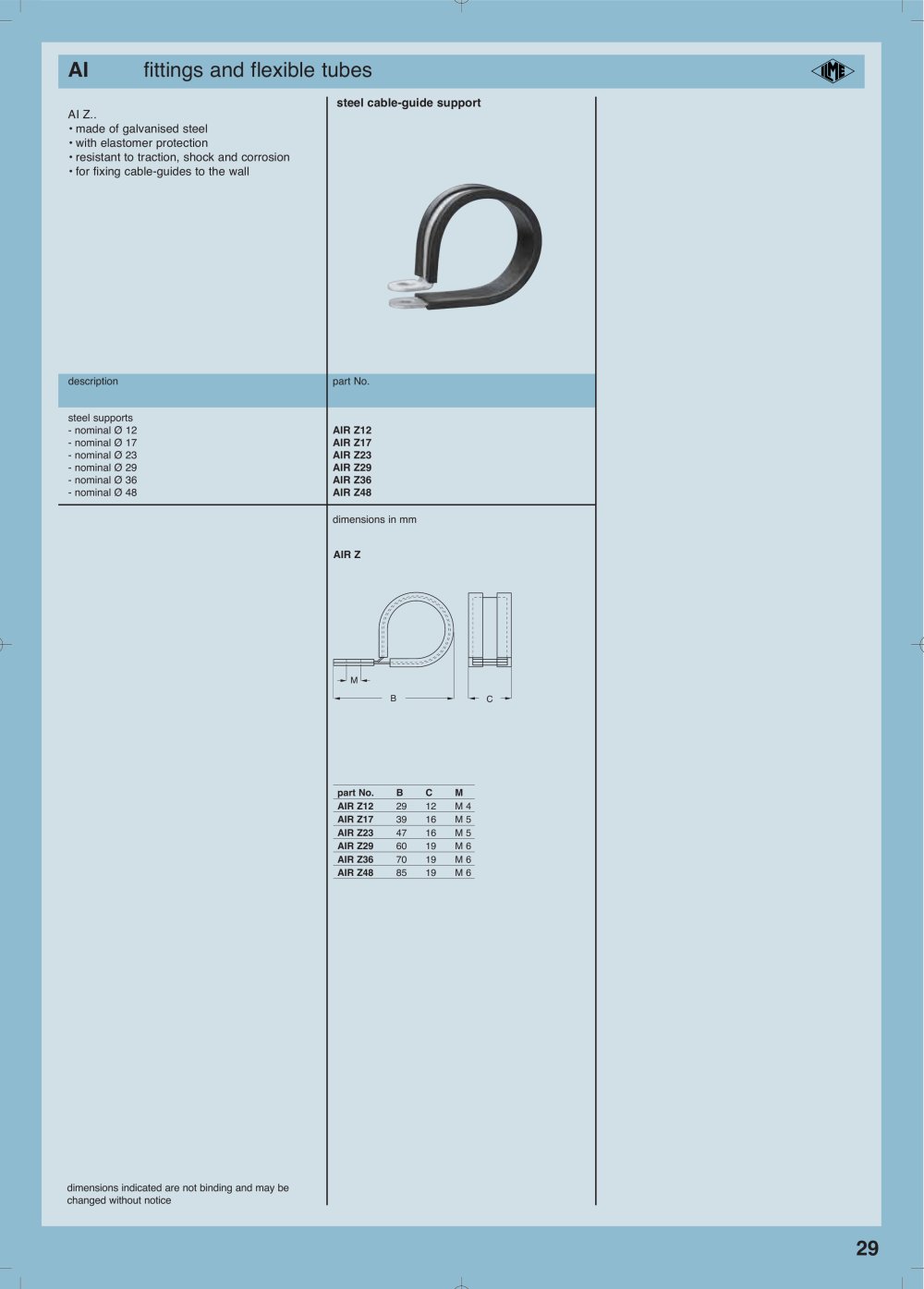

AI fittings and flexible tubes
steel cable-guide support AI Z..• made of galvanised steel • with elastomer protection • resistant to traction, shock and corrosion • for fixing cable-guides to the wall
descriptionpart No.steel supports- nominal Ø 12 AIR Z12 - nominal Ø 17 AIR Z17 - nominal Ø 23 AIR Z23 - nominal Ø 29 AIR Z29 - nominal Ø 36 AIR Z36 - nominal Ø 48 AIR Z48 dimensions in mm AIR ZM CB part No.BCM AIR Z12 2912M 4 AIR Z17 3916M 5 AIR Z23 4716M 5 AIR Z29 6019M 6 AIR Z36 7019M 6 AIR Z48 8519M 6 dimensions indicated are not binding and may bechanged without notice
