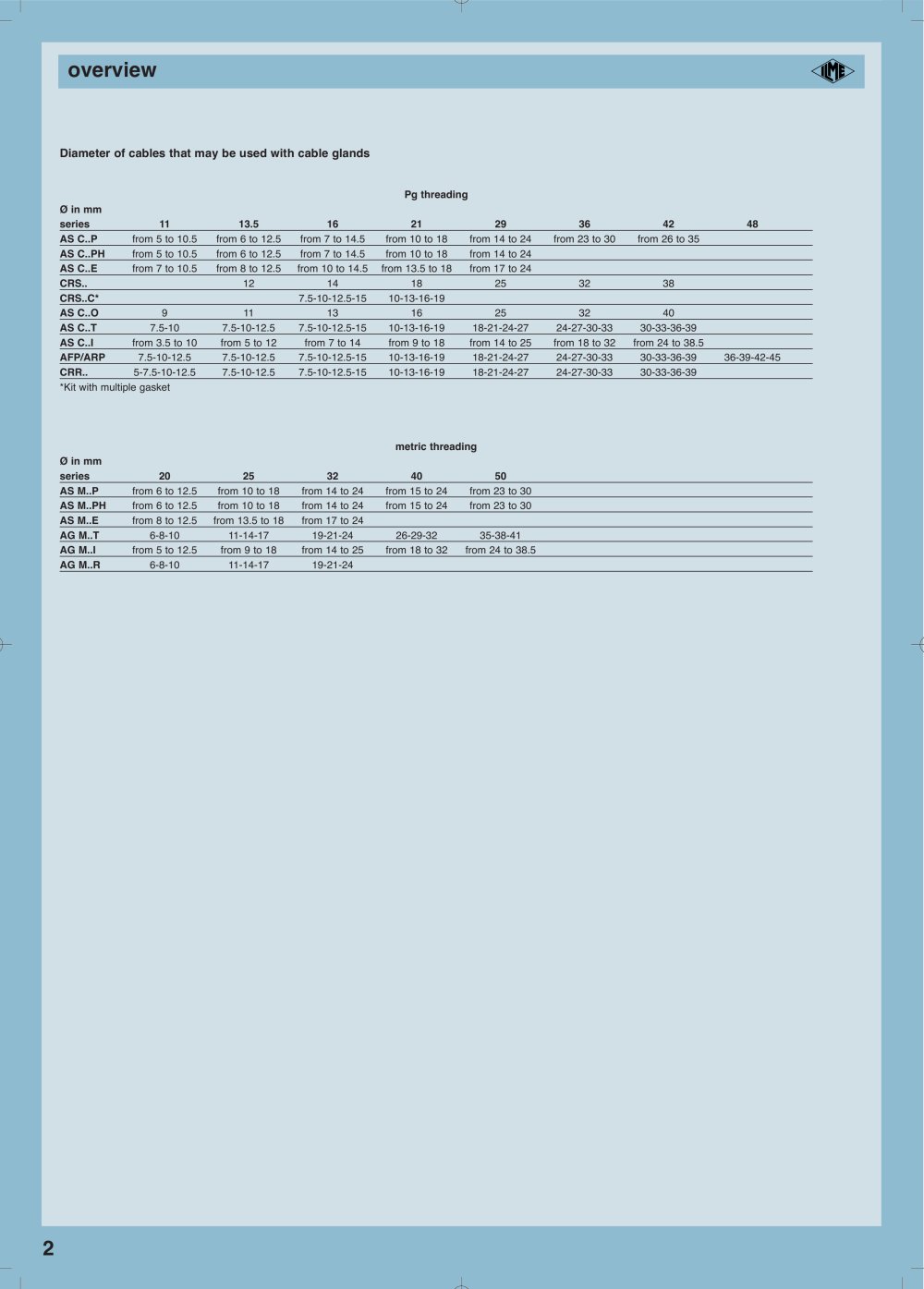

overview
Diameter of cables that may be used with cable glands
Pg threading
0 in mm series
11
13.5
16
21
29
36
42
48
AS C..P
from 5 to 10.5
from 6 to 12.5
from 7 to 14.5
from 10 to 18
from 14 to 24
from 23 to 30
from 26 to 35
AS C..PH
from 5 to 10.5
from 6 to 12.5
from 7 to 14.5
from 10 to 18
from 14 to 24
AS C..E
from 7 to 10.5
from 8 to 12.5
from 10 to 14.5
from 13.5 to 18
from 17 to 24
CRS..
12
14
18
25
32
38
CRS..C*
7.5-10-12.5-15
10-13-16-19
AS C..O
9
11
13
16
25
32
40
AS C..T
7.5-10
7.5-10-12.5
7.5-10-12.5-15
10-13-16-19
18-21-24-27
24-27-30-33
30-33-36-39
from 3.5 to 10
from 5 to 12
from 7 to 14
from 9 to 18
from 14 to 25
from 18 to 32
from 24 to 38.5
AFP/ARP
7.5-10-12.5
7.5-10-12.5
7.5-10-12.5-15
10-13-16-19
18-21-24-27
24-27-30-33
30-33-36-39 36-39-42-45
CRR..
5-7.5-10-12.5
7.5-10-12.5
7.5-10-12.5-15
10-13-16-19
18-21-24-27
24-27-30-33
30-33-36-39
*Kit with multiple gasket
metric threading
0 in mm
series
20
25
32
40
50
AS M..P
from 6 to 12.5
from 10 to 18
from 14 to 24
from 15 to 24
from 23 to 30
AS M..PH
from 6 to 12.5
from 10 to 18
from 14 to 24
from 15 to 24
from 23 to 30
AS M.. E
from 8 to 12.5
from 13.5 to 18
from 17 to 24
AG M..T
6-8-10
11-14-17
19-21-24
26-29-32
35-38-41
AG M..I
from 5 to 12.5
from 9 to 18
from 14 to 25
from 18 to 32
from 24 to 38.5
AG M.. R
6-8-10
11-14-17
19-21-24
2
