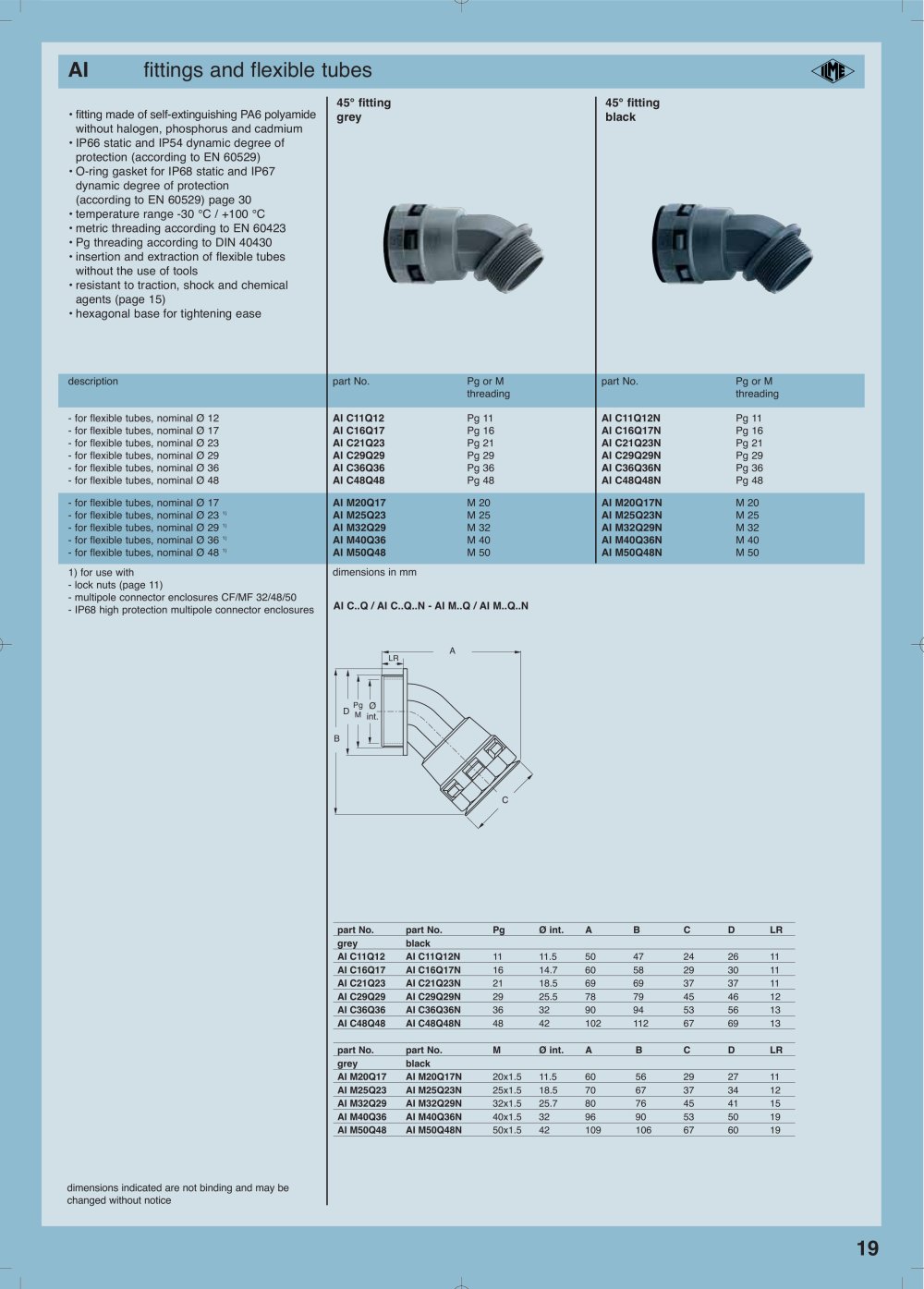

AI fittings and flexible tubes

45°fittinggrey45°fittingblack • fitting made of self-extinguishing PA6 polyamide without halogen, phosphorus and cadmium• IP66 static and IP54 dynamic degree ofprotection (according to EN 60529)• O-ring gasket for IP68 static and IP67dynamic degree of protection (according to EN 60529) page 30• temperature range -30 °C / +100 °C • metric threading according to EN 60423 • Pg threading according to DIN 40430 • insertion and extraction of flexible tubeswithout the use of tools• resistant to traction, shock and chemicalagents (page 15)• hexagonal base for tightening ease

descriptionpart No.Pg or Mpart No.Pg or Mthreadingthreading - for flexible tubes, nominal Ø 12 AI C11Q12 Pg 11 AI C11Q12N Pg 11- for flexible tubes, nominal Ø 17 AI C16Q17 Pg 16 AI C16Q17N Pg 16- for flexible tubes, nominal Ø 23 AI C21Q23 Pg 21 AI C21Q23N Pg 21- for flexible tubes, nominal Ø 29 AI C29Q29 Pg 29 AI C29Q29N Pg 29- for flexible tubes, nominal Ø 36 AI C36Q36 Pg 36 AI C36Q36N Pg 36- for flexible tubes, nominal Ø 48 AI C48Q48 Pg 48 AI C48Q48N Pg 48 - for flexible tubes, nominal Ø 17 AI M20Q17 M 20 AI M20Q17N M 20- for flexible tubes, nominal Ø 23
1) AI M25Q23 M 25 AI M25Q23N M 25- for flexible tubes, nominal Ø 29
1) AI M32Q29 M 32 AI M32Q29N M 32- for flexible tubes, nominal Ø 36
1) AI M40Q36 M 40 AI M40Q36N M 40- for flexible tubes, nominal Ø 48
1) AI M50Q48 M 50 AI M50Q48N M 50 1) for use with- lock nuts (page 11) - multipole connector enclosures CF/MF 32/48/50 - IP68 high protection multipole connector enclosures dimensions in mm AI C..Q / AI C..Q..N - AI M..Q / AI M..Q..N
LR PgM Øint. CBAD part No.part No.PgØ int.ABCDLR greyblack AIC11Q12AIC11Q12N 1111.55047242611 AIC16Q17AIC16Q17N 1614.76058293011 AIC21Q23AIC21Q23N 2118.56969373711 AIC29Q29AIC29Q29N 2925.57879454612 AIC36Q36AIC36Q36N 36329094535613 AIC48Q48AIC48Q48N 4842102112676913 part No.part No.MØ int.ABCDLR greyblack AIM20Q17AIM20Q17N 20x1.511.56056292711 AIM25Q23AIM25Q23N 25x1.518.57067373412 AIM32Q29AIM32Q29N 32x1.525.78076454115 AIM40Q36AIM40Q36N 40x1.5329690535019 AIM50Q48AIM50Q48N 50x1.542109106676019 dimensions indicated are not binding and may bechanged without notice
