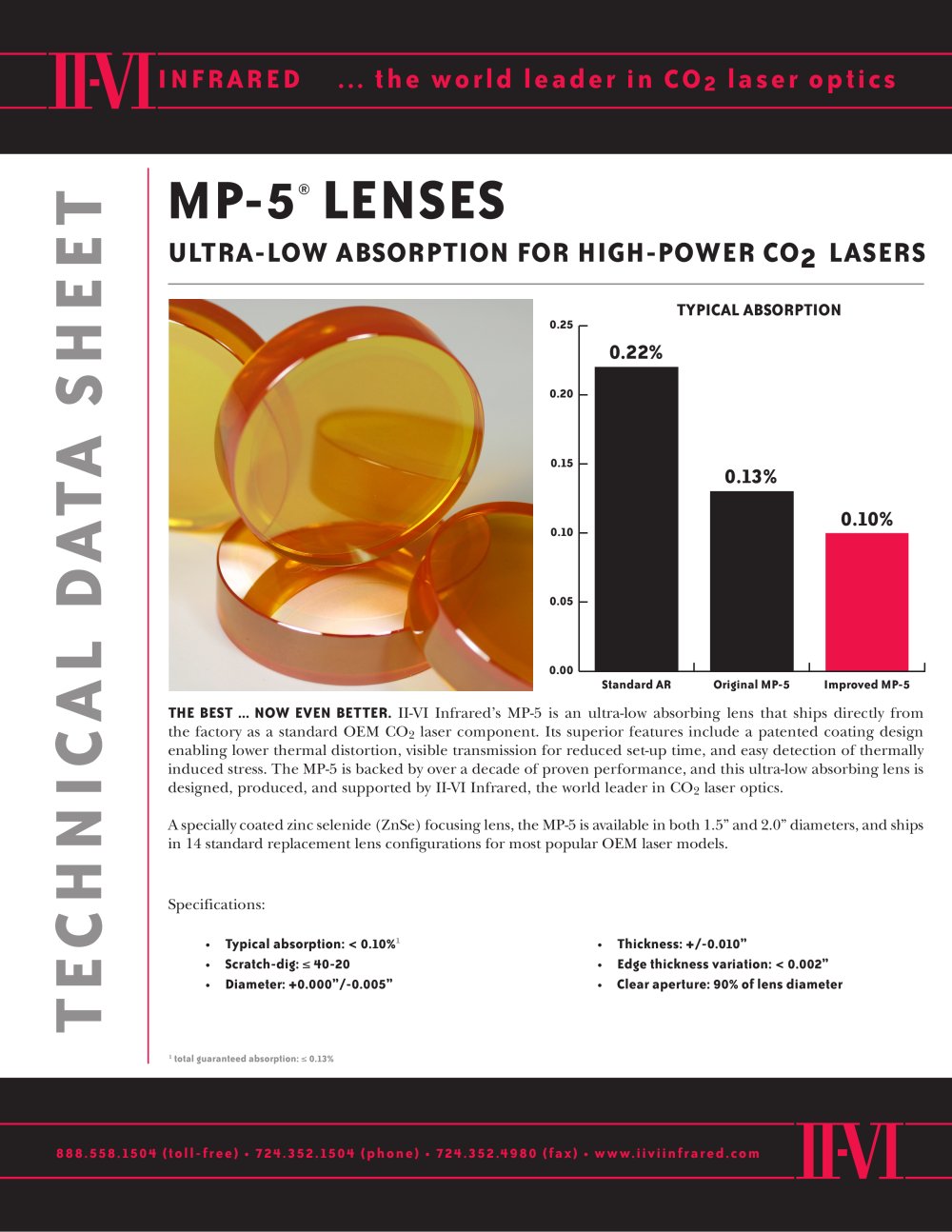

| | INFRARED ... the world leader in CO2 laser optics | | |||||||||
| | |||||||||||
| MP-5® LENSES ULTRA-LOW ABSORPTION FOR HIGH-POWER C02 LASERS | |||||||||||
| | |||||||||||
 |  | 0.25 | TYPICAL ABSORPTION | ||||||||
| 0.22%% | |||||||||||
| 0.20 |  | 0.13%% | |||||||||
| 0.15 | |||||||||||
| 0.10 |  | 0.10%% | |||||||||
 | 0.05 | ||||||||||
 |  |  | 0.00 I | ||||||||
| Standard AR | Original MP-5 | Improved MP-5 | |||||||||
| THE BEST ... NOW EVEN BETTER. II-VI Infrared's MP-5 is an ultra-low absorbing lens that ships directly from the factory as a standard OEM CO2 laser component. Its superior features include a patented coating design enabling lower thermal distortion, visible transmission for reduced set-up time, and easy detection of thermally induced stress. The MP-5 is backed by over a decade of proven performance, and this ultra-low absorbing lens is designed, produced, and supported by II-VI Infrared, the world leader in CO2 laser optics. A specially coated zinc selenide (ZnSe) focusing lens, the MP-5 is available in both 1.5" and 2.0" diameters, and ships in 14 standard replacement lens configurations for most popular OEM laser models. | |||||||||||
| Specifications: | Thickness: +/-0.010" Edge thickness variation: < 0.002" Clear aperture: 90% of lens diameter | ||||||||||
| Typical absorption: < 0.10% Scratch-dig: s 40-20 Diameter: +0.000"/-0.005" | |||||||||||
| | |||||||||||
| 1 total guaranteed absorotiorr s 0 13% | |||||||||||
| | |||||||||||
 | |||||||||||
| | |||||||||||
| | 888.558.1504 (toll-free) • 724.352.1504 (phone) • 724.352.4980 (fax) • www.iiviinfrared.com | | |||||||||
| | |||||||||||
