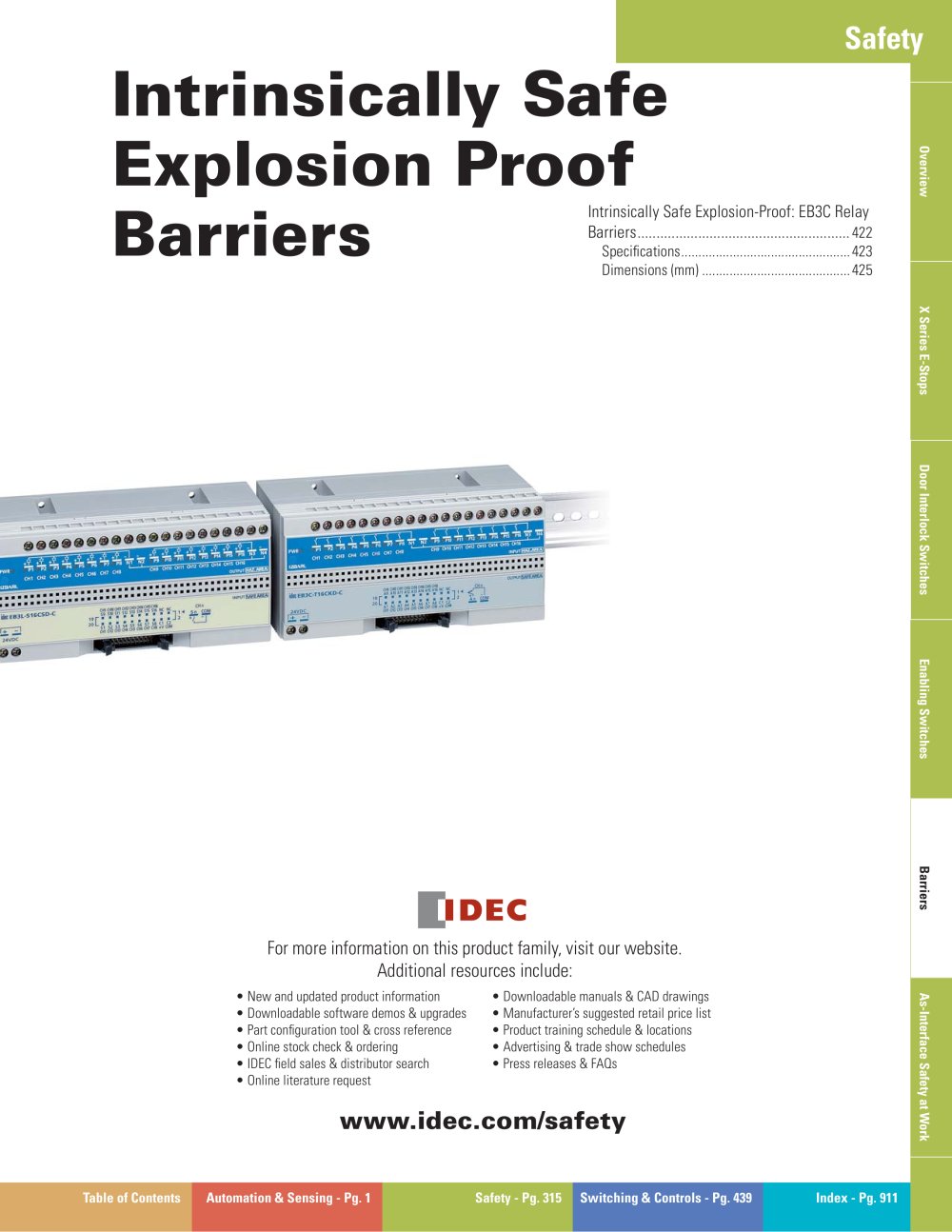

Complete Intrinsically Safe Barriers Catalog
6Pages

Add to favorites

{{requestButtons}}

Catalog excerpts

EB3C Key features include: > Explosion Protection Relay Barrier:[Exia] II C OverviewX Series E-StopsDoor Interlock Switches Enabling SwitchesBarriersAS-Interface Safety at Work IEC60079 compliantDry-contact switches with 0.5 maximum contact resistance can be connected to the EB3C.8- and 16-circuit types are available in common wiring types, ideal for connection to PLCs. Universal AC power voltage (100 to 240V AC) No grounding required. IDECs original spring-up terminals minimizes wiring time. Installation: 35-mm-wide DIN rail mounting or direct panel mounting Global usageUSA: FM Canada: CSA...

Open the catalog to page 2

Explosion Protection Intrinsic safety type (IEC compliant) [Exia] II C ACDCRated Voltage100 to 240V AC24V DC Allowable Voltage Range85 to 264V AC21.6 to 26.4V DCRated Frequency50/60 Hz (allowable range: 47 to 63 Hz)Inrush Current10A (100V AC)20A (200V AC)10ADielectric Strength(1 minute, 1 mA)Between intrinsically safe circuit and non-intrinsi-cally safe circuit: 1500V ACBetween AC power and output terminal: 1500V AC Between DC power and transistor output terminal: 1000V ACOperating Temperatureז20 to +60C (no freezing) Storage TemperatureЖ20 to +60C (no freezing) Operating Humidity45 to 85%...

Open the catalog to page 3

OverviewX Series E-StopsDoor Interlock Switches Enabling SwitchesBarriersAS-Interface Safety at Work
