IEC Contactors

D-4 USA: (800) 262-IDEC or (408) 747-0550, Canada: (888) 317-IDEC

D

Key features of the YS Series include: • Compact size• AC and DC coil, reversing and non-reversing• Weld-resistant silver alloy contacts• No cadium used in contacts• Highly reliable auxiliary contacts use bifurcated double bridge contact form• Direct panel mount with screws or 35mm DIN rail (9F to 65F) • Conforms to IEC standards: EN60947-1, EN60947-4-1, EN-60947-5-1• Approval standards: UL508 (UL File No. E67770, E184169)

Notes: 1. Use the above ordering information only when interpreting part numbers. Do not use for developing part numbers. 2. Please see tables on following pages for proper selection. 3. For speci�cations please see page D-16 through page D-34.

CE Certified

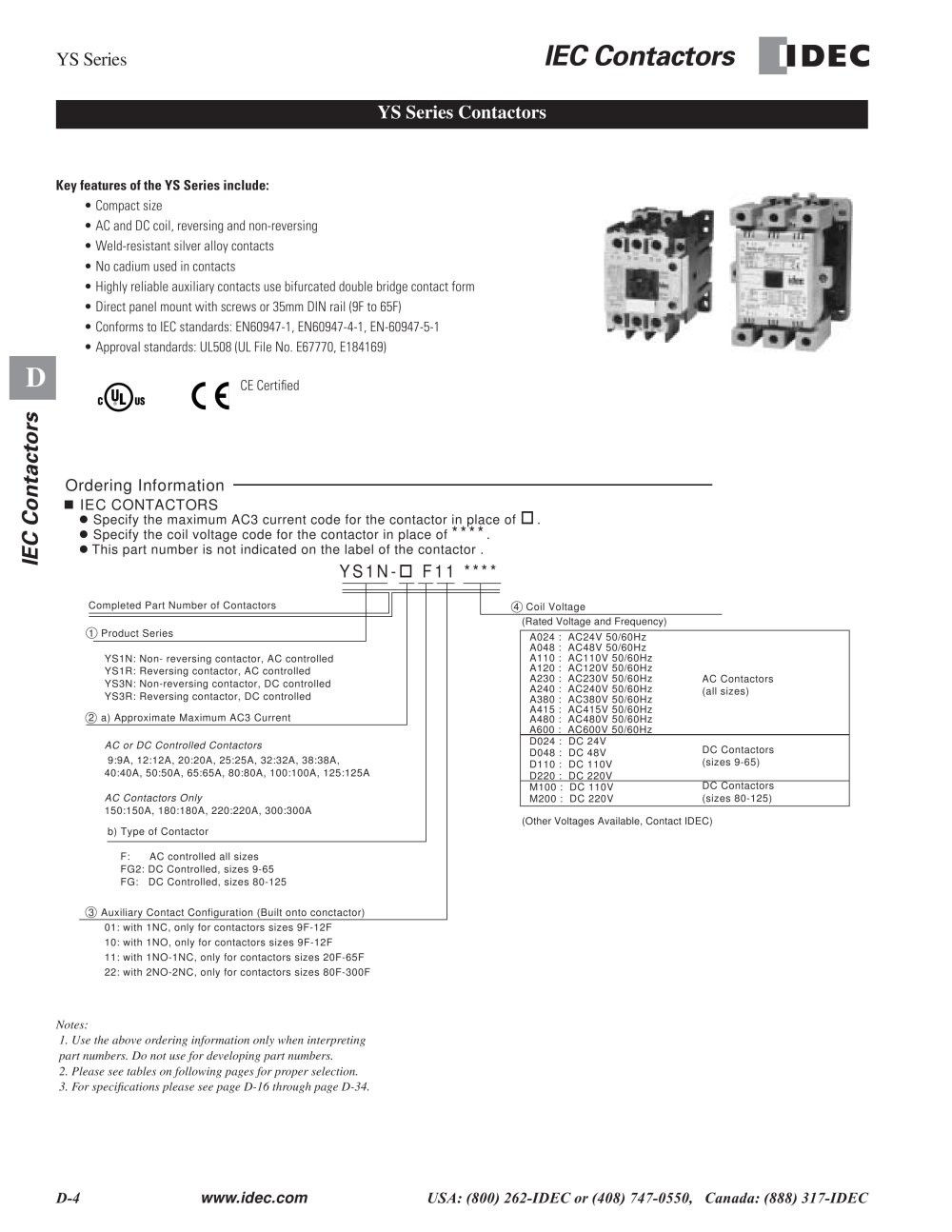

YS Series YS Series Contactors

Ordering Information

IEC CONTACTORS

Specify the maximum AC3 current code for the contactor in place of . Specify the coil voltage code for the contactor in place of

****

. This part number is not indicated on the label of the contactor .

IEC Contactors

YS1N- F11 ****

Completed Part Number of Contactors1 Product Series YS1N: Non- reversing contactor, AC controlled YS1R: Reversing contactor, AC controlled YS3N: Non-reversing contactor, DC controlled YS3R: Reversing contactor, DC controlled4 Coil Voltage 2 a) Approximate Maximum AC3 Current AC or DC Controlled Contactors D024 : DC 24V 9:9A, 12:12A, 20:20A, 25:25A, 32:32A, 38:38A, 40:40A, 50:50A, 65:65A, 80:80A, 100:100A, 125:125A AC Contactors Only 150:150A, 180:180A, 220:220A, 300:300A (Other Voltages Available, Contact IDEC)A600 : AC600V 50/60HzD110 : DC 110VD220 : DC 220V M100 : DC 110V M200 : DC 220VD048 : DC 48V b) Type of Contactor F: AC controlled all sizes FG2: DC Controlled, sizes 9-65 FG: DC Controlled, sizes 80-125 AC Contactors(all sizes)DC Contactors(sizes 9-65)DC Contactors(sizes 80-125) 3 Auxiliary Contact Configuration (Built onto conctactor) 01: with 1NC, only for contactors sizes 9F-12F 10: with 1NO, only for contactors sizes 9F-12F 11: with 1NO-1NC, only for contactors sizes 20F-65F 22: with 2NO-2NC, only for contactors sizes 80F-300F A024 : AC24V 50/60HzA048 : AC48V 50/60HzA110 : AC110V 50/60HzA120 : AC120V 50/60HzA230 : AC230V 50/60HzA240 : AC240V 50/60HzA380 : AC380V 50/60HzA415 : AC415V 50/60HzA480 : AC480V 50/60Hz(Rated Voltage and Frequency)
