Selection Guide

USA: (800) 262-IDEC or (408) 747-0550, Canada: (888) 317-IDECD-3

YS Series Contactors Catalog - 16475 D IEC Contactors

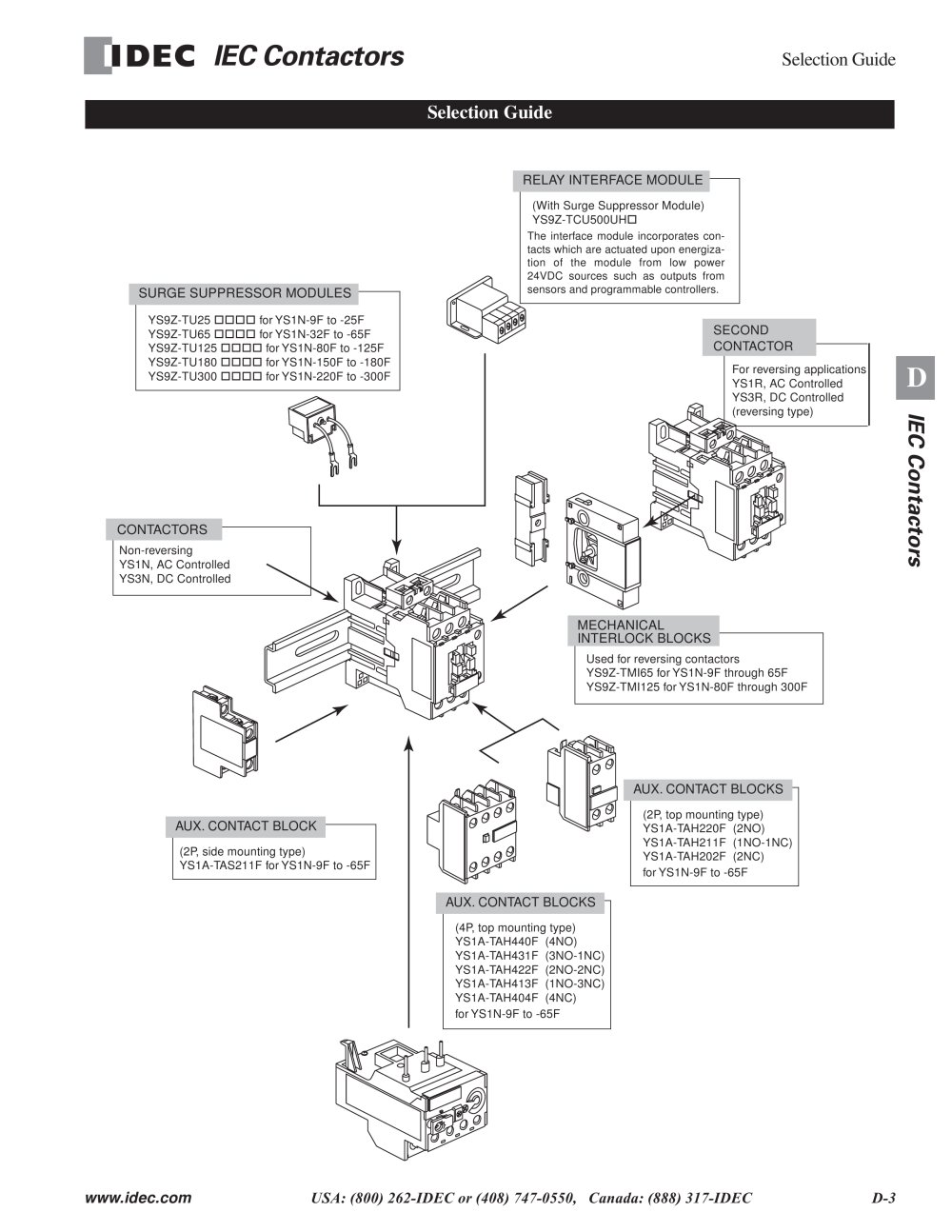

Selection Guide

RELAY INTERFACE MODULE

(With Surge Suppressor Module)YS9Z-TCU500UH
The interface module incorporates con-tacts which are actuated upon energiza- tion of the module from low power 24VDC sources such as outputs from sensors and programmable controllers.

SURGE SUPPRESSOR MODULES

YS9Z-TU25 for YS1N-9F to -25FYS9Z-TU65 for YS1N-32F to -65F YS9Z-TU125

SECONDCONTACTOR

for YS1N-80F to -125FYS9Z-TU180 for YS1N-150F to -180FYS9Z-TU300 for YS1N-220F to -300F For reversing applicationsYS1R, AC Controlled YS3R, DC Controlled(reversing type) Used for reversing contactorsYS9Z-TMI65 for YS1N-9F through 65F YS9Z-TMI125 for YS1N-80F through 300F
IEC Contactors

CONTACTORS

Non-reversingYS1N, AC Controlled YS3N, DC Controlled

MECHANICALINTERLOCK BLOCKS AUX. CONTACT BLOCKS

(2P, top mounting type) YS1A-TAH220F (2NO)YS1A-TAH211F (1NO-1NC)YS1A-TAH202F (2NC)for YS1N-9F to -65F

AUX. CONTACT BLOCK

(2P, side mounting type)YS1A-TAS211F for YS1N-9F to -65F

AUX. CONTACT BLOCKS

(4P, top mounting type)YS1A-TAH440F (4NO) YS1A-TAH431F (3NO-1NC) YS1A-TAH422F (2NO-2NC)YS1A-TAH413F (1NO-3NC)YS1A-TAH404F (4NC)for YS1N-9F to -65F
