IEC Contactors

Specifications

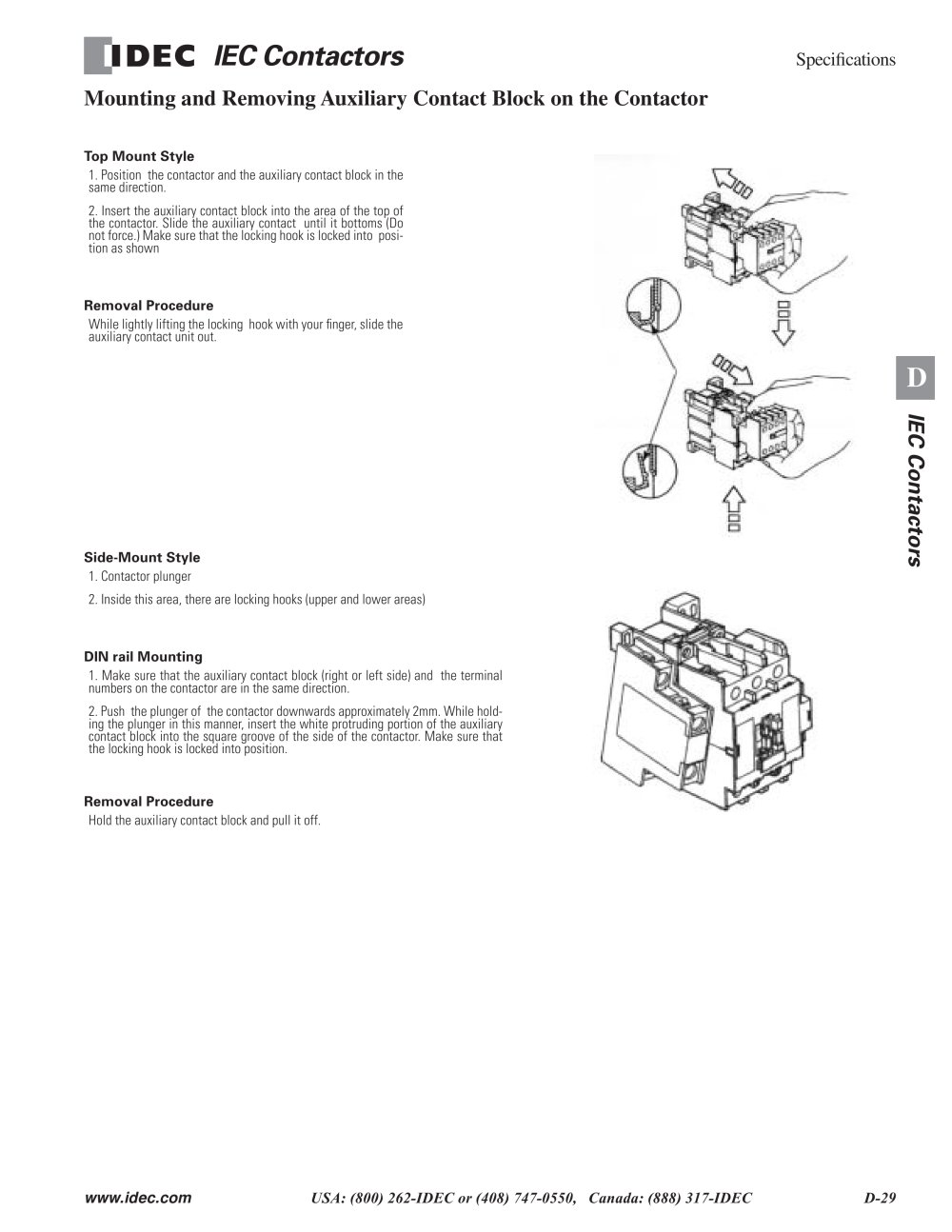

Mounting and Removing Auxiliary Contact Block on the Contactor

Top Mount Style Removal Procedure Side-Mount StyleDIN rail Mounting Removal Procedure 1. Position the contactor and the auxiliary contact block in thesame direction.2. Insert the auxiliary contact block into the area of the top ofthe contactor. Slide the auxiliary contact until it bottoms (Do not force.) Make sure that the locking hook is locked into posi- tion as shown While lightly lifting the locking hook with your finger, slide theauxiliary contact unit out. 1. Contactor plunger2. Inside this area, there are locking hooks (upper and lower areas)1. Make sure that the auxiliary contact block (right or left side) and the terminalnumbers on the contactor are in the same direction. 2. Push the plunger of the contactor downwards approximately 2mm. While hold-ing the plunger in this manner, insert the white protruding portion of the auxiliarycontact block into the square groove of the side of the contactor. Make sure thatthe locking hook is locked into position.Hold the auxiliary contact block and pull it off.

D

IEC Contactors

www.idec.com USA: (800) 262-IDEC or (408) 747-0550, Canada: (888) 317-IDECD-29
