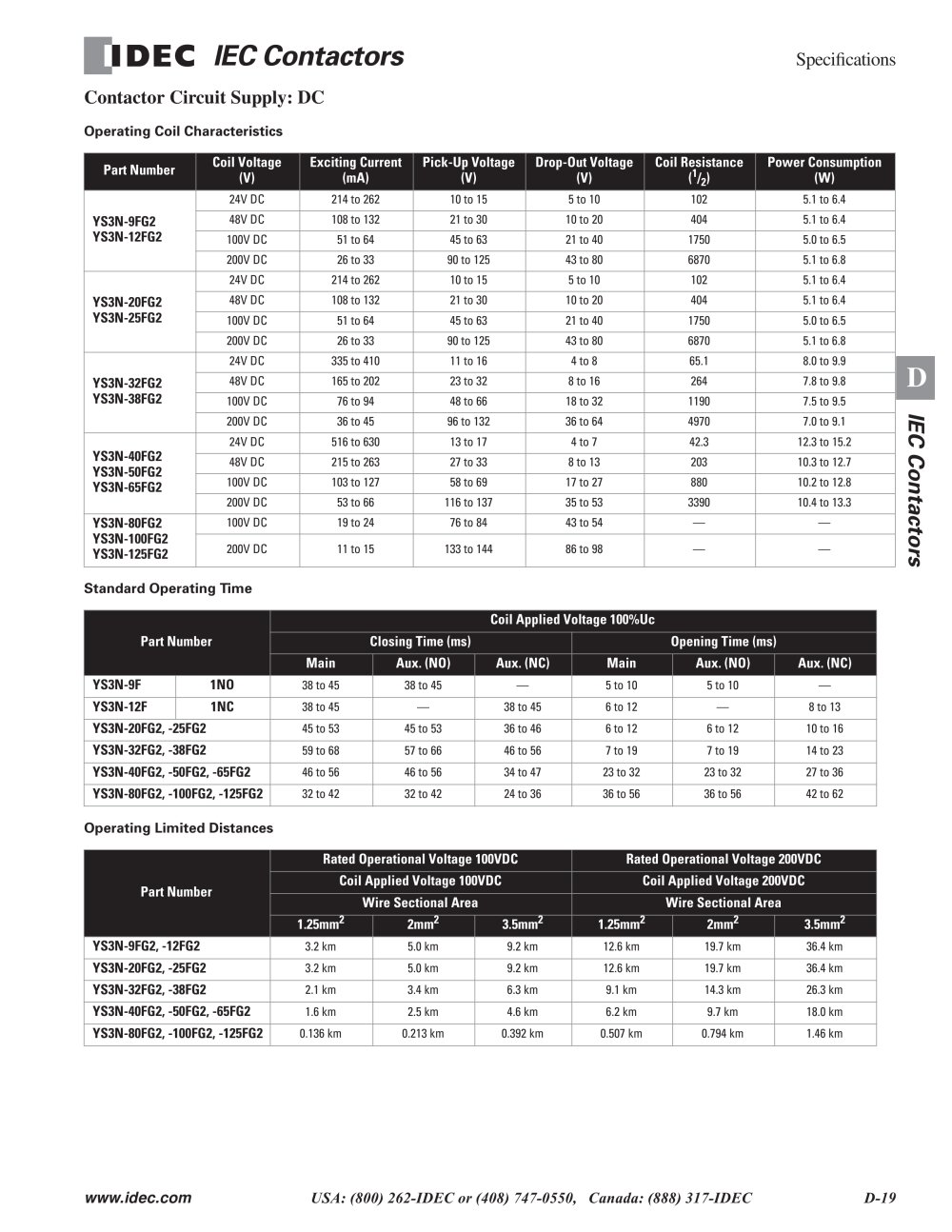

I DEC iECOontaotors Specifications

Contactor Circuit Supply: DC

Operating Coil Characteristics


	Part Number	Coil Voltage (V)	Exciting Current (mA)	Pick-Up Voltage (V)	Drop-Out Voltage (V)	Coil Resistance (V2)	Power Consumption (W)
	YS3N-9FG2 YS3N-12FG2	24V DC	214 to 262	10 to 15	5 to 10	102	5.1 to 6.4
		48V DC	108 to 132	21 to 30	10 to 20	404	5.1 to 6.4
		100V DC	51 to 64	45 to 63	21 to 40	1750	5.0 to 6.5
		200V DC	26 to 33	90 to 125	43 to 80	6870	5.1 to 6.8
	YS3N-20FG2 YS3N-25FG2	24V DC	214 to 262	10 to 15	5 to 10	102	5.1 to 6.4
		48V DC	108 to 132	21 to 30	10 to 20	404	5.1 to 6.4
		100V DC	51 to 64	45 to 63	21 to 40	1750	5.0 to 6.5
		200V DC	26 to 33	90 to 125	43 to 80	6870	5.1 to 6.8
	YS3N-32FG2 YS3N-38FG2	24V DC	335 to 410	11 to 16	4 to 8	65.1	8.0 to 9.9
		48V DC	165 to 202	23 to 32	8 to 16	264	7.8 to 9.8
		100V DC	76 to 94	48 to 66	18 to 32	1190	7.5 to 9.5
		200V DC	36 to 45	96 to 132	36 to 64	4970	7.0 to 9.1
	YS3N-40FG2 YS3N-50FG2 YS3N-65FG2	24V DC	516 to 630	13 to 17	4 to 7	42.3	12.3 to 15.2
		48V DC	215 to 263	27 to 33	8 to 13	203	10.3 to 12.7
		100V DC	103 to 127	58 to 69	17 to 27	880	10.2 to 12.8
		200V DC	53 to 66	116 to 137	35 to 53	3390	10.4 to 13.3
	YS3N-80FG2 YS3N-100FG2 YS3N-125FG2	100V DC	19 to 24	76 to 84	43 to 54	—	—
	YS3N-80FG2 YS3N-100FG2 YS3N-125FG2	200V DC	11 to 15	133 to 144	86 to 98	—	—

Standard Operating Time


		Coil Applied Voltage 100%Uc
	Part Number	Closing Time (ms)			Opening Time (ms)
		Main	Aux. (NO)	Aux. (NC)	Main	Aux. (NO)	Aux. (NC)
	YS3N-9F 1NO	38 to 45	38 to 45	—	5 to 10	5 to 10	—
	YS3N-12F 1NC	38 to 45	—	38 to 45	6 to 12	—	8 to 13
	YS3N-20FG2, -25FG2	45 to 53	45 to 53	36 to 46	6 to 12	6 to 12	10 to 16
	YS3N-32FG2, -38FG2	59 to 68	57 to 66	46 to 56	7 to 19	7 to 19	14 to 23
	YS3N-40FG2, -50FG2, -65FG2	46 to 56	46 to 56	34 to 47	23 to 32	23 to 32	27 to 36
	YS3N-80FG2, -100FG2, -125FG2	32 to 42	32 to 42	24 to 36	36 to 56	36 to 56	42 to 62

Operating Limited Distances


		Rated Operational Voltage 100VDC			Rated Operational Voltage 200VDC
	Part Number	Coil Applied Voltage 100VDC			Coil Applied Voltage 200VDC
	Part Number	Wire Sectional Area			Wire Sectional Area
		1.25mm²	2mm²	3.5mm²	1.25mm²	2mm²	3.5mm²
	YS3N-9FG2, -12FG2	3.2 km	5.0 km	9.2 km	12.6 km	19.7 km	36.4 km
	YS3N-20FG2, -25FG2	3.2 km	5.0 km	9.2 km	12.6 km	19.7 km	36.4 km
	YS3N-32FG2, -38FG2	2.1 km	3.4 km	6.3 km	9.1 km	14.3 km	26.3 km
	YS3N-40FG2, -50FG2, -65FG2	1.6 km	2.5 km	4.6 km	6.2 km	9.7 km	18.0 km
	YS3N-80FG2, -100FG2, -125FG2	0.136 km	0.213 km	0.392 km	0.507 km	0.794 km	1.46 km
