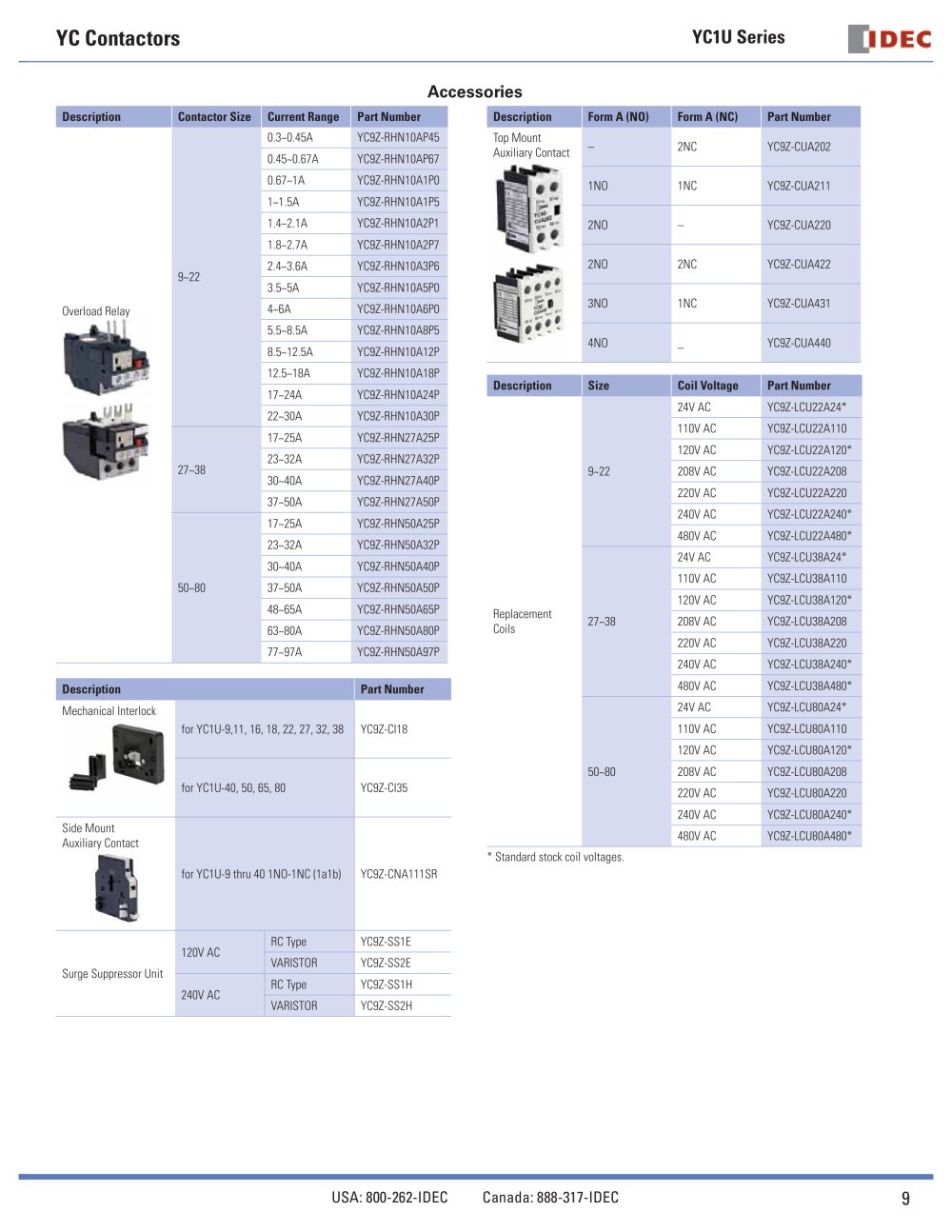

Accessories


	Contactor Size	Current Range	Part Number
		0.3-0.45A	YC9Z-RHN10AP45
		0.45-0.67A	YC9Z-RHN10AP67
		0.67-1A	YC9Z-RHN10A1P0
		1-1.5A	YC9Z-RHN10A1P5
		1.4-2.1A	YC9Z-RHN10A2P1
		1.8-2.7A	YC9Z-RHN10A2P7
	9-22	2.4-3.6A	YC9Z-RHN10A3P6
	9-22	3.5-5A	YC9Z-RHN10A5P0
		4-6A	YC9Z-RHN10A6P0
		5.5-8.5A	YC9Z-RHN10A8P5
		8.5-12.5A	YC9Z-RHN10A12P
		12.5-18A	YC9Z-RHN10A18P
		17-24A	YC9Z-RHN10A24P
		22-30A	YC9Z-RHN10A30P
		17-25A	YC9Z-RHN27A25P
	27-38	23-32A	YC9Z-RHN27A32P
	27-38	30-40A	YC9Z-RHN27A40P
		37-50A	YC9Z-RHN27A50P
		17-25A	YC9Z-RHN50A25P
		23-32A	YC9Z-RHN50A32P
		30-40A	YC9Z-RHN50A40P
	50-80	37-50A	YC9Z-RHN50A50P
		48-65A	YC9Z-RHN50A65P
		63-80A	YC9Z-RHN50A80P
		77-97A	YC9Z-RHN50A97P


	Form A (NO)	Form A (NC)	Part Number
	-	2NC	YC9Z-CUA202
	1N0	INC	YC9Z-CUA211
	2N0	-	YC9Z-CUA220
	2N0	2NC	YC9Z-CUA422
	3N0	INC	YC9Z-CUA431
	4N0	-	YC9Z-CUA440

Description

Description

Top Mount Auxiliary Contact

Overload Relay


	Size	Coil Voltage	Part Number
		24V AC	YC9Z-LCU22A24*
		110V AC	YC9Z-LCU22A110
		120V AC	YC9Z-LCU22A120*
	9-22	208V AC	YC9Z-LCU22A208
		220V AC	YC9Z-LCU22A220
		240V AC	YC9Z-LCU22A240*
		480V AC	YC9Z-LCU22A480*
		24V AC	YC9Z-LCU38A24*
		110V AC	YC9Z-LCU38A110
		120V AC	YC9Z-LCU38A120*
	27-38	208V AC	YC9Z-LCU38A208
		220V AC	YC9Z-LCU38A220
		240V AC	YC9Z-LCU38A240*
		480V AC	YC9Z-LCU38A480*
		24V AC	YC9Z-LCU80A24*
		110V AC	YC9Z-LCU80A110
		120V AC	YC9Z-LCU80A120*
	50-80	208V AC	YC9Z-LCU80A208
		220V AC	YC9Z-LCU80A220
		240V AC	YC9Z-LCU80A240*
		480V AC	YC9Z-LCU80A480*

Description

Replacement Coils


	Description			Part Number
	Mechanical Interlock	for YC1 U-9,11,16,	18,22,27,32,38	YC9Z-CI18
		forYCIU-40,50,65,80		YC9Z-CI35
	Side Mount Auxiliary Contact
	1	forYC1U-9 thru 40 1 N0-1 NC (1a1b)		YC9Z-CNA111SR
		120V AC	RC Type	YC9Z-SS1E
	Surge Suppressor Unit	120V AC	VARISTOR	YC9Z-SS2E
	Surge Suppressor Unit	240V AC	RC Type	YC9Z-SS1H
		240V AC	VARISTOR	YC9Z-SS2H

' Standard stock coil voltages
