XN Series

Complete X Series E-Stops Catalog - 16475 X Series E-Stops

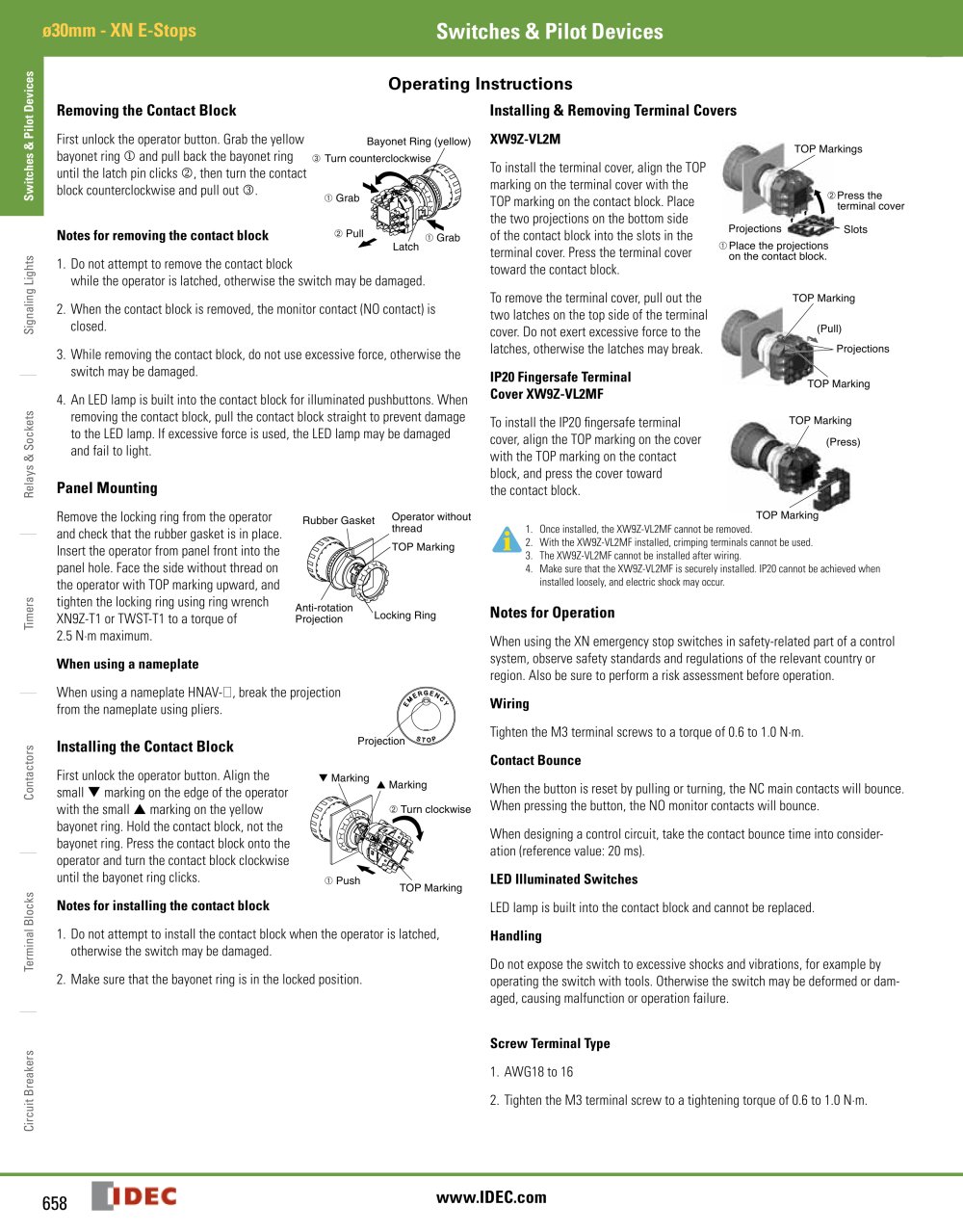

Operating Instructions, continued

Screw Terminal Type 1. Wire thickness: 0.75 to 1.25 mm
2 (AWG18 to 16)

Applicable Crimping Terminals Solid Wire

Ring TerminalSpade Terminal TOP MarkingsPull out the latches
OverviewX Series E-StopsDoor Interlock Switches Enabling SwitchesBarriersAS-Interface Safety at Work ø6.0 max. ø3.2 min. 6.0 max. 3.2 min. ø1.2 max. 4.7 min. 6.2 max. 3.0 max. 4.7 to 5.9

IP20 Protection Terminal CoverXW9Z-VL2MF

1. Connector shape Tyco Electronics, D-2000 series Part No. 1376009-1 (tab header, board mount)2. Applicable connectors (to be supplied by user)Tyco Electronics, D-2000 series Part No. 1-1318119-4 (receptacle housing) Tyco Electronics, D-2000 series Part No. 1318107-1 (receptacle contact)3. To prepare correct receptacles for the connector type, read the instruction sheet and catalog of Tyco Electronics and understand the installation and wiring method.4. Fasten the cable so that the connector is not pulled.Otherwise the switch may be deformed and damaged, causing malfunction or operation failure.
WireInsulating TubeCrimpingTerminal4.7 to 5.9 4.7 to 5.9 WireInsulating TubeCrimping Terminal Be sure to install an insulating tube on the crimping terminal. Connector Type To install the IP20 protection cover, align the TOP marking on the cover with the TOP marking on the contact block, and press the cover toward the contact block. 2. Tighten the M3 terminal screw to a tightening torque of 0.6 to 1.0 N·m. (Press) TOP markingTOP marking
1. Once installed, the XW9Z-VL2MF cannot be removed.2. The XW9Z-VL2MF cannot be installed after wiring. 3. With the XW9Z-VL2MF installed, crimping terminals cannot be used. Use solid wires. 4. Make sure that the XW9Z-VL2MF is securely installed. IP20 cannot be achieved when installed loosely, and electric shocks may occur.

Contact Bounce

When the button is reset by pulling or turning, the NC main contacts will bounce. When pressing the button, the NO monitor contacts will bounce. When designing a control circuit, take the contact bounce time into consider-ation (reference value: 20 ms).

Installing and Removing Terminal Covers

XW9Z-VL2M To install the terminal cover, align the TOP marking on the terminal cover with the TOP marking on the contact block. Place the two projections on the bottom side of the contact block into the slots in the terminal cover. Press the terminal cover toward the contact block.

LED Illuminated Switches

An LED lamp is built into the contact block and cannot be replaced.

Installing the Anti-rotation Ring HW9Z-RL

Align the side without thread on the operator with TOP marking, the small s marking on the anti-rotation ring, and the recess on the mounting panel.TOP marking Press the terminal coverTOP marking Without thread marking on the anti-rotation ring Place the projections on the contact block To remove the terminal cover, pull out the two latches on the top side of the terminal cover. Do not exert excessive force to the latches, otherwise the latches may break. Anti-rotation Ring (HW9Z-RL)
