Catalog excerpts

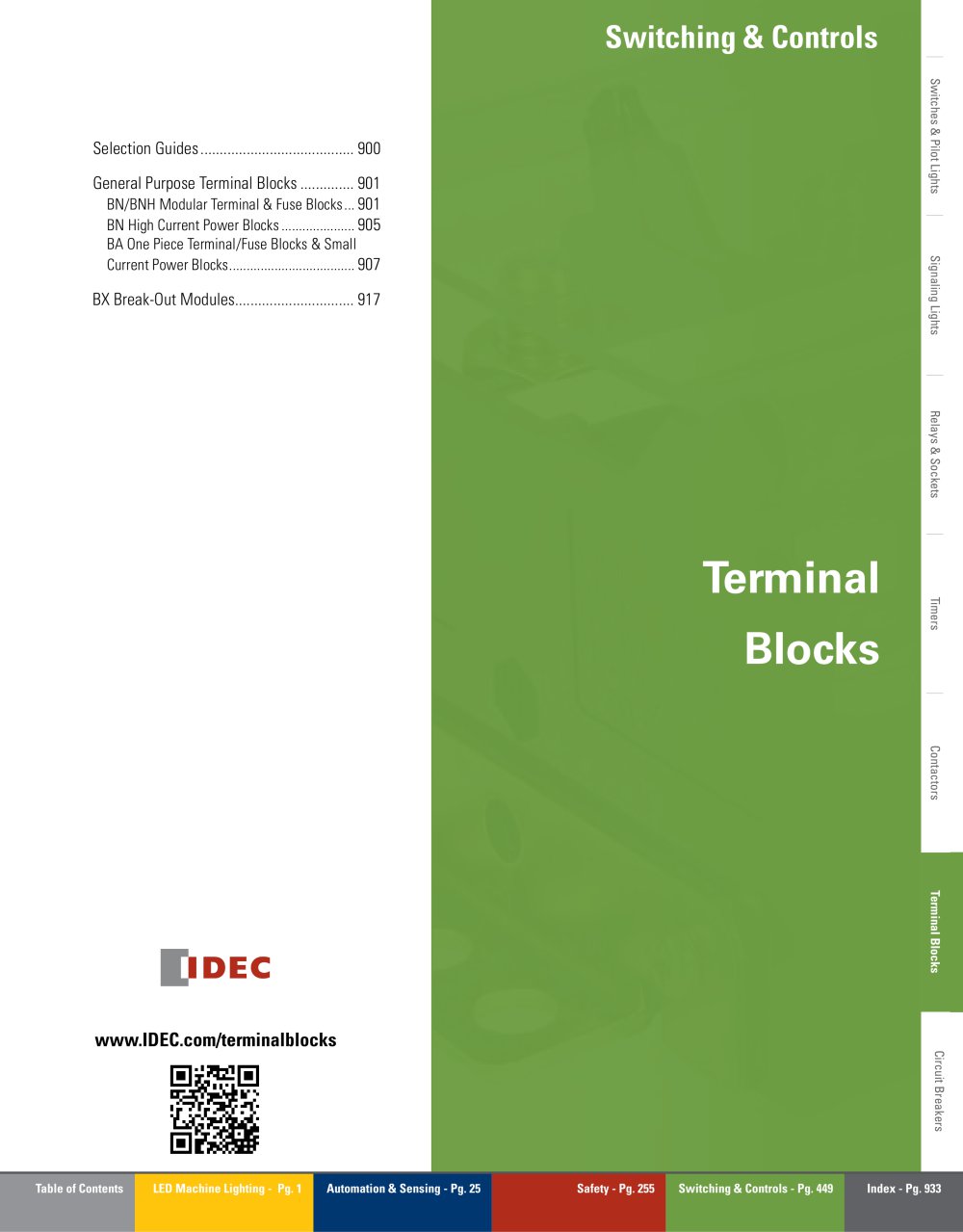

Complete Terminal Blocks Catalog - 1

Switching & Controls Switches & Pilot Lights Signaling Lights Relays & Sockets Contactors Terminal Blocks Circuit Breakers

Open the catalog to page 1
Complete Terminal Blocks Catalog - 2

Terminal Blocks Switches & Pilot Lights Selection Guide Selection Guide Current Modular DIN Rail Terminal Blocks Modular DIN Rail Fuse Holders One-Piece Power Blocks (DIN rail and surface mount) One-Piece DIN Rail Fuse Holders Signaling Lights One-Piece DIN Rail Terminal Blocks Relays & Sockets DIN Rail Break-Out Modules Key features of IDEC terminal blocks include: • Molded from UL94-V0 material with excellent flame- and shock-resistance • Mounts on a standard 35mm DIN rail • Marking strips and dust covers are available • Control circuit, power circuits, and fuse blocks, are available •...

Open the catalog to page 2
Complete Terminal Blocks Catalog - 3

Terminal Blocks Key features: • Touch-down terminals with spring-loaded captive screws • Jumpers available up to 50A model • Fuse block with or without blown-fuse indicator in neon or LED • Mounts on 35mm standard DIN rail Signaling Lights File No. R9551701 J9551516 (power blocks) R9650688 (dual-deck blocks) Relays & Sockets Specifications Model Switches & Pilot Lights BNH/BN Series Wire Sizes Voltage/Current Size Mounting Terminal Torque End Plate DIN Rail Stop Dust Cover Marking Strip Ring Terminal Jumpers Fork Terminal Jumpers Terminal Blocks Circuit Breakers 1. BNDN1000 aluminum DIN...

Open the catalog to page 3
Complete Terminal Blocks Catalog - 4

Terminal Blocks Signaling Lights Switches & Pilot Lights Specifications, continued Model Width Approvals No. of Poles Wire Sizes Relays & Sockets Mounting Terminal Torque End Plate DIN Rail Stop BNC230 (top level) BNC240 (bottom Level) Dust Cover Marking Strip Connecting Rods Connecting Nuts Fork Terminal Jumpers 1. BNDN1000 aluminum DIN rails are available in 1 meter lengths. 2. Marking strips are available in 1 meter lengths. 3. Most jumpers are six poles (except for BNJ62 which is 2 poles only). 4. Remove the “H” in the terminal block part number for standard screw type (ex. BNH50W...

Open the catalog to page 4
Complete Terminal Blocks Catalog - 5

Terminal Blocks Switches & Pilot Lights Specifications, continued Blown Fuse Indicator Approvals No. of Poles Wire Sizes Signaling Lights Standard screw Standard screw Standard screw Relays & Sockets Terminal Torque Dust Cover Marking Strip Applicable Fuse Size 1. BNDN1000 aluminum DIN rails are available in 1 meter lengths. 2. Fuses not included. Contactors Terminal Blocks Circuit Breakers

Open the catalog to page 5
Complete Terminal Blocks Catalog - 6

Terminal Blocks Dimensions When using C Rail: 50 When using 35-mm DIN Rai: 61 Whem using C Rail: 67 When using C Rail: 59.5 52 When using DIN Rail: 53.5 Circuit Breakers When using DIN Rail: 52 When using C Rail: 50 50.5 When using C Rail: 50 ø6.2 min. When using DIN Rail: 44 Terminal Blocks When using C Rail: 44 36.5 When using DIN Rail: 38 When using C Rail: 41 33.5 When using 35-mmD IN Rail: 35 When using DIN Rail: 35 Relays & Sockets When using C Rail: 41 When using C Rail: 41 When using DIN Rail: 35 Signaling Lights When using DIN Rail: 44 Switches & Pilot Lights

Open the catalog to page 6
Complete Terminal Blocks Catalog - 7

Terminal Blocks BN Power Blocks Switches & Pilot Lights BN Power Block Series Key features: • Up to 350A are available for DIN rail or direct mounting on panel surfaces • 2, 3, 4 pole models available Signaling Lights Specifications BN400NW# (replace # with the number of poles) BN200NW#K (replace # with the number of poles) BN400NW#K (replace # with the number of poles) See dimension table on page 906 See dimension table on page 906 See dimension table on page 906 See dimension table on page 906 Relays & Sockets BN200NW# (replace # with the number of poles) Wire Sizes Width Approvals...

Open the catalog to page 7
Complete Terminal Blocks Catalog - 8

Terminal Blocks Dimensions Diagram I (between terminal screws: 46) 1.5 Switches & Pilot Lights Dust Cover Signaling Lights Relays & Sockets Mounting Hole Dimension 90 (between terminal screws: 46) Dust Cover Terminal Blocks Circuit Breakers

Open the catalog to page 8
Complete Terminal Blocks Catalog - 9

Terminal Blocks BA Series Switches & Pilot Lights BA Series Key features: • Self-contained: end plates are not required • Rugged heavy-duty construction • Current capacities up to 40A • 3-pole units available as 1 piece (no endplates are needed) • Fuse blocks with blown fuse indicators Signaling Lights Specifications Relays & Sockets Power Blocks Model Approvals No. of Poles Wire Sizes Voltage/ Current Standard screw Standard screw Standard screw Standard screw Mounting Terminal Torque DIN Rail Stop Dust Cover Terminal Blocks Marking Strip 1. BNDN1000 aluminum DIN rails are available in 1...

Open the catalog to page 9
Complete Terminal Blocks Catalog - 10

Terminal Blocks Switches & Pilot Lights Specifications, continued Fuse Blocks Model Signaling Lights Width Blown Fuse Indicator Approvals No. of Poles Relays & Sockets Wire Sizes Standard screw Standard screw Standard screw Terminals Mounting Terminal Torque DIN Rail Stop Dust Cover Applicable Fuse Size Circuit Breakers Terminal Blocks Marking Strip

Open the catalog to page 10
Complete Terminal Blocks Catalog - 11

Terminal Blocks Dust Cover Dust Cover Relays & Sockets ø4.2 min. When using BAA/BAP: 37.5 When using BAA/BAP: 32 Signaling Lights When using BAA/BAP: 32 Switches & Pilot Lights When using BAA/BAP: 37.5 ø4.2 min. When using BAA/BAP: 49 Terminal Blocks Circuit Breakers

Open the catalog to page 11
Complete Terminal Blocks Catalog - 12

Terminal Blocks Switches & Pilot Lights Accessories Part Numbers: End Plates, DIN Rail Stops, Stand-Offs, DIN Rail and Dust Covers Item Signaling Lights 1. DIN rail stops prevent side-to-side movement. 2. The BNL-5 width is 0.375” (9mm). 1. DIN rail stops prevent side-to-side movement. 2. The BNL-6 width is 0.375” (9mm). 3. To firmly stabilize these higher profile terminal blocks, the BNL-6 has a higher profile than the BNL-5. 1. DIN rail stops prevent side-to-side movement. 2. The BNL-8 width is 0.571” (14.5mm). 3. # = number of poles. Circuit Breakers Terminal Blocks 1. For calculating...

Open the catalog to page 12
Complete Terminal Blocks Catalog - 13

Terminal Blocks Accessories Switches & Pilot Lights Accessories, continued Part Numbers: Rods, Nuts, Marking Strips, Dust Covers, and Jumpers Item The overall length is 39.37” (1,000mm). The material is polycarbonate (UL94-V2). Material: fiberglass Strip dimensions are 0.37”x39” (9.5 x 1,000mm). Used to prevent marking strips from sliding off terminal block. Jumpers come standard with 6 points (except BNJ62). Note: insulated jumpers available - add “B” to end of part number. For example, BNJ26WB. Fork Terminal Jumpers Ring Terminal Jumpers Relays & Sockets Marking Strip Fastener Material:...

Open the catalog to page 13
