BX Series
Complete Terminal Blocks Catalog - 16475 Terminal Blocks

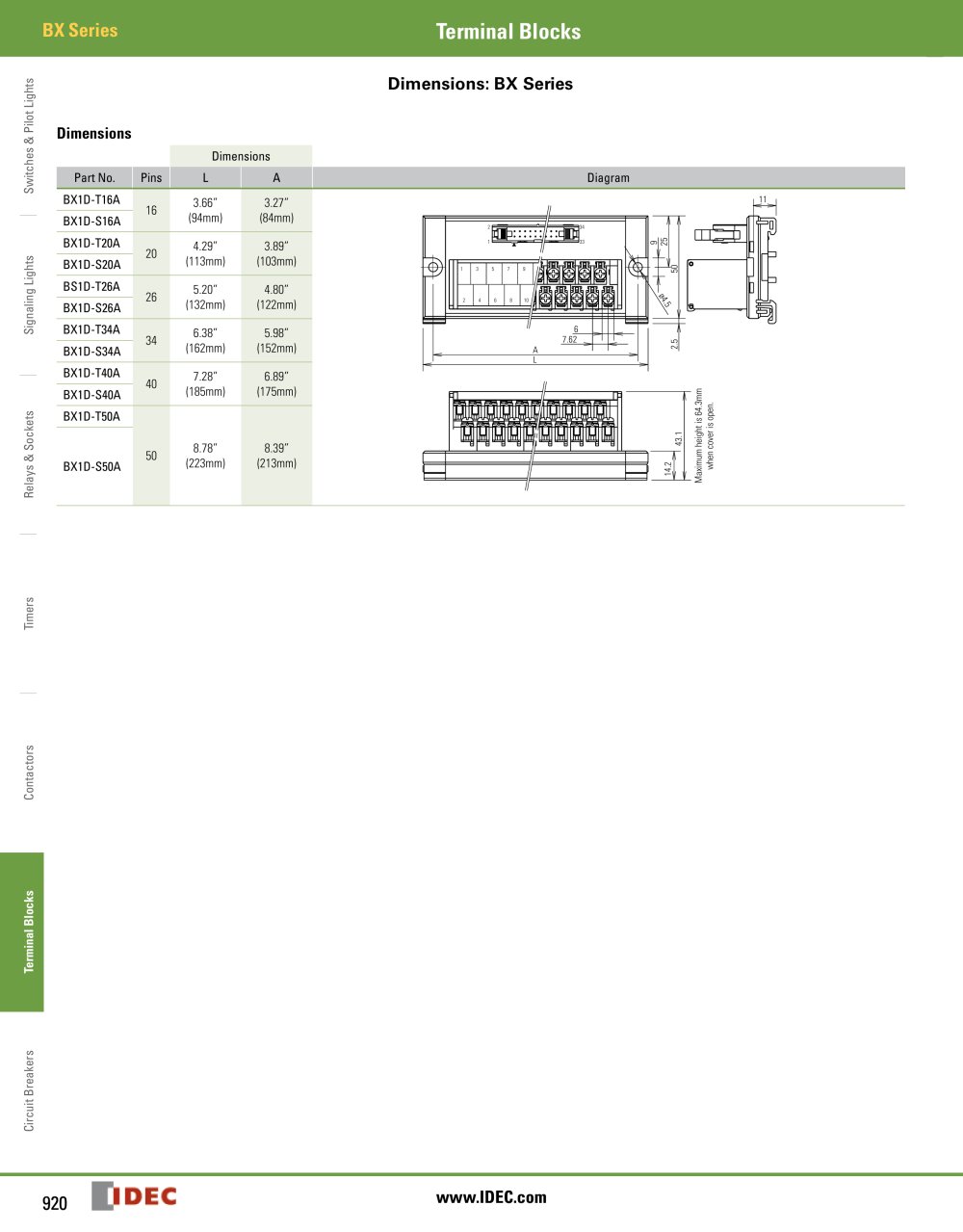

Dimensions: BX Series
Dimensions
DimensionsPart No.PinsLADiagramBX1D-T16A 163.66” (94mm)3.27” (84mm)Switches & Pilot LightsDisplay LightsRelays & SocketsTimersTerminal BlocksCircuit Breakers Switches & Pilot LightsRelays & SocketsTimers BX1D-S16ABX1D-T20A 204.29” (113mm)3.89” (103mm) BX1D-S20ABS1D-T26A 265.20”(132mm)4.80”(122mm) BX1D-S26ABX1D-T34A 346.38” (162mm)5.98” (152mm) BX1D-S34ABX1D-T40A 407.28” (185mm)6.89” (175mm) BX1D-S40ABX1D-T50A 508.78” (223mm)8.39” (213mm) BX1D-S50A
