Power Supplies

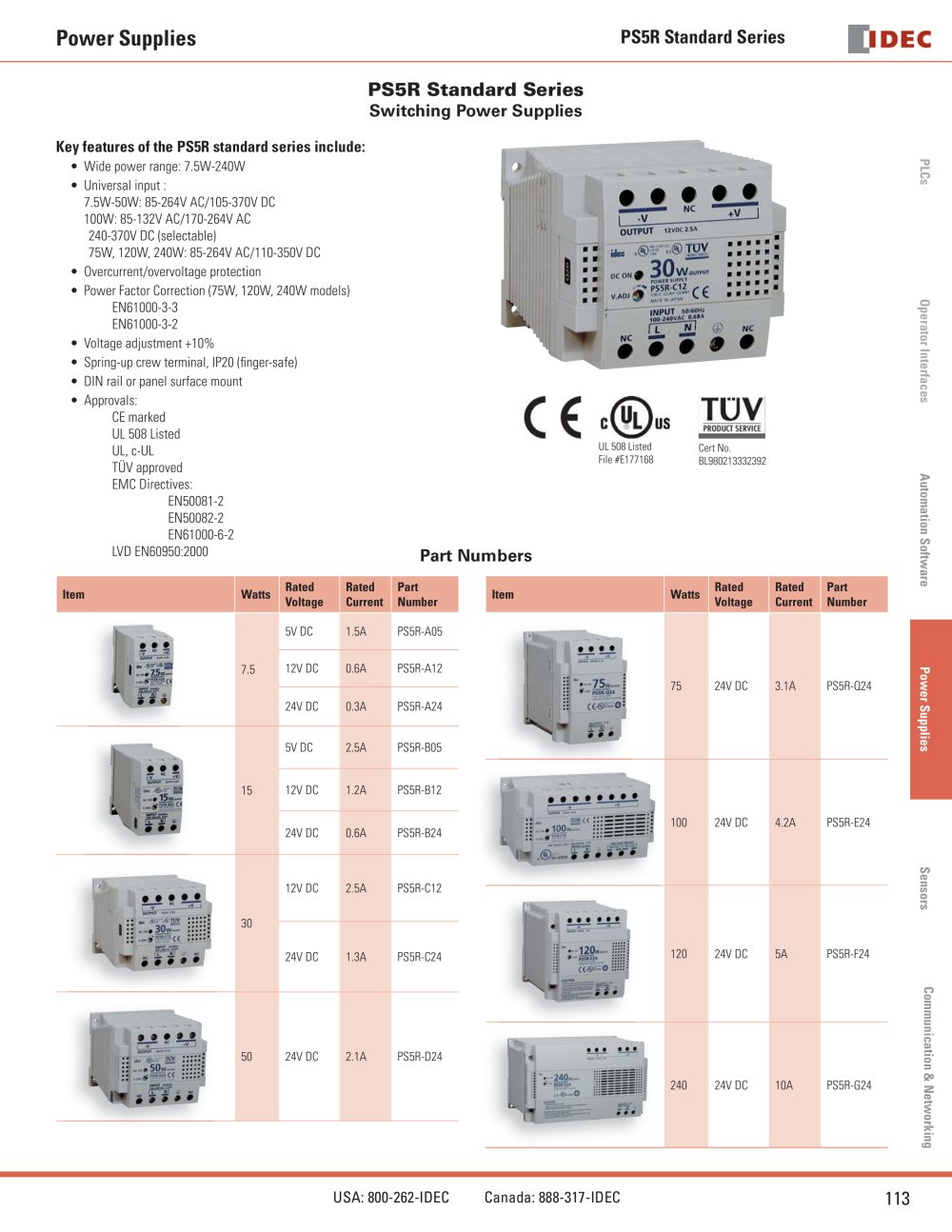

PS5R Standard Series PS5R Standard Series

Switching Power Supplies

Key features of the PS5R standard series include:

PLCsOperator InterfacesAutomation SoftwarePower SuppliesSensorsCommunication & Networking

Wide power range: 7.5W-240WUniversal input :7.5W-50W: 85-264V AC/105-370V DC 100W: 85-132V AC/170-264V AC 240-370V DC (selectable) 75W, 120W, 240W: 85-264V AC/110-350V DCOvercurrent/overvoltage protection Power Factor Correction (75W, 120W, 240W models) EN61000-3-3 EN61000-3-2Voltage adjustment +10% Spring-up crew terminal, IP20 (fi nger-safe) DIN rail or panel surface mount Approvals: CE marked UL 508 Listed UL, c-UL TÜV approved EMC Directives: EN50081-2 EN50082-2 EN61000-6-2 LVD EN60950:2000 •••••• • •

UL 508 ListedFile #E177168 Cert No. BL980213332392

Part Numbers

ItemWattsRated VoltageRated CurrentPart Number ItemWattsRated VoltageRated CurrentPart Number 7.5 5V DC1.5A PS5R-A0512V DC0.6APS5R-A1224V DC0.3APS5R-A24 7524V DC3.1A PS5R-Q24 155V DC2.5A PS5R-B0512V DC1.2APS5R-B1224V DC0.6APS5R-B24 10024V DC4.2A PS5R-E24 3012V DC2.5A PS5R-C1224V DC1.3APS5R-C24 12024V DC5A PS5R-F24 5024V DC2.1A PS5R-D24 24024V DC10APS5R-G24

USA: 800-262-IDEC Canada: 888-317-IDEC

113
