Power Supplies

PS3L Series

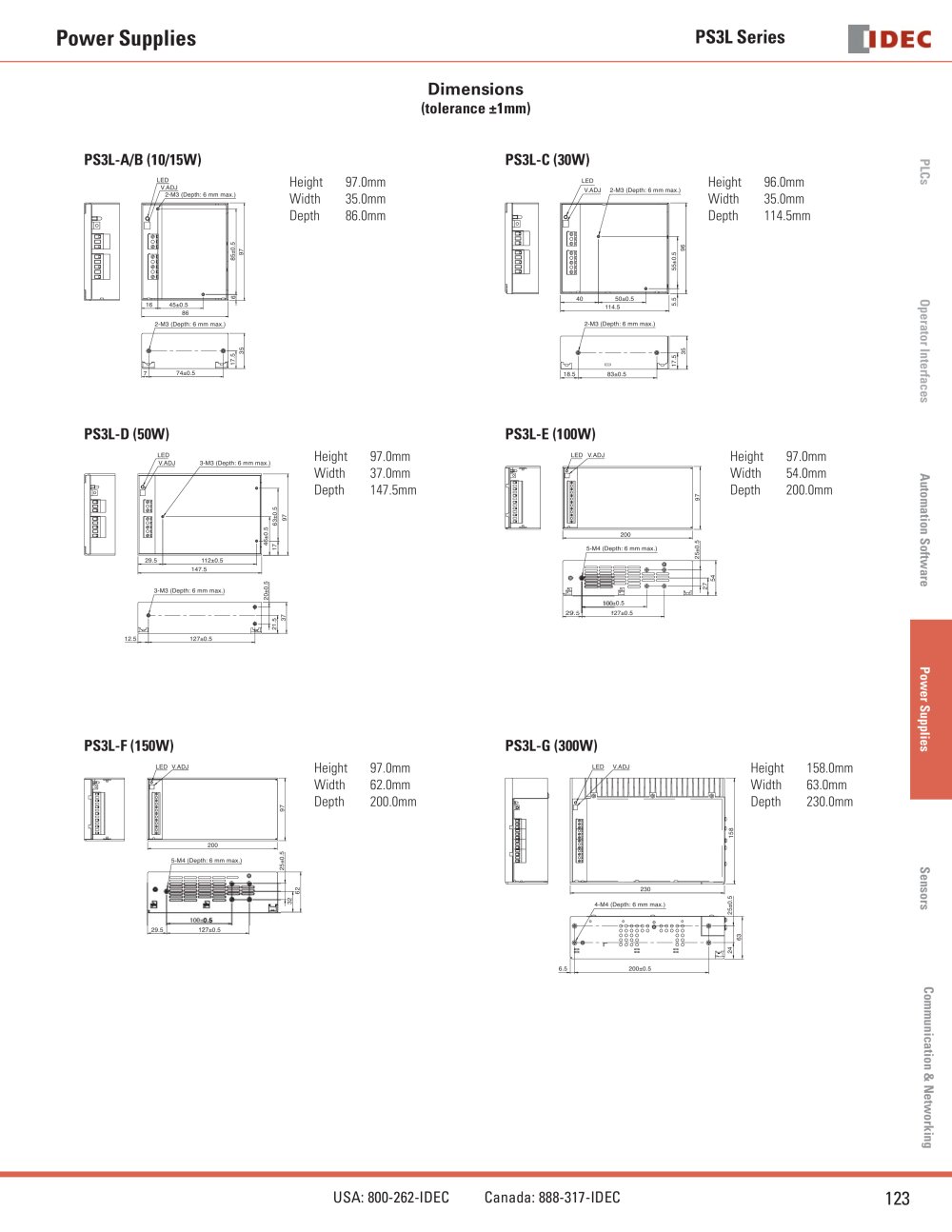

Dimensions

(tolerance ±1mm) PS3L-A/B (10/15W) PS3L-C (30W)

PLCsOperator InterfacesAutomation SoftwarePower SuppliesSensorsCommunication & Networking LED V.ADJ

Height 97.0mmWidth 35.0mm Depth 86.0mm

V.ADJ 2-M3 (Depth: 6 mm max.)

Height 96.0mmWidth 35.0mm Depth 114.5mm

85±0.597 55±0.55.596 6 1645±0.586 114.5 2-M3 (Depth: 6 mm max.) 2-M3 (Depth: 6 mm max.)LED 2-M3 (Depth: 6 mm max.)
17.535 17.535 774±0.5 83±0.518.5 50±0.540

PS3L-D (50W) PS3L-E (100W)

LED V.ADJ 3-M3 (Depth: 6 mm max.)LED 29.5112±0.5147.5

Height 97.0mmWidth 37.0mm Depth 147.5mm Height 97.0mmWidth 54.0mm Depth 200.0mm

97 9763±0.546±0.51720±0.5 200 5-M4 (Depth: 6 mm max.) V.ADJ
25±0.5 3-M3 (Depth: 6 mm max.)
2754 ± 0.5 29.5 127 ±0.5
3721.5 127±0.512.5

PS3L-F (150W) PS3L-G (300W)

Height 97.0mmWidth 62.0mm Depth 200.0mm

V.ADJ

Height 158.0mmWidth 63.0mm Depth 230.0mm

200 2 5-M4 (Depth: 6 mm max.) V.ADJLED
25±0.5 230 LED
326297 4-M4 (Depth: 6 mm max.)
25±0.5 9 . 5 ± . 5
2463158 6.5200±0.5
