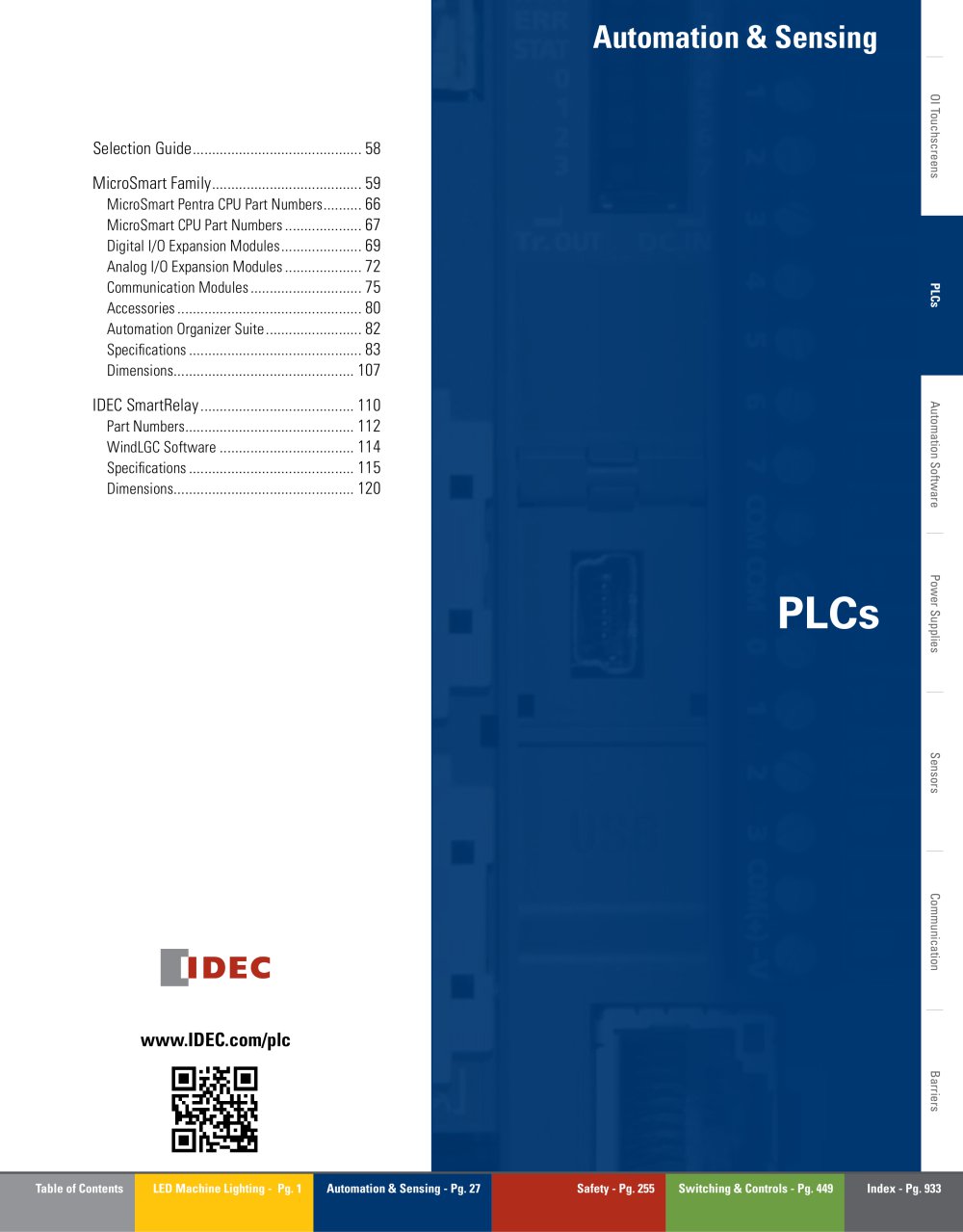

Complete PLC Catalog
64Pages

Automation & Sensing OI Touchscreens Automation Software Power Supplies Sensors Communication www.IDEC.com/plc Barriers

Programmable Logic Controllers Selection Guide Selection Guide Selection Guide Programmable Logic Controllers MicroSmart Family MicroSmart Pentra Page Number Visit www.IDEC.com/PLC Automation Software Rated Voltage CPU base module only Maximum Program Capacity Max. Communication Ports 56 Slim style: 12 I/Os with Ethernet, 16, 32 I/Os Email and Text Message Power Supplies Embedded Ethernet Interbus 32-bit Data & Floating Pt. Math High Speed I/O Freq.

Programmable Logic Controllers MicroSmart Pentra Series MicroSmart Pentra Series Maximize efficiency and cut development time! MicroSmart Pentra PLCs combine advanced networking capabilities with unparalleled power, performance and connectivity. Designed to meet all your communication requirements, now and in the future, MicroSmart Pentra PLCs give you the flexibility to expand your system with as many as fifteen modules! Our new Embedded Ethernet PLC with built-in Modbus TCP also lets you remotely monitor status in real-time, receive email alerts and customize your own web page. All...

Programmable Logic Controllers MicroSmart Pentra Performance Embedded Ethernet Port Remote Access and Control The new MicroSmart Pentra PLC with an embedded Ethernet port, you can configure the MicroSmart Pentra PLC for remote monitoring and control. Using WindLDR software, you can remotely monitor or update the PLC programs without having to be near the PLC. MicroSmart Pentra Series Using standard web browsers like Internet Explorer or Firefox, you can remotely log-in and access web pages that are stored directly on the MicroSmart Pentra PLC. Up to 1 MB of memory is dedicated for web page...

Programmable Logic Controllers MicroSmart Pentra Series Modbus TCP, RTU and ASCII OI Touchscreens Web Browser - Remote Monitor & Control WindLDR Software Monitor & Update Program SCADA Supervisory Controls TCP Modbus TCP Server 255 Modbus TCP Client Ethernet Modbus TCP Server 3 Modbus TCP Server 2 Pentra with Radio Modem Automation Software Temperature Controller Pentra with Radio Modem Using intuitive WindLDR software, you can configure the MicroSmart Pentra to be a Master or Slave device on a Modbus network. All MicroSmart Pentra PLCs support Modbus RTU/ASCII protocols and our CPU with...

Programmable Logic Controllers MicroSmart Pentra Series Power Supplies Automation Software With IDEC MicroSmart Pentra, users do not need to know JAVA programming to embed dynamic values and parts on their PLC web pages. Even novice HTML programmer can take full advantage of the integrated IDEC system library of numerical display/input, horizontal and vertical bar graphs, trend chart, ON/OFF pilot lights and pushbuttons. Up to 1MB of memory is reserved for user web pages. Integrated 100KHz Fast Inputs and Outputs Configure up to four high-speed inputs from high-speed output devices such as...

Programmable Logic Controllers MicroSmart Pentra Series Maximum 7 Communication Ports Port 6 RS232C/ RS485 Automation Software With MicroSmart Pentra PLCs, you don’t have to worry about limited communication capabilities. It doesn’t matter if you’re just starting out or a current user expanding your MicroSmart Pentra PLC, you can rest assured that these communication modules will provide reliable and seamless communication. If RS485 modules are used for all six ports, up to 186 RS485 slave devices can be connected with as high as a 115K baud rate available for fast transmission. Temperature...

Programmable Logic Controllers MicroSmart Pentra Series Choose a CPU for every application With three controller types to choose from, MicroSmart Pentra PLCs offer the features you need for your applications. Built to allow you the flexibility to expand when you need to, MicroSmart Pentra PLCs are the best way to get everything you need in just one controller. Power, Status, I/O LED Indicators Removable Terminal Block Automation Software Optional Clock Cartridge USB mini-B Programming Port Optional HMI base module Optional EEPROM cartridge (up to 128KB) • Optional RS232C adaptor Power...

Programmable Logic Controllers MicroSmart Pentra Series 0-10V DC Analog Input (8-bit resolution) RS232C port Automation Software Optional Clock Cartridge Optional EEPROM cartridge Power, Status, I/O LED Indicators Power Supplies • Optional RS232C adaptor (8-pin mini DIN connector) • Optional RS485 adaptor (8-pin mini DIN or screw terminal connector) Screw Terminal or MIL connector termination Sensors • Optional EEPROM cartridge • Optional Clock Cartridge If you don’t need Ethernet, but still want a high-performance CPU, the MicroSmart Pentra slim CPU is your best choice! Available with 24V...

Programmable Logic Controllers MicroSmart Pentra Series MicroSmart Pentra CPU Part Numbers Slim Base Module with Embedded Ethernet Style Part Number Operating Voltage Maximum No. of Expansion Modules Slim Base Module Automation Software Part Number Operating Voltage Output 6 Relays, 2 Trans. Sink Maximum No. of Expansion Modules Transistor Sink 15 (Maximum 512 digital I/Os) Transistor Source All-in-One Base Module Part Number Operating Voltage Maximum No. of Expansion Modules

Programmable Logic Controllers MicroSmart Series MicroSmart Performance MicroSmart Series • Available in 10, 16, 20, 24, and 40 I/O CPUs. • PID Controls -Program up to 14 PID loops • High Speed I/O -Built-in 4 high speed inputs -Single or Dual Phase -Max. 20KHz frequency • Built-in 2 High speed outputs (Slim model only) • Configure up to 264 I/O Points • Data link up to 32 MicroSmart and Pentra CPUs • Using RS485 communication module/port, you can create a network of up to 32 CPUs. • Worldwide Approvals -cULus listed, CE marked -Class 1 Div. 2 for hazardous locations -Lloyds Registered and...

Programmable Logic Controllers MicroSmart Series MicroSmart CPU Part Numbers Slim Style Part Number Maximum No. of Expansion Modules 6 Relays, 2 Transistor Sink 6 Relays, 2 Transistor Source Automation Software Power Supplies Transistor Sink Transistor Source Transistor Sink Transistor Source
