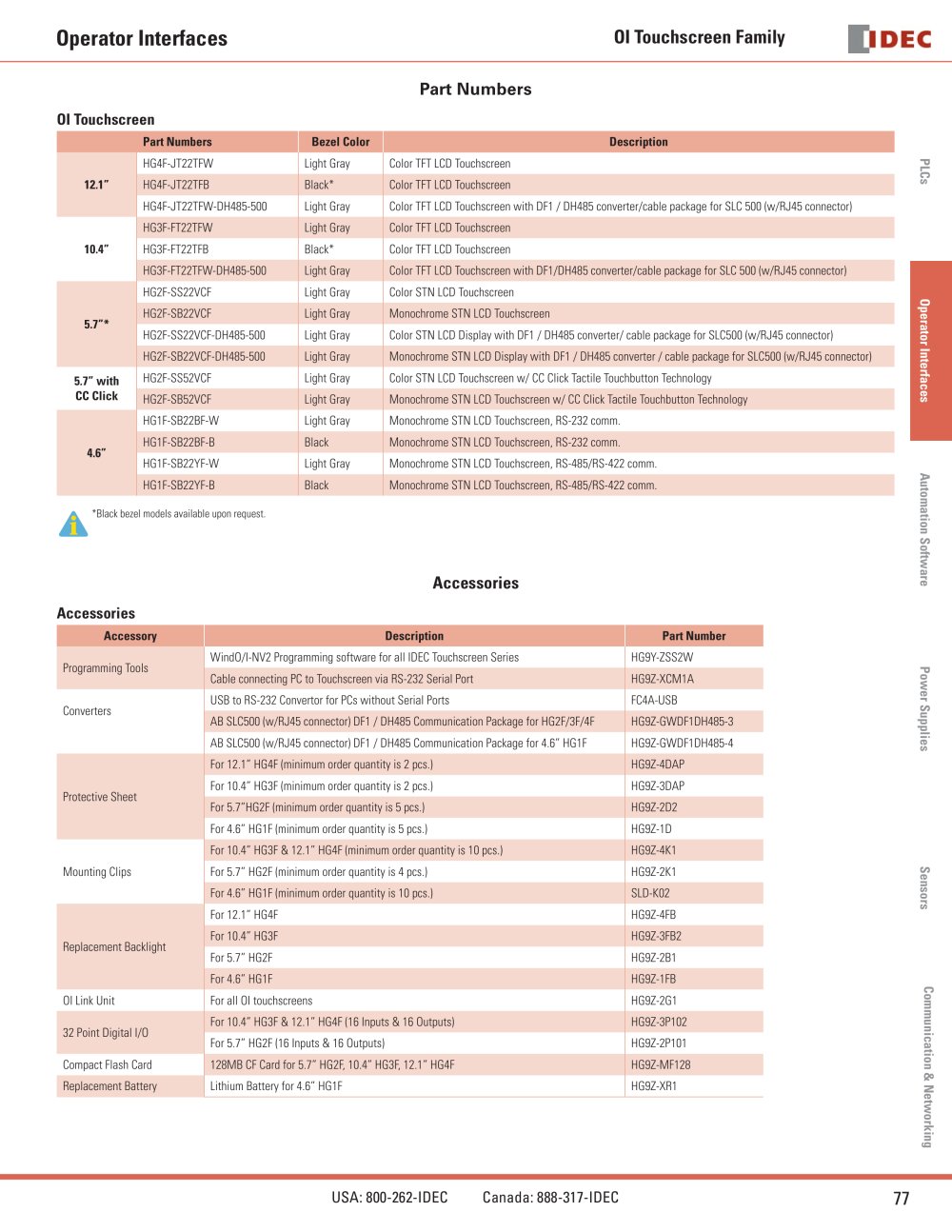

Operator Interfaces

OI Touchscreen Family

Part Numbers

OI Touchscreen

Part NumbersBezel ColorDescription12.1” HG4F-JT22TFWLight GrayColor TFT LCD TouchscreenHG4F-JT22TFBBlack*Color TFT LCD Touchscreen HG4F-JT22TFW-DH485-500Light GrayColor TFT LCD Touchscreen with DF1 / DH485 converter/cable package for SLC 500 (w/RJ45 connector)
PLCsOperator InterfacesAutomation SoftwarePower SuppliesSensorsCommunication & Networking HG3F-FT22TFWLight GrayColor TFT LCD TouchscreenHG3F-FT22TFBBlack*Color TFT LCD Touchscreen HG3F-FT22TFW-DH485-500Light GrayColor TFT LCD Touchscreen with DF1/DH485 converter/cable package for SLC 500 (w/RJ45 connector) 5.7” withCC Click 10.4” HG2F-SS22VCFLight GrayColor STN LCD TouchscreenHG2F-SB22VCFLight GrayMonochrome STN LCD Touchscreen HG2F-SS22VCF-DH485-500Light GrayColor STN LCD Display with DF1 / DH485 converter/ cable package for SLC500 (w/RJ45 connector) HG2F-SB22VCF-DH485-500Light GrayMonochrome STN LCD Display with DF1 / DH485 converter / cable package for SLC500 (w/RJ45 connector) HG2F-SS52VCFLight GrayColor STN LCD Touchscreen w/ CC Click Tactile Touchbutton TechnologyHG2F-SB52VCFLight GrayMonochrome STN LCD Touchscreen w/ CC Click Tactile Touchbutton Technology 5.7”* HG1F-SB22BF-WLight GrayMonochrome STN LCD Touchscreen, RS-232 comm. HG1F-SB22BF-BBlackMonochrome STN LCD Touchscreen, RS-232 comm. HG1F-SB22YF-WLight GrayMonochrome STN LCD Touchscreen, RS-485/RS-422 comm. HG1F-SB22YF-BBlackMonochrome STN LCD Touchscreen, RS-485/RS-422 comm. 4.6”
*Black bezel models available upon request.

Accessories

Accessories

AccessoryDescriptionPart Number Programming ToolsWindO/I-NV2 Programming software for all IDEC Touchscreen Series HG9Y-ZSS2WCable connecting PC to Touchscreen via RS-232 Serial Port HG9Z-XCM1AConvertersUSB to RS-232 Convertor for PCs without Serial PortsFC4A-USBAB SLC500 (w/RJ45 connector) DF1 / DH485 Communication Package for HG2F/3F/4F HG9Z-GWDF1DH485-3 AB SLC500 (w/RJ45 connector) DF1 / DH485 Communication Package for 4.6” HG1FHG9Z-GWDF1DH485-4Protective SheetFor 12.1” HG4F (minimum order quantity is 2 pcs.) HG9Z-4DAPFor 10.4” HG3F (minimum order quantity is 2 pcs.) HG9Z-3DAP For 5.7”HG2F (minimum order quantity is 5 pcs.) HG9Z-2D2 For 4.6” HG1F (minimum order quantity is 5 pcs.)HG9Z-1DMounting ClipsFor 10.4” HG3F & 12.1” HG4F (minimum order quantity is 10 pcs.)HG9Z-4K1For 5.7” HG2F (minimum order quantity is 4 pcs.)HG9Z-2K1 For 4.6” HG1F (minimum order quantity is 10 pcs.)SLD-K02Replacement BacklightFor 12.1” HG4FHG9Z-4FBFor 10.4” HG3FHG9Z-3FB2 For 5.7” HG2FHG9Z-2B1 For 4.6” HG1FHG9Z-1FBOI Link UnitFor all OI touchscreensHG9Z-2G132 Point Digital I/OFor 10.4” HG3F & 12.1” HG4F (16 Inputs & 16 Outputs)HG9Z-3P102For 5.7” HG2F (16 Inputs & 16 Outputs)HG9Z-2P101Compact Flash Card128MB CF Card for 5.7” HG2F, 10.4” HG3F, 12.1” HG4F HG9Z-MF128 Replacement BatteryLithium Battery for 4.6” HG1F HG9Z-XR1

USA: 800-262-IDEC Canada: 888-317-IDEC

77
