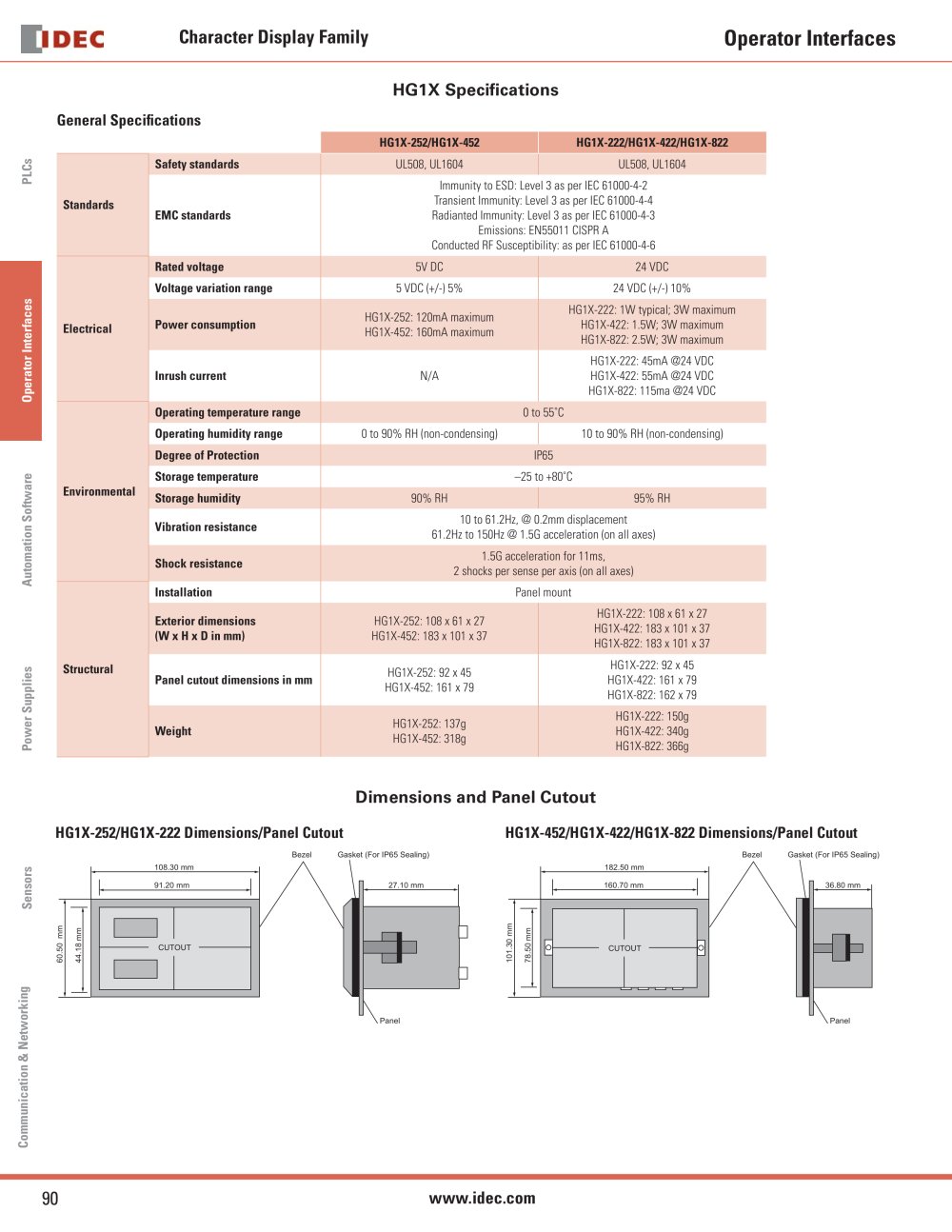

HG1X Specifications
General Specifications
HG1X-252/HG1X-452
HG1X-222/HG1X-422/HG1X-822
Safety standards
UL508, UL1604
UL508, UL1604
Immunity to ESD: Level 3 as per IEC 61000-4-2
Standards
Transient Immunity: Level 3 as per IEC 61000-4-4
EMC standards
Radianted Immunity: Level 3 as per IEC 61000-4-3
Emissions: EN55011 CISPR A Conducted RF Susceptibility: as per IEC 61000-4-6
Rated voltage
5V DC
24 VDC
Voltage variation range
5 VDC (+/-) 5%
24 VDC (+/-) 10%
HG1X-252: 120mA maximum HG1X-452: 160mA maximum
HG1X-222: 1W typical; 3W maximum
Electrical
Power consumption
HG1X-422: 1.5W; 3W maximum HG1X-822: 2.5W; 3W maximum
HG1X-222: 45mA @24 VDC
Inrush current
N/A
HG1X-422: 55mA @24 VDC HG1X-822: 115ma @24 VDC
Operating temperature range
0 to 55°C
Operating humidity range
0 to 90% RH (non-condensing)
10 to 90% RH (non-condensing)
Degree of Protection
IP65
Storage temperature
-25 to +80°C
Environmental
Storage humidity
90% RH
95% RH
Vibration resistance
10 to 61.2Hz, @ 0.2mm displacement
61.2Hz to 150Hz @ 1.5G acceleration (on all axes)
Shock resistance
1.5G acceleration for 11ms,
2 shocks per sense per axis (on all axes)
Installation
Panel mount
Exterior dimensions
HG1X-252: 108 x 61 x 27
HG1X-222: 108 x 61 x 27 HG1X-422: 183 x 101 x 37 HG1X-822: 183 x 101 x 37
(W x H x D in mm)
HG1X-452: 183 x 101 x 37
Structural
Panel cutout dimensions in mm
HG1X-252: 92 x 45 HG1X-452: 161 x 79
HG1X-222: 92 x 45 HG1X-422: 161 x 79
HG1X-822: 162 x 79
HG1X-252: 137g HG1X-452: 318g
HG1X-222: 150g
Weight
HG1X-422: 340g
HG1X-822: 366g
vi
u _I
in
cu
o
CO
cd
a. O
cu co
= a
cc E o
cu
a.
co
cu
s
o
Q.
Dimensions and Panel Cutout HG1X-252/HG1X-222 Dimensions/Panel Cutout HG1X-452/HG1X-422/HG1X-822 Dimensions/Panel Cutout
Bezel Gasket (For IP65 Sealing)
Bezel Gasket (For IP65 Sealing)
182.50 mm
a
tA = cu
160.70 mm
E E
E E
5
ad
a
I
cu
2
o3
= a
cc u
= E E o
