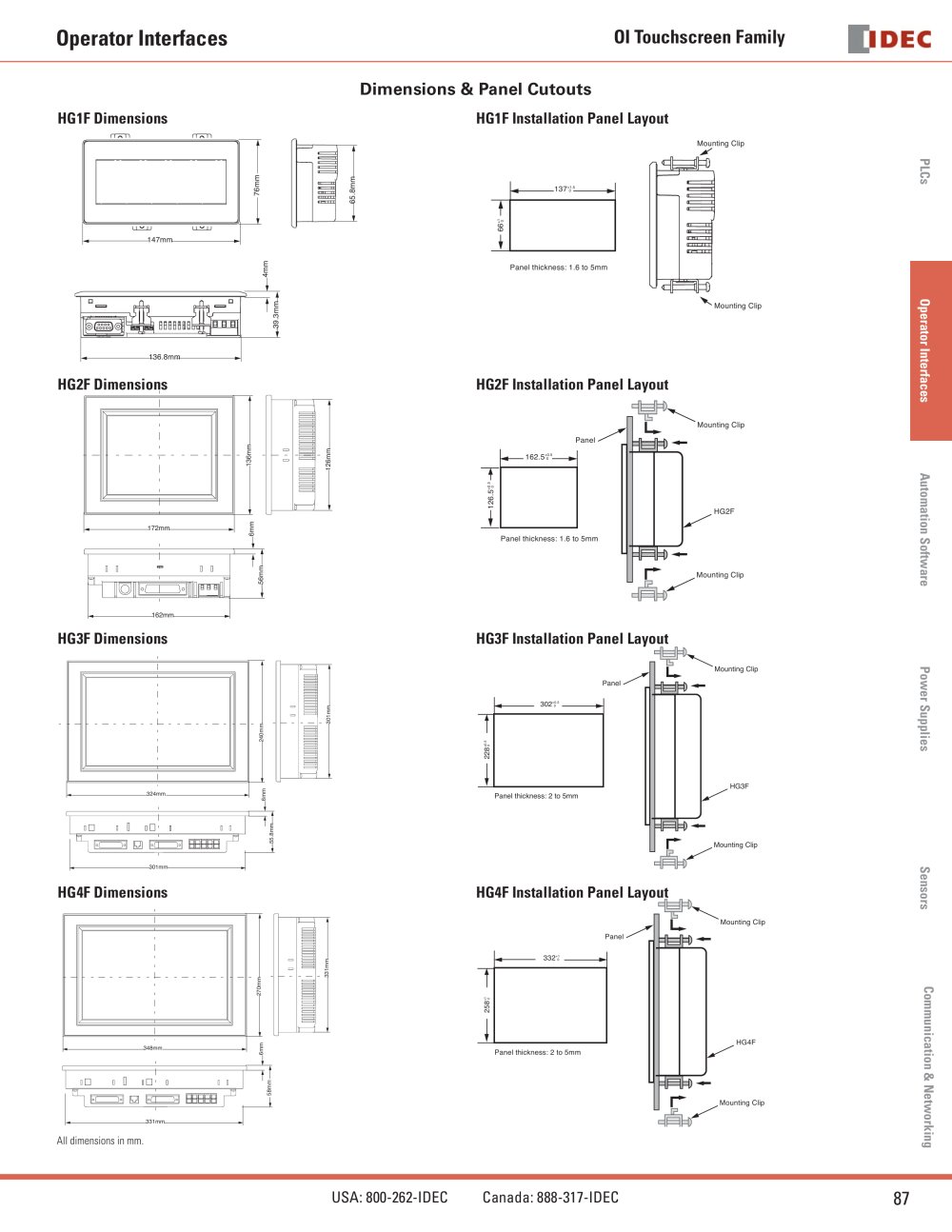

Operator Interfaces OI Touchscreen Family Dimensions & Panel Cutouts

HG1F DimensionsHG1F Installation Panel Layout Mounting Clip Mounting Clip

PLCsOperator InterfacesAutomation SoftwarePower SuppliesSensorsCommunication & Networking

+1.5 0

76mm 65.8mm39.3mm4mm

137

+1 0 66

147mm 136.8mm

Panel thickness: 1.6 to 5mm HG2F DimensionsHG2F Installation Panel Layout Mounting Clip 162.5

+0.5 0

136mm 126mm +0.5 0 126.5

HG2FPanel

172mm

Panel thickness: 1.6 to 5mm Mounting Clip

56mm6mm

162mm

HG3F DimensionsHG3F Installation Panel Layout

Mounting Clip 302

+0.5 0

301mm 240mm +0.5 0 228

HG3F Panel

324mm

Panel thickness: 2 to 5mm

55.8mm6mm

Mounting Clip

301mm

HG4F DimensionsHG4F Installation Panel Layout

Mounting Clip 332

+1 0

331mm 270mm +1 0 258

348mm

HG4F Panel Panel thickness: 2 to 5mm

58mm6mm

Mounting Clip

331mm

All dimensions in mm. USA: 800-262-IDEC Canada: 888-317-IDEC
