Door Interlock Switches

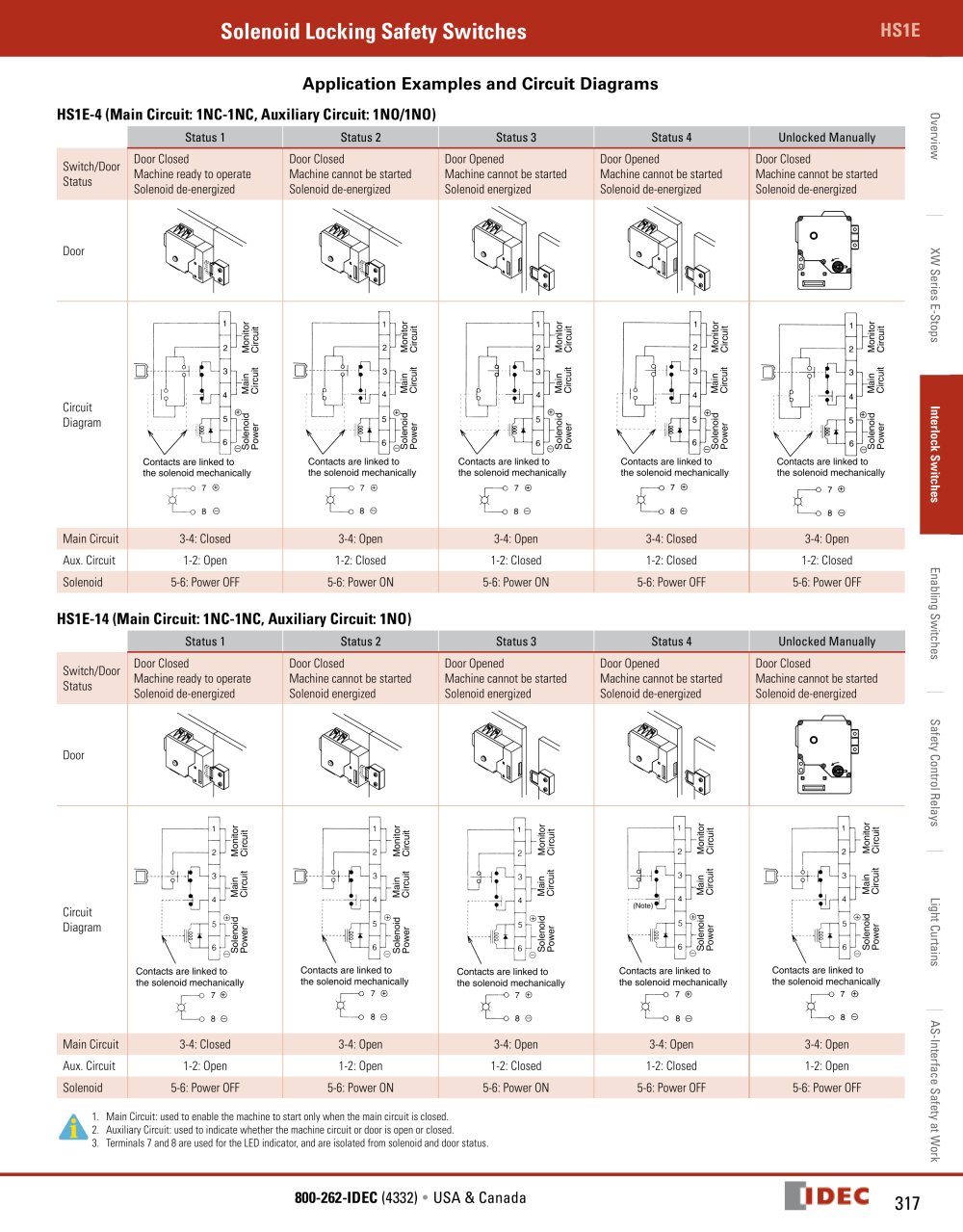

HS1E Series

Accessories, continued

Actuator Angle Adjustment

OverviewX Series E-StopsDoor Interlock SwitchesEnabling SwitchesBarriersAS-Interface Safety at Work Using the screw (M3 hex socket head screw), the actuator angle can be adjusted (refer to the dimensional drawing). Adjustable angle: (0Ëš) to 20ËšThe larger the adjusted angle of the actuator, the smaller the applicable radius of the door opening. ••After installing the actuator, open the door. Then adjust the actuator so that its edge can be inserted properly into the entry slot of the safety switch.Recommended tightening torque: 0.8 N-m (approx. 8.0 kgf-cm) After adjusting the actuator angle, apply loctite or the like to the adjustment screw so as to prevent its loosening.•••

Minimum Radius of Hinged Door

•• • When using the interlock switch for a hinged door, refer to the minimum radius of doors shown below. For the doors with small minimum radius, use angle adjustable actuators (HS9ZA3 or HS9Z-A3S).

When using the HS9Z-A3 Angle Adjustable (vertical) Actuator

• • When the door hinge is on the extension line of the interlock switch surface:
Note: Because deviation or dislocation of hinged door may occur in actual applications, make sure of the correct operation before installation.

HS9Z-A2 Actuator

When the door hinge is on the extension line of the interlock switch surface:
50 mmMinimum Radius 230 mm Minimum Radius Minimum Radius 130 mm When the door hinge is on the extension line of the actuator mounting surface:
Door Hinge HS9Z-A3/A3S Actuator When the door hinge is on the extension line of the actuator mounting surface:
ActuatorHS9Z-A2 Minimum Radius 80 mm Minimum Radius Minimum Radius 400 mm 240 mm Door Hinge
