Door Interlock Switches

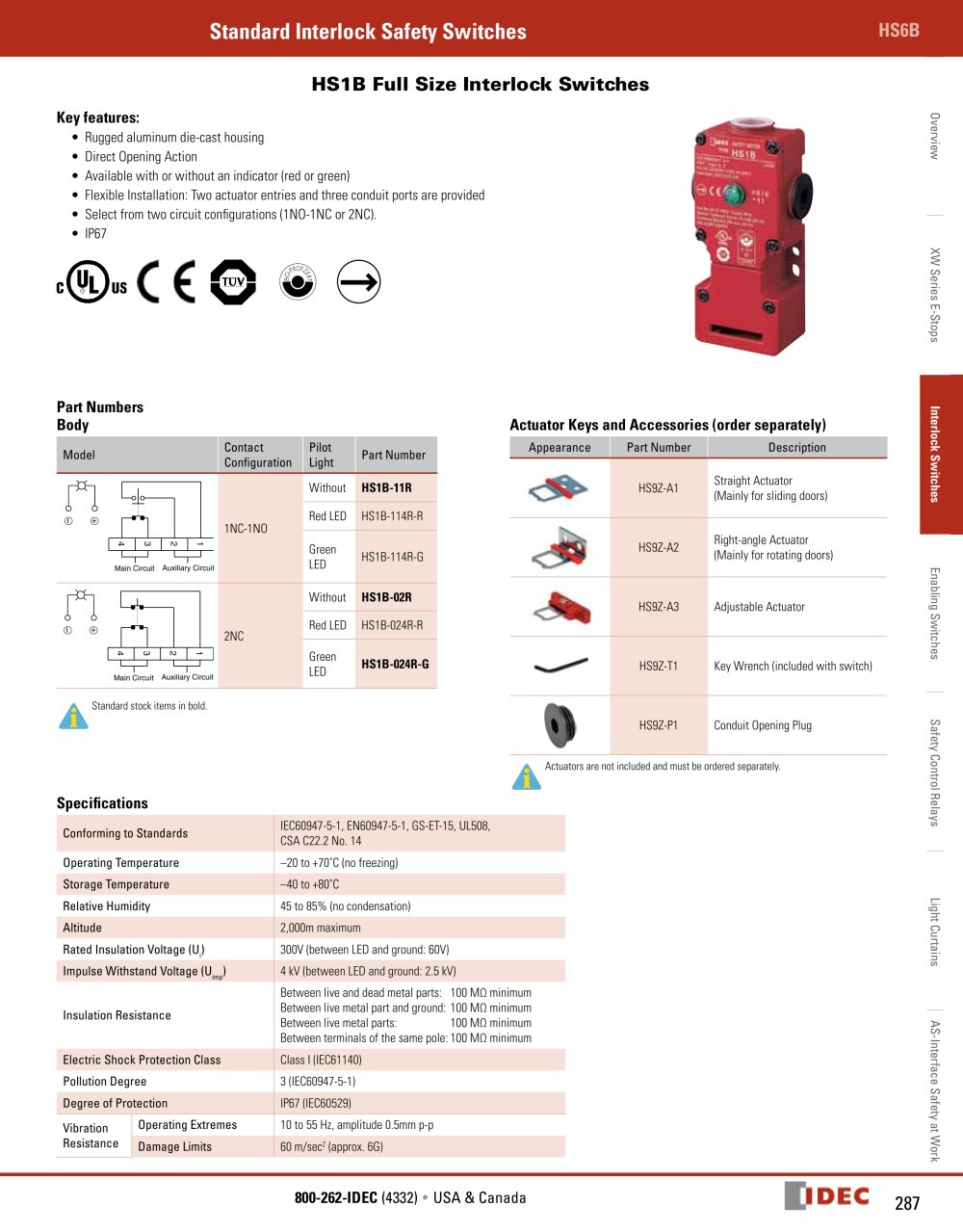

HS1B Series HS1B Series Full Size Interlock Switch

HS1B features:

•••• • • Rugged aluminum die-cast housingDirect Opening Action: If the door is forced open, the contacts are disconnected even if they are welded or stuckAvailable with or without an indicator (red or green) Flexible Installation: Two actuator entries and three conduit ports are provided Select from two circuit confi gurations (1NO-1NC or 2NC). Degree of Contact Protection: IP67

OverviewX Series E-StopsDoor Interlock SwitchesEnabling SwitchesBarriersAS-Interface Safety at Work EN1088EN60947-5-1 IEC60947-5-1 GS-ET-15 BG standard in Germany Direct Opening Action

Part Numbers

Body Part Number Key

ModelContact Confi gurationPilot LightPart Number

HS1B - 02 4 R - R

HS1B (alum. die-cast housing) 1NC-1NOWithout HS1B-11RWith red LEDHS1B-114R-RWith green LEDHS1B-114R-G2NCWithout HS1B-02RWith red LEDHS1B-024R-RWith green LEDHS1B-024R-G Indicator Color R (Red), G (Green) Housing Color R (Red) Indicator Rated Voltage
1. The special key wrench (HS9Z-T1) for removing the cover and manual unlocking is included with the switch.2. Order the actuators separately (not supplied with the switch). 4 (24V DC) Blank (without indicator) Circuit Confi guration 11: 1NO-1NC 02: 2NC

Actuator Keys and Accessories

AppearancePart NumberDescription
Not necessary to specify color if indicator option not chosen. HS9Z-A1Straight Actuator(Mainly for sliding doors) HS9Z-A2Right-angle Actuator(Mainly for rotating doors) HS9Z-A3Adjustable Actuator HS9Z-T1Key Wrench (included with switch) HS9Z-P1Conduit Opening Plug
*Torx is a registered trademark of Camcar Textron.
