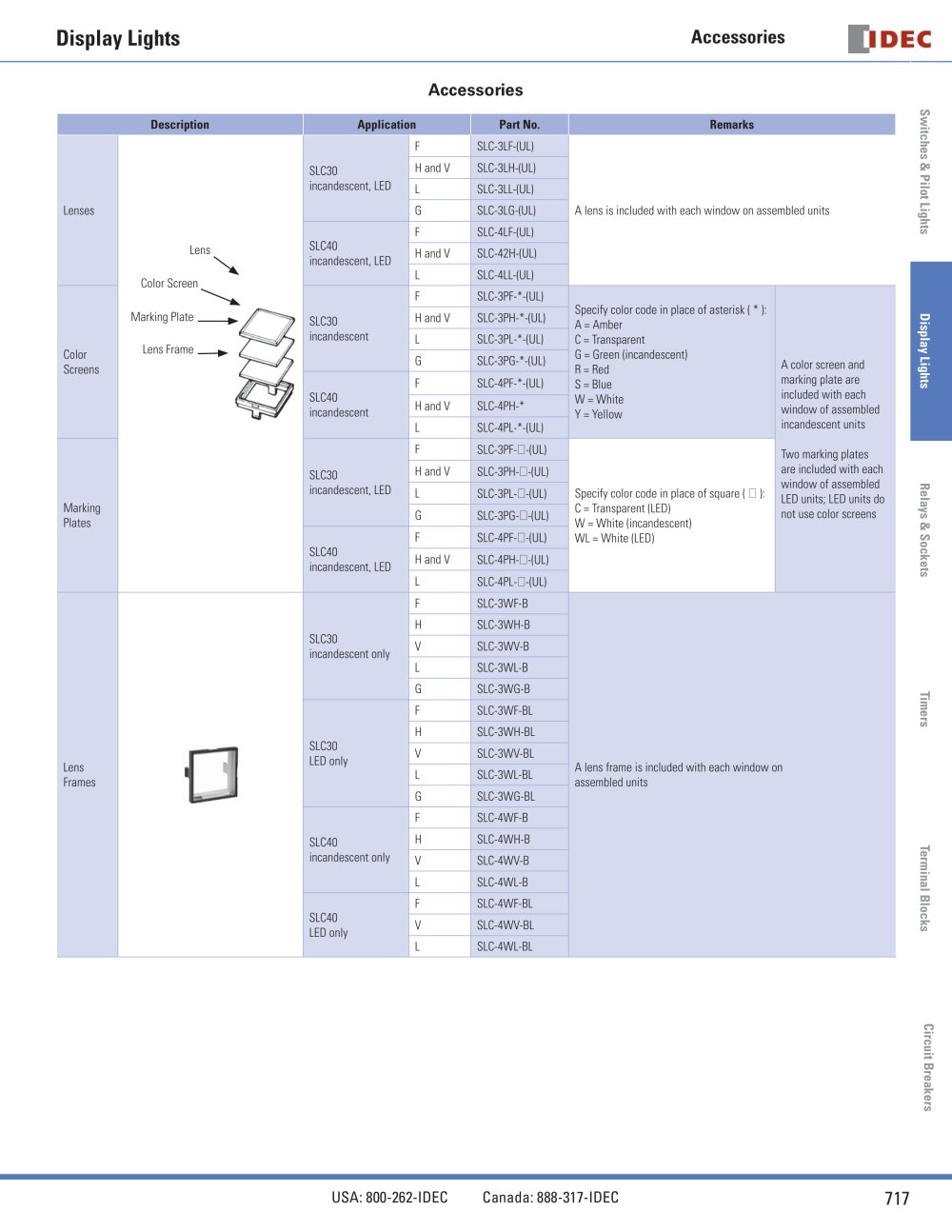

[iDEC

Display Lights

Accessories


Application		Part No.	Remarks
	F	SLC-3LF-(UL)
SLC30	H and V	SLC-3LH-(UL)
incandescent, LED	L	SLC-3LL-(UL)
		SLC-3LG-(UL)	A lens is included with each window on assembled units
SLC40 incandescent, LED	F	SLC-4LF-(UL)
	H and V	SLC-42H-(UL)
	L	SLC-4LL-(UL)
	F	SLC-3PF-*-(UL)
SLC30	H and V	SLC-3PH-*-(UL)	Specify color code in place of asterisk ( * ): A = Amber
incandescent	L	SLC-3PL-*-(UL)	C = Transparent
		SLC-3PG-*-(UL)	G = Green (incandescent) R = Red S = Blue	A color screen and
SLC40 incandescent	F	SLC-4PF-*-(UL)	G = Green (incandescent) R = Red S = Blue	marking plate are included with each window of assembled
	H and V	SLC-4PH-*	W = White Y = Yellow	marking plate are included with each window of assembled
	L	SLC-4PL-*-(UL)	W = White Y = Yellow	incandescent units
	F	SLC-3PF-D-(UL)		Two marking plates
SLC30	H and V	SLC-3PH-D-(UL)		are included with each window of assembled LED units; LED units do
incandescent, LED	L	SLC-3PL-D-(UL)	Specify color code in place of square ( □ ):
		SLC-3PG-D-(UL)	C = Transparent (LED) W = White (incandescent) WL = White (LED)	not use color screens
SLC40 incandescent, LED	F	SLC-4PF-D-(UL)
	H and V	SLC-4PH-D-(UL)
	L	SLC-4PL-D-(UL)
	F	SLC-3WF-B
SLC30 incandescent only		SLC-3WH-B
		SLC-3WV-B
	L	SLC-3WL-B
		SLC-3WG-B
	F	SLC-3WF-BL
SLC30 LED only		SLC-3WH-BL
		SLC-3WV-BL
	L	SLC-3WL-BL	A lens frame is included with each window on assembled units
		SLC-3WG-BL
	F	SLC-4WF-B
SLC40		SLC-4WH-B
incandescent only		SLC-4WV-B
	L	SLC-4WL-B
SLC40 LED only	F	SLC-4WF-BL
	V	SLC-4WV-BL
	L	SLC-4WL-BL

S" I

en'

Description

Lenses

Lens

Color Screen

Marking Plate_^

Lens Frame_»

■<

Color Screens

Marking Plates

ST CD

Lens Frames

1 ^o

i I

5."

CD Q) ST

r ^s
