Selection Guide

Complete Circuit Breakers Catalog - 16475 Circuit Breakers

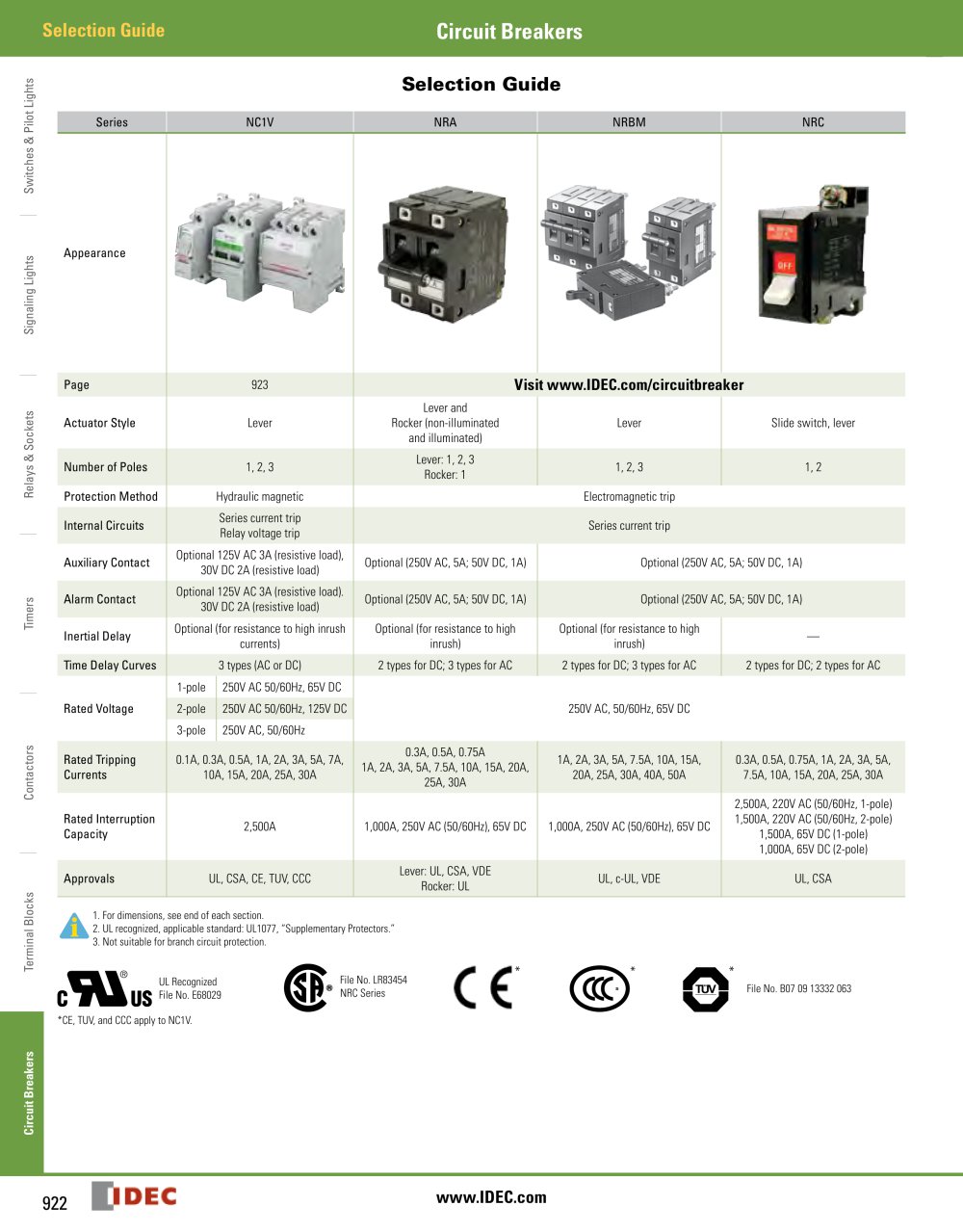

Selection Guide

Series ModelNRANRBMNRCPage 883893900
Switches & Pilot LightsDisplay LightsRelays & SocketsTimersTerminal BlocksCircuit Breakers Appearance Lever andRocker (non-illuminated and illuminated)LeverSlide, lever Actuator Style Number of Poles Lever: 1, 2, 3Rocker: 11, 2, 31, 2 Protection Method Electromagnetic trip Internal Circuits Series current trip Auxiliary Contact Optional (250V AC, 5A; 50V DC, 1A)Optional (250V AC, 5A; 50V DC, 1A) Alarm Contact Optional (250V AC, 5A; 50V DC, 1A)Optional (250V AC, 5A; 50V DC, 1A) Inertia Delay Optional (for resistance to high inrush)Optional (for resistance to high inrush)— Time Delay Curves 2 types for DC; 3 types for AC2 types for DC; 3 types for AC2 types for DC; 2 types for AC Rated Voltage 250V AC, 50/60Hz, 65V DC Rated Tripping Currents 0.3A, 0.5A, 0.75A1A, 2A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A1A, 2A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 40A, 50A0.3A, 0.5A, 0.75A, 1A, 2A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A Rated Interruption Capacity 1,000A, 250V AC (50/60Hz), 65V DC1,000A, 250V AC (50/60Hz), 65V DC2,500A, 220V AC (50/60Hz, 1-pole)1,500A, 220V AC (50/60Hz, 2-pole)1,500A, 65V DC (1-pole) 1,000A, 65V DC (2-pole) Approvals Lever: UL, c-UL, VDERocker: ULUL, c-UL, VDEUL, CSA
1. For dimensions, see end of each section.2. UL recognized, applicable standard: UL1077, “Supplementary Protectors.”3. Not suitable for branch circuit protection. UL RecognizedFile No. E68029 File No. LR83454NRC Series NRA/NRBM Series OnlyLicense #116381/113434
