Circuit Breakers NRBM Series

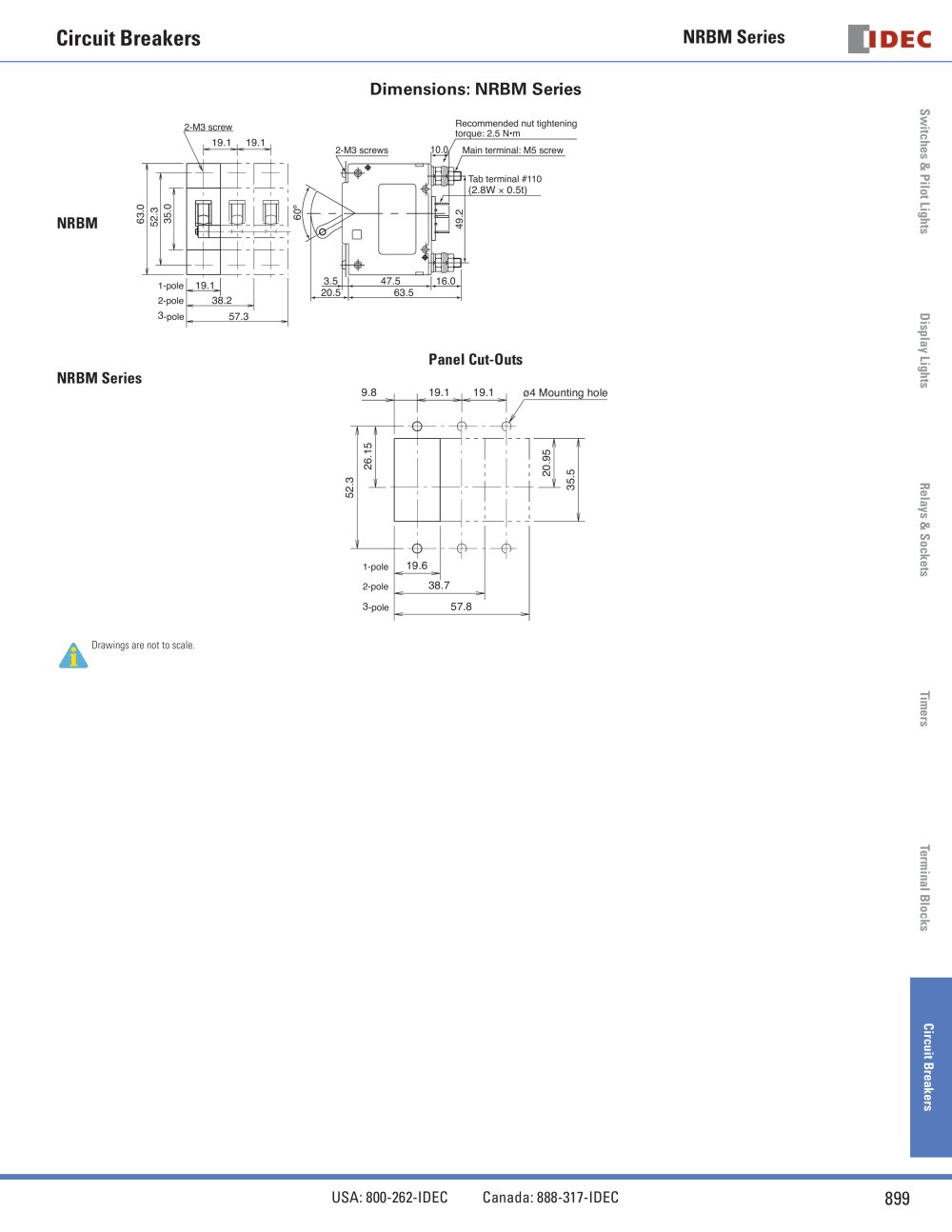

Dimensions: NRBM Series

Switches & Pilot LightsDisplay LightsRelays & SocketsTimersTerminal BlocksCircuit Breakers 2-M3 screw 1-pole2-pole Recommended nut tightening torque: 2.5 N•m 2-M3 screws

10.0

Main terminal: M5 screw Tab terminal #110

(2.8W × 0.5t)

NRBM

60º 49.2 35.052.363.0

19.138.257.3 19.119.1

3.520.547.516.063.5

3

-pole

Panel Cut-OutsNRBM Series

ø4 Mounting hole

20.95 26.1552.3 35.5 1-pole2-pole

19.638.757.8 9.819.119.1

3

-pole

Drawings are not to scale.
